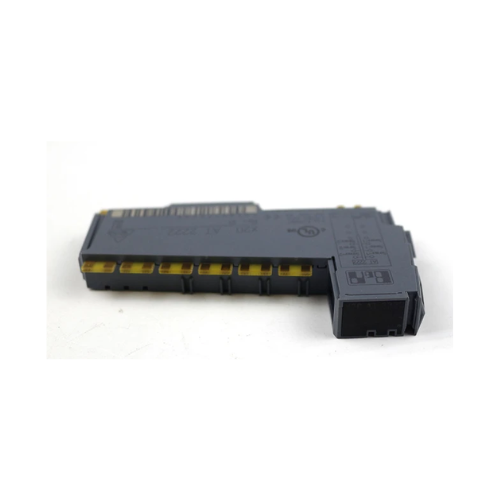

B&R X20AT2222

Overview

The B&R X20AT2222 is a cutting-edge 2-channel temperature input module from the renowned X20 series, engineered for seamless integration with both Pt100 and Pt1000 resistance temperature detectors (RTDs). This versatile module provides exceptional accuracy and reliability for industrial temperature measurement applications. With its ability to support both 2-wire and 3-wire connections, the X20AT2222 offers unparalleled flexibility, making it an ideal choice for a diverse range of industrial automation and process control systems where precise thermal management is critical.

Key Features

• Dual Input Channels: Equipped with two dedicated channels for resistance temperature measurement, ensuring comprehensive monitoring capabilities.
• Broad Sensor Compatibility: Seamlessly interfaces with widely used Pt100 and Pt1000 RTDs, catering to various industry standards.
• Flexible Connection Options: Configurable for both 2-wire and 3-wire connections, offering adaptability to existing and new installations.
• Extensive Measurement Range: Designed to accurately measure temperatures from -200°C to +850°C, suitable for extreme industrial environments.
• High Digital Conversion Resolution: Features a 16-bit digital converter, guaranteeing highly accurate and granular temperature readings.
• Adjustable Filter Time: Configurable filter time between 1 ms and 66.7 ms, allowing optimization for specific application requirements.
• Efficient Conversion Rate: Offers a rapid conversion time of 20 ms for 1 channel and 80 ms for 2 channels (with 50 Hz filter), enabling real-time data acquisition.
• Comprehensive Diagnostics: Integrated LED indicators provide immediate visual feedback on I/O function per channel, operating state, and overall module status, facilitating quick troubleshooting.
• DIN Rail Mounting: Designed for easy and secure mounting on DIN rails, compatible with X20 terminal blocks for streamlined installation.

Technical Specifications

• Model Number: X20AT2222
• Series: X20
• Measurement Current: 250 µA ±1.25%
• Reference Resistance: 4530 Ω ±0.1%
• Insulation Voltage: 500 Veff between channel and bus
• Power Consumption:
  • Bus: 0.01 W
  • Internal I/O: 1.1 W
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95%, non-condensing
• Certifications: CE, UKCA, ATEX Zone 2, UL, DNV, CCS, LR, KR, ABS, BV, KC
• Dimensions: Standard X20 module dimensions
• Weight: Approximately 100 g

Applications

• Industrial Automation: Provides accurate temperature monitoring crucial for precise process control in automated systems.
• Machine Control: Enables seamless integration of temperature sensors into machinery for effective thermal management and operational safety.
• Process Industries: Essential for precise temperature measurements in sensitive sectors such as chemical, pharmaceutical, and food processing, ensuring product quality and safety.
• HVAC Systems: Facilitates robust monitoring and control of environmental temperatures in building management and climate control systems.

Why Choose This Model?

The B&R X20AT2222 stands out as a superior choice for industrial temperature sensing due to its exceptional combination of flexibility, precision, and robustness. Its capacity to support both Pt100 and Pt1000 RTDs, along with configurable 2-wire and 3-wire connections, offers unmatched versatility to meet diverse application demands. The 16-bit resolution guarantees highly accurate and reliable temperature readings, crucial for maintaining optimal process conditions. Furthermore, the extensive suite of international certifications (CE, UKCA, ATEX Zone 2, UL, DNV, CCS, LR, KR, ABS, BV, KC) ensures that the X20AT2222 can be confidently deployed in a wide array of global industrial environments, adhering to stringent safety and quality standards. Its robust diagnostic capabilities, highlighted by LED indicators, provide immediate status updates, simplifying maintenance and ensuring continuous operational efficiency. Choose the B&R X20AT2222 for a dependable, high-performance solution for all your industrial temperature input requirements.
