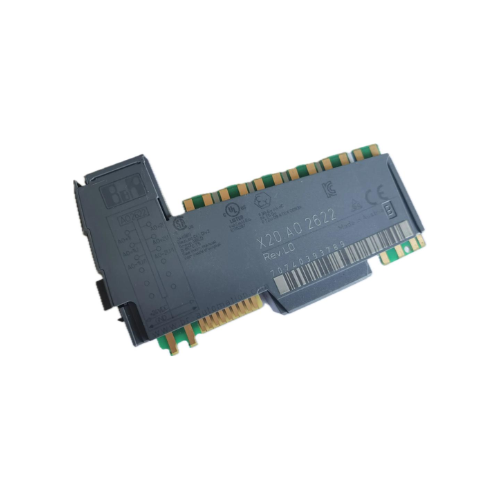

B&R X20AO2622

Overview

The B&R X20AO2622 is a cornerstone component within the esteemed X20 control system, engineered to deliver unparalleled precision and adaptability in industrial automation. This sophisticated dual-channel analog output module empowers engineers and system integrators with two independently configurable analog outputs, capable of generating either voltage or current signals. This inherent flexibility is paramount for a diverse array of industrial applications where precise analog signal control is not just beneficial, but critical for optimal performance. From intricate process control loops to dynamic machine interfaces, the X20AO2622 ensures reliable and accurate signal transmission, making it an indispensable asset in modern industrial environments.

Key Features

• Dual Analog Outputs: Equipped with two distinct output channels, each offering independent configuration for enhanced application versatility.
• Configurable Signal Types: Each channel supports a wide range of signal types, including ±10 V for voltage-sensitive applications and 0 to 20 mA for current-driven devices, catering to diverse industrial requirements.
• High Resolution: Boasting a 13-bit digital converter resolution, this module guarantees exceptional accuracy and precise signal output, crucial for demanding control applications.
• Compact Design: Meticulously engineered with a slim profile, the B&R X20AO2622 optimizes space utilization within control cabinets, allowing for more efficient system layouts.
• Seamless Integration: Designed for effortless integration into the existing B&R X20 system, facilitating rapid deployment and straightforward expansion or customization of automation infrastructure.

Technical Specifications

• Number of Outputs: 2
• Signal Types: Individually configurable per channel:
• Voltage: ±10 V
• Current: 0 to 20 mA
• Digital Converter Resolution: 13-bit
• Output Settling Time: 200 µs (for all outputs)
• Load Resistance:
• Voltage Output: ≥ 1 kΩ
• Current Output: ≤ 500 Ω
• Power Consumption: Approximately 2 W
• Operating Temperature: 0 to 60°C
• Storage Temperature: -25 to 85°C
• Relative Humidity: 5% to 95%, non-condensing
• Dimensions: Standard X20 module size
• Mounting: DIN rail compatible

Applications

• Industrial Automation: Provides precise control for a multitude of analog actuators and devices, ensuring accurate operation in complex automated systems.
• Process Control: Manages critical analog control loops across various process industries, facilitating accurate adjustment of process variables for optimal production outcomes.
• Machine Control: Serves as a vital interface with analog components within machinery, enabling precise control and monitoring for enhanced operational efficiency and safety.
• Building Automation: Regulates analog devices within sophisticated building management systems, including HVAC controls, for efficient and comfortable environmental management.

Why Choose This Model?

The B&R X20AO2622 stands out as a superior solution for any application demanding flexible and precise analog signal outputs. Its unparalleled ability to independently configure each channel for either voltage or current signals, coupled with its high-resolution output, guarantees exceptional adaptability and accuracy across an extensive range of industrial scenarios. The module’s compact footprint, coupled with its seamless integration capabilities within the robust X20 system, positions it as an invaluable asset for engineers looking to expand, upgrade, or customize their automation systems. Investing in the X20AO2622 means investing in reliability, precision, and future-proof adjustability for your industrial control needs.

Order Now

Experience the precision and reliability of the B&R X20AO2622. Benefit from fast shipping and worldwide delivery options to get your essential components when you need them. Explore our comprehensive range of B&R PLC Systems and the broader B&R Category for cutting-edge industrial automation solutions.
