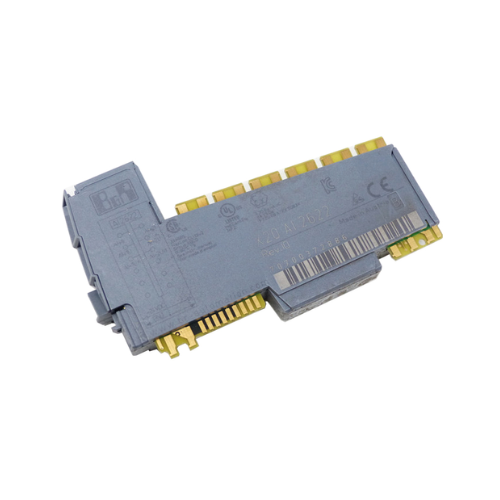

B&R X20AI2622

Overview

The B&R X20AI2622 is a high-performance 2-channel analog input module specifically engineered for the X20 series. This robust module is crucial for applications demanding precise voltage and current signal acquisition within diverse industrial automation environments. Its sophisticated design ensures accurate data collection, making it an indispensable component for systems where reliable analog input is paramount for optimal control and monitoring.

Key Features

• Dual Analog Input Channels: Equipped with two independent analog input channels, this module offers exceptional versatility, supporting both voltage (±10 V) and current (0 to 20 mA, 4 to 20 mA) input types to accommodate a wide array of industrial sensors and signal sources.
• High-Resolution Measurement: Benefit from a 13-bit digital converter resolution, ensuring highly precise and granular measurements. This capability is vital for applications where even slight variations in analog signals can significantly impact system performance or data analysis.
• Configurable Input Filter: Tailor the module's response to specific application demands with a configurable input filter. This feature allows for optimization of signal processing, effectively mitigating noise and ensuring stable, accurate readings in challenging industrial settings.
• Comprehensive Status Indicators: Integrated channel-specific I/O function indicators and a module status indicator provide immediate visual feedback. This enhances diagnostic capabilities, allowing for quick identification and resolution of operational issues, thus minimizing downtime.
• Robust Industrial Design: Designed for demanding operational conditions, the X20AI2622 boasts compliance with industrial vibration resistance standards and operates reliably within a wide temperature range of 0 to 55°C, guaranteeing longevity and consistent performance.

Technical Specifications

• Model: X20AI2622
• Number of Analog Inputs: 2
• Input Signal Types:
  • Voltage: ±10 V
  • Current: 0 to 20 mA, 4 to 20 mA
• Resolution: 13-bit digital converter
• Input Filter: Configurable
• Power Consumption:
  • Bus: 0.01 W
  • Internal I/O: 0.8 W
• Mounting Type: DIN rail ( seamlessly integrates with X20 series racks)
• Ambient Conditions:
  • Operating Temperature: 0 to 55°C
  • Storage Temperature: -25 to 70°C
  • Humidity: 10% to 90% (non-condensing)
  • Vibration Resistance: Compliant with rigorous industrial standards

Applications

The B&R X20AI2622 digital input module is a versatile solution, ideally suited for a multitude of industrial applications:

• Industrial Automation Systems: Serves as a critical interface for accurate data acquisition, ensuring that control systems receive precise analog signals for optimal operation and decision-making.
• Process Monitoring and Control: Enables highly accurate and real-time monitoring of various process parameters using analog sensors, leading to enhanced efficiency and safety in manufacturing and production lines.
• Machine Control Systems: Facilitates the seamless integration of analog sensor data, such as temperature, pressure, or flow rates, directly into machine control systems, thereby improving automation and operational precision.
• Data Logging and Analysis: Provides a reliable means for recording analog measurements over time, which is invaluable for performance analysis, predictive maintenance, and process optimization strategies.
• Energy Management: Can be employed in systems that monitor energy consumption and other analog inputs to optimize power usage and reduce operational costs.

Why Choose This Model?

The B&R X20AI2622 stands out as an exceptional choice for any industrial application requiring dependable and precise analog input capabilities. Its ability to flawlessly handle both voltage and current signals, combined with a high-resolution 13-bit digital converter, guarantees unparalleled accuracy in data acquisition. The configurable input filter further enhances its adaptability, allowing you to fine-tune signal processing to meet the exact requirements of your specific application. This module's robust construction and reliable performance ensure long-term operational stability and minimal maintenance, making it a valuable asset for enhancing the efficiency and control of your industrial automation systems. Opt for the X20AI2622 to future-proof your operations with a component that delivers consistent, high-fidelity data.

Order Now

Experience swift processing with fast shipping and worldwide delivery options. Secure your B&R X20AI2622 digital input module today to elevate your industrial automation capabilities.
