B&R X20AI1744

Overview

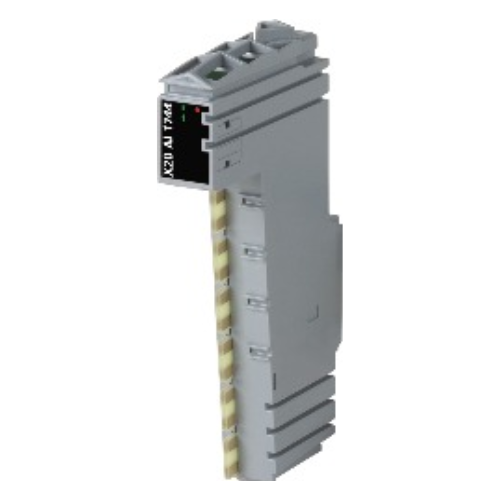

The B&R X20AI1744 is a state-of-the-art 4-channel analog input module, part of B&R's renowned X20 I/O series, meticulously engineered for exceptional precision in industrial automation environments. This module excels at acquiring robust and accurate current signals within the standard 4–20 mA range, making it an indispensable component for critical control applications. Its advanced design ensures high-resolution measurement (16-bit) alongside superior channel-to-channel and channel-to-bus isolation, guaranteeing signal integrity and system reliability, even in electrically noisy settings. Whether you are upgrading an existing system or designing a new one, the X20AI1744 offers a compact, high-performance solution for demanding data acquisition tasks.

Key Features

• 4 Analog Current Inputs: Precisely monitor up to four independent current signals.
• 4–20 mA Input Range: Perfectly suited for compatibility with a wide array of industrial sensors and transmitters.
• 16-bit High Resolution: Delivers exceptionally accurate and granular data for precise process control and analysis.
• Robust Isolation: Features galvanic isolation, both channel-to-channel and channel-to-bus, safeguarding against interference and ensuring reliable operation.
• Differential Input Type: Enhances noise rejection and signal quality.
• Advanced Diagnostics: Equipped with short-circuit and wire break detection for proactive system monitoring and simplified troubleshooting.
• DIN Rail Mounting: Facilitates easy and secure installation using standard X20 terminal blocks, streamlining integration into existing panels.
• Wide Operating Temperature: Functions reliably across ambient temperatures from -25°C to +60°C, suitable for diverse industrial settings.

Technical Specifications

• Model Number: X20AI1744
• Series: X20
• Channels: 4 analog current inputs
• Input Range: 4–20 mA
• Resolution: 16-bit
• Input Impedance: Approximately 250 Ω
• Update Rate: Typically 1 ms per channel, ensuring near real-time data acquisition.
• Isolation: Yes, galvanic isolation per channel, enhancing system safety and data integrity.
• Power Supply: 24 VDC
• Mounting: DIN rail
• Operating Temperature: -25°C to +60°C
• Certifications: CE, UL, RoHS compliant, ensuring adherence to international standards.
• Weight: Approximately 110 g

Applications

• Process Control: Essential for reading current loops from critical pressure, temperature, and flow sensors, ensuring optimal process efficiency and safety.
• Factory Automation: Reliably monitors analog feedback from various industrial machinery and equipment, enhancing operational awareness and control.
• Water/Wastewater Systems: Seamlessly integrates with level and chemical sensors for precise monitoring and management of treatment processes.
• OEM Panels: Its compact and modular design makes it an ideal choice for custom machinery and specialized original equipment manufacturer applications.
• Energy Management: Critical for monitoring energy consumption in industrial settings by integrating with current transformers and other measurement devices.
• Building Automation: Provides accurate data for HVAC systems, lighting control, and environmental monitoring, contributing to energy efficiency.

Why Choose This Model?

Opting for the B&R X20AI1744 means choosing unparalleled accuracy, reliability, and ease of integration for your industrial automation needs. Its industry-leading 16-bit resolution guarantees that every signal is captured with extreme precision, allowing for finer control and more informed decision-making. The robust galvanic isolation offers superior protection against electrical noise and ground loops, ensuring uninterrupted operation and extending the lifespan of your valuable equipment. Furthermore, its compact footprint and seamless compatibility within the B&R X20 control system ecosystem make installation and configuration straightforward, reducing downtime and operational complexities. With features like advanced diagnostics for short-circuit and wire break detection, the X20AI1744 provides peace of mind through proactive system management, making it an intelligent investment for future-proof automation solutions.

Order Now

Enhance your industrial automation capabilities with the B&R X20AI1744 4-channel analog input module. This high-performance component is available for fast worldwide shipping, ensuring you receive your critical parts promptly. Leverage its precision, reliability, and robust design to optimize your operations and achieve superior control. Contact us today or place your order online to experience the B&R difference.
