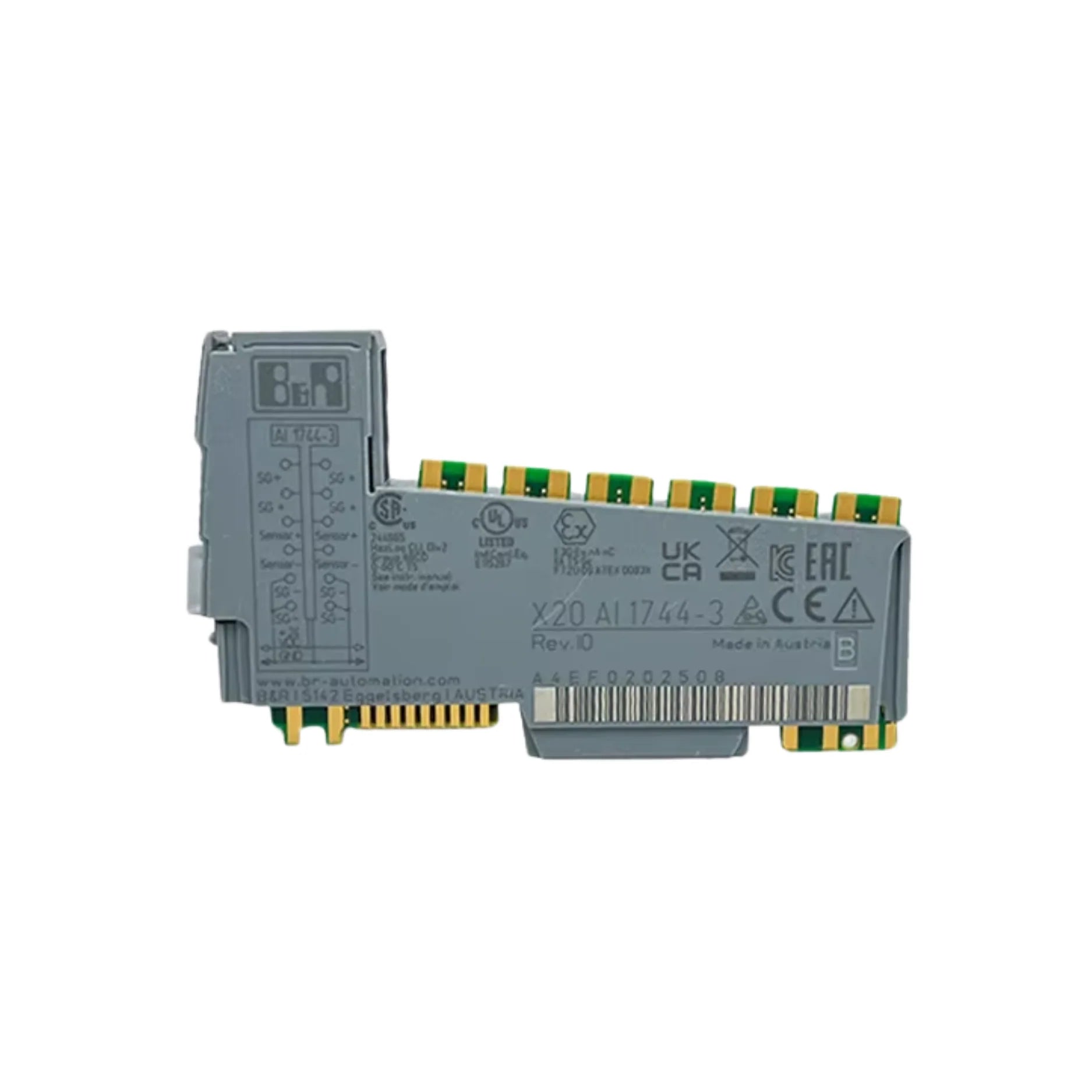

B&R X20AI1744-3

Overview

The B&R X20AI1744-3 stands as an advanced analog input module meticulously engineered for highly accurate measurement applications, particularly those involving full-bridge strain gauges. Its exceptional 24-bit resolution guarantees superior data acquisition, making it an indispensable component for demanding industrial environments where precision is paramount. This module is not just about accuracy; it's about delivering reliable and consistent performance in the most critical sensing tasks. Designed for seamless integration into existing B&R X20 systems, it extends the capabilities of your automation infrastructure by providing granular insights into physical parameters like force, weight, and stress.

Key Features

• Input Type: Specifically designed with 1 full-bridge strain gauge input, optimized for high-fidelity measurements.
• Resolution: Boasts an outstanding 24-bit resolution, ensuring micro-level precision and accuracy in all readings.
• Data Output Rate: Offers versatile configurability from 0.1 Hz up to an impressive 7.5 kHz, adapting to various application speeds and data logging requirements.
• Special Operating Modes: Enhances functionality with support for synchronous mode and advanced multiple sampling techniques for improved data integrity.
• Filter Level: Provides a configurable filter level, allowing for optimal signal processing and noise reduction tailored to specific environmental conditions.
• Compatibility: Universally compatible with both 4-wire and 6-wire strain gauge load cells, offering broad application flexibility.
• ATEX Compliance: Certified for use in hazardous (potentially explosive) environments, ensuring safety and reliability in challenging industrial settings.

Technical Specifications

• Model Number: X20AI1744-3
• Series: X20
• Input Signal Range: Supports a wide range from 2 to 256 mV/V, accommodating various sensor sensitivities.
• Excitation Voltage: Provides a stable 5.5 VDC with a maximum current of 65 mA for energizing strain gauges.
• Sampling Rate: Adjustable from 0.1 to 7500 samples per second, facilitating both slow-changing and dynamic measurements.
• Signal-to-Noise Ratio: Achieves a robust 60 dB, indicative of excellent signal clarity and minimal interference.
• Input Impedance: Ranges from 85 to 5000 Ω, offering compatibility with diverse strain gauge configurations.
• Operating Voltage: Requires standard 24 VDC for power, ensuring compatibility with industrial power supplies.
• Dimensions (H x W x L): Compact design with 9.9 cm height, 1.25 cm width, and 7.7 cm length for efficient space utilization.
• Weight: Approximately 0.2 kg, making it lightweight and easy to handle during installation.
• Certifications: ATEX compliant, affirming its suitability and safety for operation in hazardous areas.

Applications

The B&R X20AI1744-3 module is engineered to excel in a diverse array of demanding industrial applications where precise strain and force measurements are critical:

• Industrial Automation: Facilitates highly accurate force and weight measurements within complex manufacturing processes, optimizing quality control and process efficiency.
• Material Testing: Provides accurate strain measurements essential for rigorous quality control and characterization of materials in R&D and production environments.
• Structural Monitoring: Instrumental in monitoring stress and strain levels in critical infrastructure and machinery, contributing to enhanced safety assessments and predictive maintenance strategies.
• OEM Equipment: An ideal component for integration into specialized machinery and custom-built systems that require reliable and high-precision strain measurement capabilities.

Why Choose This Model?

The B&R X20AI1744-3 distinguishes itself through a combination of cutting-edge technology and robust design, offering compelling advantages for your measurement needs:

• High Precision: Its industry-leading 24-bit resolution guarantees exceptionally accurate and reliable measurements, providing confidence in your data.
• Flexible Configuration: With adjustable data output rates and configurable filter settings, the module can be precisely tailored to meet the specific demands of a wide range of applications, maximizing efficiency and accuracy.
• Robust Design: ATEX compliance ensures that this module can be safely and reliably deployed in hazardous environments, offering peace of mind and operational continuity in challenging conditions.
• Versatile Compatibility: Seamlessly supports both 4-wire and 6-wire strain gauge load cells, providing unparalleled versatility and simplifying integration with various sensor types.
• Trusted Brand: As a B&R product, the X20AI1744-3 benefits from B&R's reputation for innovation, quality, and reliability in industrial automation.

Order Now

Elevate your measurement capabilities with the B&R X20AI1744-3 Analog Input Module. This high-precision device is available for immediate worldwide shipping, ensuring prompt delivery to your location.

Explore our full range and return to B&R PLC Systems to discover scalable and high-performance PLC solutions designed for precise control in industrial automation.

Alternatively, return to the B&R Category to browse the complete B&R portfolio, which includes state-of-the-art HMIs, advanced motion control systems, powerful servo drives, and much more, all available for global shipping.
