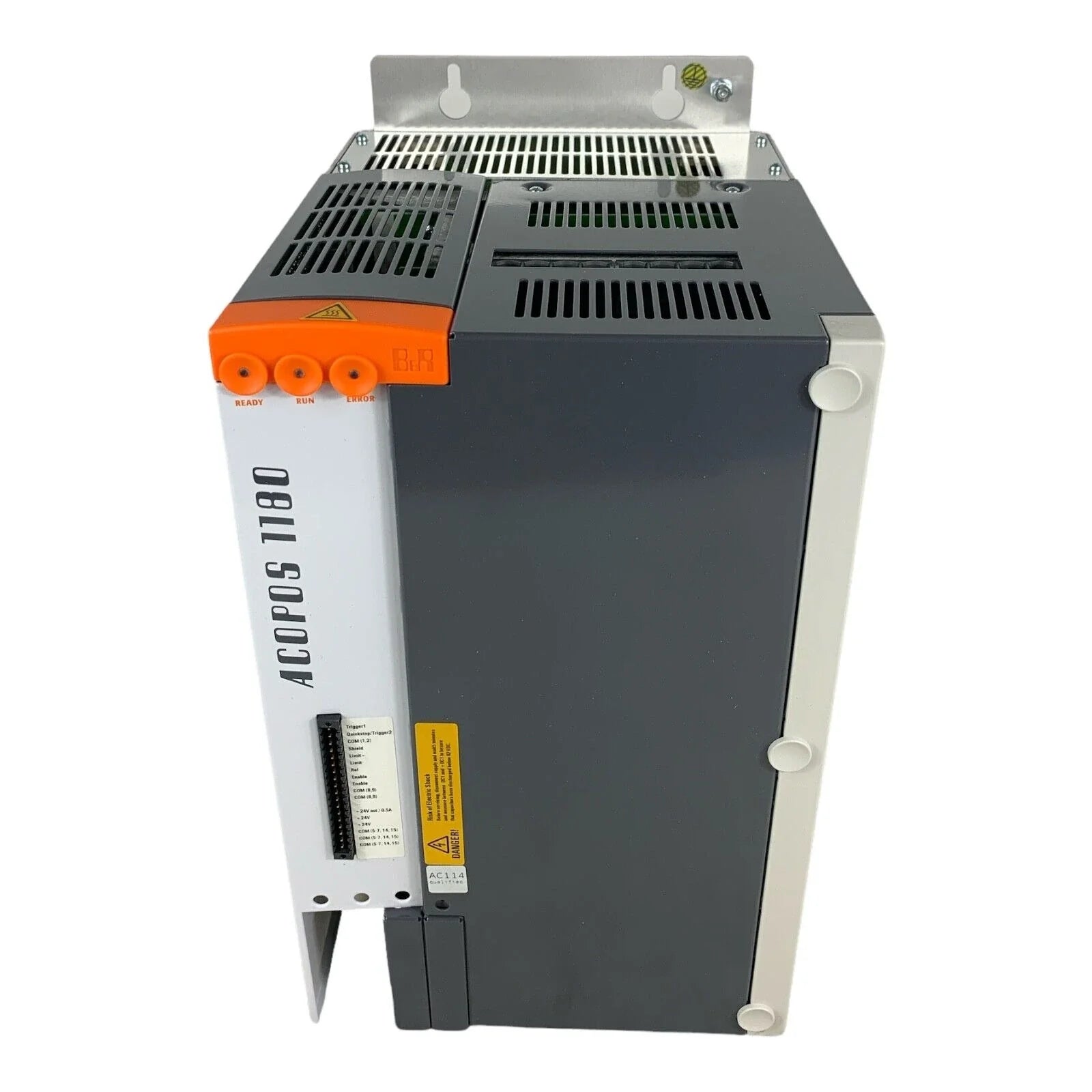

B&R 8V1180.00-2

Overview

Unlock the full potential of your industrial automation systems with the B&R 8V1180.00-2 ACOPOS Servo Drive. Engineered for supreme precision and efficiency, this high-performance servo drive is the cornerstone of advanced motion control. Designed to seamlessly operate within a 3-phase 400-480 V AC electrical environment, it delivers a continuous output of 19 A and an impressive 9 kW of power. This robust capacity makes it exceptionally suited for the most demanding applications that necessitate high-speed and high-torque capabilities, ensuring your machinery operates with unparalleled accuracy and responsiveness. Furthermore, the 8V1180.00-2 comes equipped with both an integrated line filter and a braking resistor, crucial components that not only streamline installation but also significantly enhance the drive's overall functionality and safety profile.

Key Features

• Powerful Input Voltage: Operates efficiently with a 3x 400-480 V AC ±10% input, ensuring compatibility with standard industrial power supplies.
• High Continuous Output: Delivers a steadfast 19 A of continuous output current, providing ample power for sustained operations.
• Robust Power Output: Boasts a substantial 9 kW power output, ideal for applications requiring considerable strength and speed.
• Integrated Line Filter: Compliant with EN 61800-3, category C3, this built-in feature minimizes electromagnetic interference, ensuring stable performance.
• Integrated Braking Resistor: Features a high-capacity braking resistor with a peak power of 14 kW and a continuous power of 0.4 kW, enhancing safety and control during deceleration.
• Expandable Functionality: Equipped with 4 dedicated slots for plug-in modules, allowing for tailored customization and future system enhancements.
• Global Certifications: Certified with CE, UL (cULus E225616), KC, and EAC, guaranteeing compliance with international safety and quality standards.

Technical Specifications

• Mains Input Voltage: 3x 400-480 V AC ±10%
• Frequency: 50/60 Hz ±4%
• Installed Load: Max. 17 kVA
• Inrush Current at 400 V AC: 13 A
• DC Bus Capacitance: 940 µF
• 24 V DC Power Supply Input Voltage: 24 V DC +25% / -20%
• Power Dissipation: Approximately 500 W at nominal power without braking resistor
• Braking Resistor:
  • Peak Power: 14 kW
  • Continuous Power: 0.4 kW
  • Minimum Resistance: 15 Ω
• Operating Temperature:
  • Nominal: 5°C to 40°C
  • Maximum: Up to 55°C with derating
• Dimensions: 200 mm (W) x 375 mm (H) x 234 mm (D)
• Weight: 10.1 kg

Applications

• Industrial Automation: Provides unparalleled precision and reliable control for the most intricate machinery and high-speed production lines, optimizing output and reducing downtime.
• Robotics: Ensures highly accurate and repeatable motion control in sophisticated robotic systems, vital for tasks requiring delicate manipulation or high-speed execution.
• Material Handling: Facilitates the supremely efficient and smooth operation of conveyors, automated guided vehicles (AGVs), and complex sorting equipment, enhancing logistical throughput.
• Packaging Machinery: Supports perfectly synchronized and dynamic control for all phases of packaging processes, from filling to sealing, ensuring consistency and speed.

Why Choose This Model?

The B&R 8V1180.00-2 stands out as a superior choice for several compelling reasons, making it an indispensable asset for modern industrial operations. Its capacity for high performance means it consistently delivers robust power handling, adeptly managing the most demanding applications with unwavering reliability. The inclusion of integrated components, specifically the built-in line filter and braking resistor, not only simplifies the installation process by reducing external wiring and component needs but also significantly enhances the overall safety and operational integrity of your systems. Furthermore, its intelligent design incorporates four slots for plug-in modules, offering unparalleled opportunities for expandable functionality. This allows for bespoke tailoring to meet unique application requirements, ensuring your system is always optimized for the task at hand. Lastly, the comprehensive protection mechanisms, encompassing overload, short-circuit, and ground fault protection, provide peace of mind, safeguarding your investment and ensuring continuous, uninterrupted operation.

Order Now

The B&R 8V1180.00-2 high-performance ACOPOS Servo Drive is available for immediate worldwide shipping. Elevate your motion control capabilities today. Explore our extensive selection of B&R ACOPOS Servo Drives, including models like ACOPOS1016, ACOPOS1022, ACOPOS1045, and ACOPOS1180. Discover more about our B&R ACOPOS Servo Drive Systems for cutting-edge solutions in precision and efficient industrial automation.
