B&R 8BVI0330HWS0.000-1

Overview

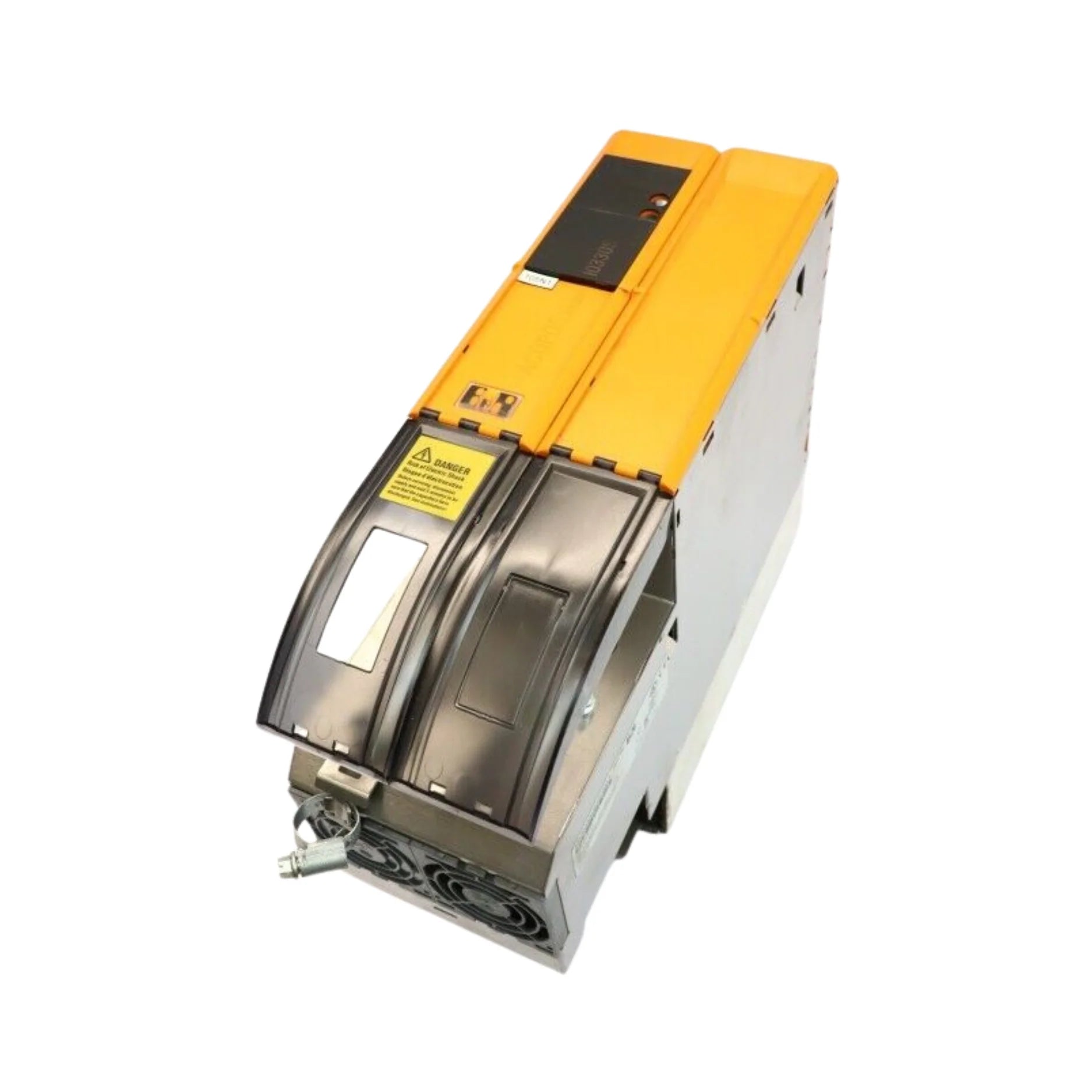

The B&R 8BVI0330HWS0.000-1 ACOPOSmulti Inverter Module stands as a pinnacle of precision and efficiency in industrial automation. Engineered by B&R, a leader in advanced motion control, this high-performance module is meticulously designed to provide unparalleled control within demanding industrial environments. With a robust continuous current capacity of 33 A and full support for high voltage applications, the 8BVI0330HWS0.000-1 is an indispensable component for sophisticated motion control tasks. Its intelligent wall mounting design not only optimizes space utilization but also ensures flexible and straightforward installation across a diverse range of industrial settings.

Key Features

• Continuous Current Capacity: Delivers a consistent 33 A, ensuring reliable power delivery for continuous operation.
• High Voltage Operation: Boasts a nominal DC bus voltage of 750 VDC, catering to high-power industrial applications.
• Space-Saving Wall Mounting Design: Facilitates efficient use of available space and offers versatile installation options.
• Integrated Motor Holding Brake Connection: Provides a seamless and direct interface for motor holding brakes, enhancing safety and control.
• Expandable Functionality: Equipped with slots for up to 2 ACOPOSmulti plug-in modules, allowing for customized expansion and enhanced capabilities.
• Comprehensive Protective Measures: Incorporates advanced protection mechanisms, including overload, short-circuit, and ground fault protection, safeguarding both the module and connected equipment.

Technical Specifications

• Model Number: 8BVI0330HWS0.000-1
• Series: ACOPOSmulti
• Cooling and Mounting Type: Wall mounting
• DC Bus Voltage: Nominal 750 VDC
• Continuous Power Consumption: 24.4 kW
• DC Bus Capacitance: 990 µF
• 24 VDC Power Supply Input Voltage: 25 VDC ±1.6 V
• Motor Connection:
  • Continuous Power: 24 kW
  • Continuous Current: 33 A
  • Peak Current: 83 A
  • Maximum Output Frequency: 598 Hz
• Motor Holding Brake Connection:
  • Output Voltage: 24 VDC +5.8% / -0%
  • Continuous Current: 4.2 A
• Enable Inputs: 2, with sink circuit and electrical isolation
• Trigger Inputs: 2, with sink circuit and electrical isolation
• Operating Temperature: Nominal 5°C to 40°C; maximum up to 55°C with derating
• Installation Elevation: Nominal 0 to 500 m; maximum up to 4000 m with derating
• Degree of Protection: IP20
• Dimensions: 106.5 mm (W) x 317 mm (H) x 263 mm (D)
• Weight: Approximately 5.4 kg
• Certifications: CE, UL, EAC, KC

Applications

• Industrial Automation: Provides exceptionally precise and reliable control for complex machinery, robotic systems, and intricate production lines, optimizing operational efficiency.
• Robotics: Ensures highly accurate and responsive motion control strategies in robotic applications, contributing to enhanced performance and repeatability.
• Material Handling: Facilitates the efficient and synchronized operation of conveyor systems, sorting equipment, and automated guided vehicles, streamlining logistics.
• Packaging Machinery: Supports advanced synchronized control capabilities for high-speed packaging processes, minimizing downtime and maximizing throughput.

Why Choose This Model?

Choosing the B&R 8BVI0330HWS0.000-1 ACOPOSmulti Inverter Module means investing in superior performance and reliability. This module is engineered to handle the most demanding applications with its robust power delivery and high voltage capabilities. Its innovative wall mounting design not only saves valuable floor space but also simplifies installation, making it versatile for various industrial setups. The ability to integrate up to two ACOPOSmulti plug-in modules offers unparalleled flexibility, allowing you to tailor the unit's functionality precisely to your application's requirements. Furthermore, comprehensive built-in protective measures ensure reliable and safe operation, safeguarding your equipment and providing peace of mind. For an advanced, adaptable, and secure solution in motion control, the B&R 8BVI0330HWS0.000-1 is the definitive choice.
