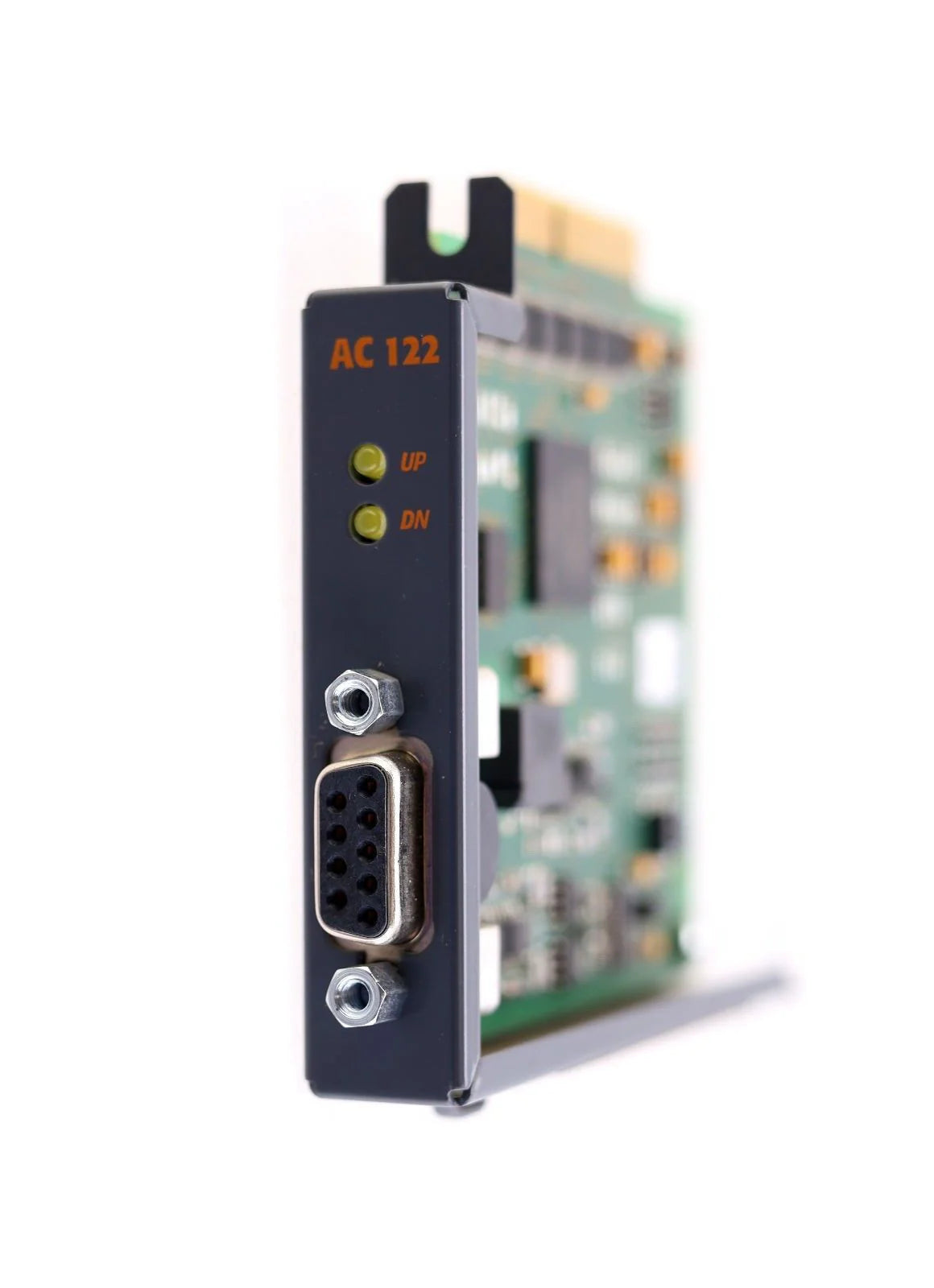

B&R 8AC122.60-3

Overview

The B&R 8AC122.60-3 is a state-of-the-art CAN interface plug-in module meticulously engineered for integration with ACOPOS servo drives. This essential component facilitates seamless, high-speed communication and precise configuration, ensuring optimal performance across a myriad of industrial automation applications. Designed for reliability and ease of use, it features a configurable node number via an integrated switch, offering unparalleled flexibility in system setup. Experience enhanced operational efficiency and robust data exchange with this pivotal B&R module.

Key Features

• Advanced CAN Interface: Enables effortless communication and streamlined configuration of ACOPOS servo drives, fostering a highly responsive control environment.
• Configurable Node Number: Provides exceptional adaptability with an easily adjustable node number via an integrated switch, simplifying network integration.
• Secure Module-Side Connection: Equipped with a robust 9-pin male DSUB connector, guaranteeing secure and stable connectivity within your system.
• Real-Time Status Indicators: Features intuitive RXD/TXD LEDs, offering immediate visual confirmation of communication status for efficient troubleshooting and monitoring.
• High Baud Rate: Supports an impressive 500 kbit/s, ensuring rapid data transmission and minimal latency in demanding industrial applications.
• Superior Electrical Isolation: Incorporates advanced electrical isolation to significantly enhance safety and maintain impeccable signal integrity, protecting your valuable equipment.
• Extended Maximum Distance: Facilitates reliable communication over distances of up to 60 meters, providing greater flexibility in system layout.
• External Bus Terminating Resistor: Requires external wiring for proper termination, ensuring signal quality and preventing data reflections critical for stable network operation.

Technical Specifications

• Module Type: ACOPOS plug-in module
• Slot Compatibility: Specifically designed for Slot 1 in ACOPOS servo drives, ensuring perfect fit and function.
• Power Consumption: Optimized for efficiency with a maximum power consumption of just 0.7 W.

Certifications:

• CE: Yes
• UL (cULus E225616): Yes
• KC: Yes

Ambient Conditions:

• Operating Temperature:
  • Nominal: 5 to 40°C
  • Maximum: Up to 55°C
• Storage Temperature: -25 to 55°C
• Transport Temperature: -25 to 70°C
• Relative Humidity:
  • Operation: 5 to 85%
  • Storage: 5 to 95%
  • Transport: Up to 95% at 40°C

Applications

• Industrial Automation: Revolutionizes smooth communication between ACOPOS servo drives and sophisticated control systems, leading to more efficient and synchronized operations.
• Motion Control Systems: Essential for precise drive configuration and real-time monitoring, enabling highly accurate and repeatable motion sequences.
• Robotics: Guarantees stable and exceptionally reliable communication, which is paramount for advanced robotic motion control applications, enhancing precision and safety.

Why Choose the B&R 8AC122.60-3?

The B&R 8AC122.60-3 stands out as a high-performance, robust CAN interface module specifically engineered to elevate the capabilities of your ACOPOS servo drives. Its unique blend of configurable node settings, resilient design, and adherence to stringent international certifications makes it an indispensable asset for any modern industrial setup. This module is not merely a component; it is a critical solution developed to significantly enhance existing industrial automation systems by providing efficient, stable, and highly reliable communication. Opting for the 8AC122.60-3 means investing in superior control, improved system uptime, and a future-proof foundation for your industrial operations.

Order Now

Unlock the full potential of your ACOPOS servo drives. Benefit from our fast shipping and worldwide delivery options to get your B&R 8AC122.60-3 module quickly and efficiently. Expand your system's capabilities today.
