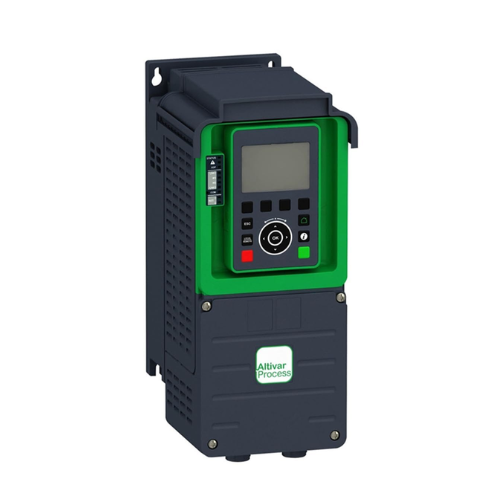

Schneider ATV930U75N4

Overview

Elevate your industrial operations with the Schneider Electric ATV930U75N4, a cutting-edge 75 kW (100 HP) variable speed drive engineered for the most demanding applications. Part of the innovative Altivar Process ATV930 series, this drive redefines efficiency, precision, and connectivity in motor control. Designed to seamlessly integrate into complex industrial environments, the ATV930U75N4 offers unparalleled performance for both asynchronous and permanent magnet motors, ensuring optimal energy utilization and extended equipment lifespan. Experience a new benchmark in control technology with its embedded EMC filter, comprehensive Ethernet communication capabilities, and integrated robust safety features.

Key Features

• Dynamic Power Delivery: Experience superior motor control with a commanding 75 kW (100 HP) power rating.
• Flexible Voltage Input: Adaptable to 3-phase systems, operating efficiently within a 380–480V ±10% input range.
• Universal Motor Compatibility: Expertly manages both asynchronous and highly efficient synchronous (PM) motor types.
• Expansive Frequency Control: Provides a broad output frequency spectrum, precisely adjustable from 0.1 to 599 Hz.
• Versatile Control Strategies: Equipped with a suite of advanced control modes including traditional V/f (Voltage/Frequency), sophisticated Sensorless Flux Vector Control (SFVC), and high-accuracy Flux Vector Control with encoder feedback.
• Integrated EMC Compliance: Features a built-in Class C3 EMC filter, ensuring harmonious operation within sensitive electromagnetic environments.
• Advanced Communication Suite: Boasts native Modbus TCP and EtherNet/IP for seamless network integration, complemented by an embedded Web Server for intuitive remote configuration, monitoring, and diagnostic capabilities.
• Enhanced Safety Protocol: Incorporates Safe Torque Off (STO) functionality, significantly boosting operational safety by preventing unexpected motor startup.
• Intelligent Monitoring & Diagnostics: Provides sophisticated tools for tracking energy consumption and comprehensive fault management, enabling proactive maintenance and system optimization.

Technical Specifications

• Model Identifier: ATV930U75N4
• Product Series: Altivar Process ATV930
• Motor Output Power: 75 kW (100 HP)
• Nominal Output Current: 145 A
• Maximum Transient Current: 218 A (Sustained for 60 seconds)
• Switching Frequency: Default 4 kHz (User-adjustable from 2.5 to 8 kHz)
• Environmental Protection Rating: IP21
• Operational Temperature Range: -15°C to +50°C (without performance degradation)
• Altitude Capability: Up to 1000 m (without performance reduction)
• Cooling Mechanism: Integrated fan-based thermal management
• Physical Dimensions (W x H x D): Approximately 315 mm x 745 mm x 310 mm
• Product Weight: Approximately 54 kg

Applications

The Schneider Electric ATV930U75N4 is engineered for superior performance across a diverse range of critical industrial applications, including:

• Water & Wastewater Treatment Facilities: Optimizing pump and aeration processes for enhanced efficiency.
• HVAC Systems: Providing precise control for large-scale ventilation and air conditioning units.
• Pumps, Compressors, and Fans: Delivering energy savings and extended lifespan for a variety of fluid and air handling equipment.
• Heavy-Duty Industrial Machinery: Ensuring robust and reliable motor control for demanding manufacturing and processing equipment.

Why Choose This Model?

Opting for the Schneider Electric ATV930U75N4 means investing in a future-ready solution that combines engineering excellence with practical innovation. This drive offers more than just motor control; it delivers a complete solution for optimizing industrial processes. Its intelligent design provides highly reliable and exceptionally precise motor control, adapting seamlessly to varying load conditions. With built-in Ethernet connectivity and an intuitive web-based interface, remote access, diagnostics, and configuration are streamlined, reducing downtime and operational costs. Furthermore, its integrated safety features and comprehensive EMC compliance ensure secure and stable operation within any industrial setting. Specifically engineered for high-power, continuous operation scenarios, the ATV930U75N4 guarantees durability and consistent performance when it matters most, making it an indispensable asset for modern industrial infrastructure.

Order Now

Secure this high-performance variable speed drive for your operations today. Benefit from our fast shipping services and worldwide delivery options to get your equipment promptly. For more Schneider Electric solutions, explore our extensive range. Enhance your industrial capabilities and ensure operational excellence.
