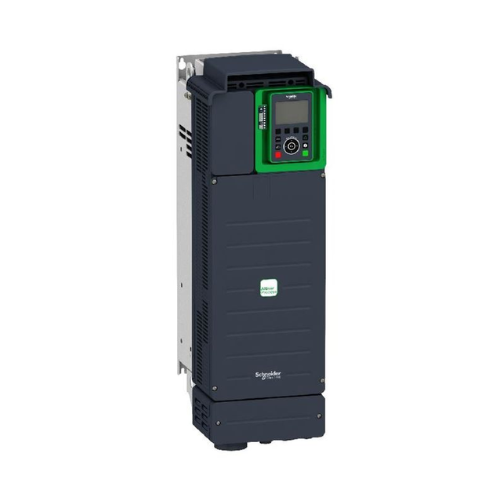

Schneider Electric ATV930D30N4

Overview

Experience unparalleled control and efficiency with the Schneider Electric ATV930D30N4, a formidable variable speed drive from the acclaimed Altivar Process ATV930 series. Engineered to thrive in the most rigorous industrial settings, this drive brings together robust performance, intelligent connectivity, and significant energy optimization. Operating seamlessly with a 3-phase input of 380–480 V and boasting a substantial 30 kW (40 HP) power rating, the ATV930D30N4 is your essential solution for precise motor regulation and enhanced operational efficiency across a diverse range of process and utility environments.

Key Features

• High Power Capacity: Delivers a strong 30 kW (40 HP) for continuous, heavy-duty applications.
• Flexible Voltage Compatibility: Accommodates 3-phase inputs ranging from 380–480V, with a ±10% tolerance.
• Integrated EMC Filtering: Reduces electromagnetic interference, ensuring cleaner operation and compliance.
• Versatile Motor Control Algorithms: Supports multiple control modes including Voltage/Frequency (V/f), Sensorless Flux Vector Control (SFVC), Flux Vector Control (FVC) with Encoder, and Permanent Magnet Motor Control, for optimal performance across various motor types.
• Embedded Communication Suite: Features native Ethernet/IP and Modbus TCP protocols, alongside convenient Web Server Access for seamless integration and remote management.
• Broad Output Frequency Range: Offers an adjustable output frequency from 0.1 to 599 Hz, providing extensive application flexibility.
• Intuitive User Interface: Equipped with a graphical keypad, offering a customizable display and comprehensive diagnostic capabilities for ease of use.
• Comprehensive Protective Measures: Includes advanced safeguards against overload, short circuit, overvoltage, undervoltage, motor phase loss, and thermal protection, ensuring long-term operational reliability.

Technical Specifications

• Model Identifier: ATV930D30N4
• Product Series: Altivar Process ATV930
• Motor Power Output: 30 kW (equivalent to 40 HP)
• Nominal Input Voltage: 3-phase, 380–480 V
• Rated Output Current: 61 Amperes
• Momentary Peak Current: Up to 91.5 Amperes for 60 seconds
• Switching Frequency: Default setting of 4 kHz (adjustable from 2.5 kHz to 8 kHz)
• Enclosure Protection Level: IP21 rated
• Operational Temperature Range: -15°C to +50°C (maintaining full performance without derating)
• Physical Dimensions (W x H x D): 215 mm x 600 mm x 284 mm
• Unit Mass: 25 kg

Applications

The adaptability and robust design of the Schneider Electric ATV930D30N4 make it an outstanding choice for a multitude of industrial applications:

• Water & Wastewater Management: Optimally controls pumps and compressors to enhance operational efficiency and system stability.
• Oil & Gas, Mining, and Metal Industries: Provides resilient and precise control for critical processes in demanding environments.
• HVAC Systems: Enables variable control of fans and blowers, leading to significant energy savings and improved climate management.
• Food & Beverage and Chemical Processing: Ensures consistent and reliable performance for sensitive processes even under dynamic load conditions.

Why Choose This Model?

Opting for the Schneider Electric ATV930D30N4 means investing in a future-proof solution that delivers tangible benefits:

• Next-Generation Connectivity: Fully supports smart manufacturing initiatives and IoT integration, streamlining data exchange and process automation.
• Superior Energy Efficiency: Engineered to minimize energy consumption and reduce unplanned downtime, contributing to lower operational costs.
• Unrivalled Motor Control Precision: Offers high-performance control for a broad spectrum of electric motors, enhancing system reliability and performance.
• Industrial-Grade Durability: Boasts a rugged construction specifically designed to withstand challenging industrial environments, ensuring longevity and consistent operation.

Order Now

Secure your Schneider Electric ATV930D30N4 today and elevate your industrial operations. Benefit from fast shipping and reliable worldwide delivery options. For comprehensive information on related products within the range, please refer to our full selection:
