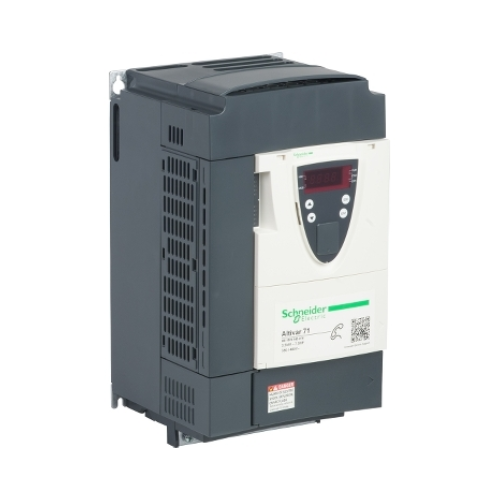

Schneider Electric ATV71HU55N4Z

Overview

Introducing the Schneider Electric ATV71HU55N4Z, an integral component from the acclaimed Altivar 71 series, meticulously engineered to elevate your industrial operations. This high-caliber variable speed drive (VSD) delivers superior control over both 3-phase asynchronous and synchronous motors, making it a versatile powerhouse for diverse applications. Boasting a substantial 5.5 kW (7.5 HP) power rating and adaptable to a 380 to 480 V operating voltage range, the ATV71HU55N4Z is precisely optimized for the most intricate and demanding industrial environments. Benefit from its advanced sensorless flux vector control capabilities, precise flux vector control with sensor, and a multitude of programmable functions designed to ensure unparalleled motor performance, supreme accuracy, and remarkable energy efficiency across your systems.

Key Features

• Potent Power Delivery: Rated at 5.5 kW (7.5 HP), providing ample capacity for rigorous, heavy-duty industrial tasks.
• Broad Voltage Adaptability: Expertly supports 3-phase motors utilizing 380 to 480V, ensuring widespread compatibility.
• Diverse Motor Management Modes: Experience flexible control with Voltage/Frequency Ratio Control, advanced Sensorless Flux Vector Control (SFVC), and highly accurate Flux Vector Control (FVC) with Sensor integration.
• Automated Optimization: Features auto-tuning functionality to achieve optimal motor performance and efficiency effortlessly.
• Extensive Output Frequency Range: Offers a wide output frequency adjustability from 0.1 to 599 Hz for precise speed management.
• Flexible Switching Frequency: Adjustable from 1 to 16 kHz, allowing for fine-tuned operation and reduced motor noise.
• Integrated Safety Protocols: Includes a crucial safe torque off (STO) function to enhance operational safety.
• Comprehensive Protective Measures: Equipped with robust safeguards against overcurrent, overheating, excessive voltage, low voltage, and short-circuit events to protect your investment.
• Intuitive User Interface: Facilitates seamless integration and monitoring with multiple analog and digital I/O, alongside Modbus and CANopen communication ports.

Technical Specifications

• Model Designation: ATV71HU55N4Z
• Product Series: Altivar 71
• Motor Power Output: 5.5 kW (7.5 HP), designed for 3-phase applications.
• Supply Voltage Range: Operates efficiently within 380–480 V (-15% to +10%).
• Rated Output Current: 13.7 A.
• Transient Current Capability: Capable of handling peaks up to 20.5 A for durations of up to 60 seconds.
• Versatile Speed Control Range:
  • For Asynchronous Motors: 1–100 (open-loop) and 1–1000 (closed-loop).
  • For Synchronous Motors: 1–50 (open-loop).
• Ingress Protection Rating: IP20.
• Operational Temperature Spectrum: Functions reliably from -10°C to +50°C without requiring derating.
• Environmental Humidity Tolerance: Sustains performance in 5–95% humidity levels, non-condensing.
• Altitude Performance: Maintains full specification up to 1000 m without performance degradation.
• Physical Dimensions (W x H x D): Compact sizing at 180 mm x 305 mm x 195 mm.
• Product Mass: Weighs 7.6 kg.

Applications

• Sophisticated Industrial Machinery: Provides cutting-edge motor control for advanced automation systems, enhancing precision and throughput.
• Efficient Material Handling Systems: Dramatically boosts efficiency and reliability in critical applications such as conveyors, hoists, and lifting equipment.
• Optimized Pumps & Fans: Delivers energy-conscious operation, ideal for HVAC systems and fluid management, reducing operational costs.
• Refined Process Control: Ensures impeccably smooth and consistent speed and torque regulation for sensitive industrial processes.

Why Choose This Model?

The Schneider Electric ATV71HU55N4Z stands apart as a prime solution for discerning industrial applications. Its capacity for high-precision motor control ensures that whether your operations involve synchronous or asynchronous motors, you achieve unparalleled accuracy and operational fluidity. Built with an array of advanced protection features, this drive actively safeguards your valuable equipment against potential damage and significantly minimizes costly downtime, thereby optimizing productivity. Furthermore, its extensive communication capabilities facilitate effortless integration into existing fieldbus networks, promoting seamless system interoperability. Designed for enduring reliability and maximum efficiency, the Altivar 71 series is the definitive choice for heavy-duty industrial challenges. Invest in the ATV71HU55N4Z to enhance control, bolster safety, and elevate the performance of your crucial machinery.
