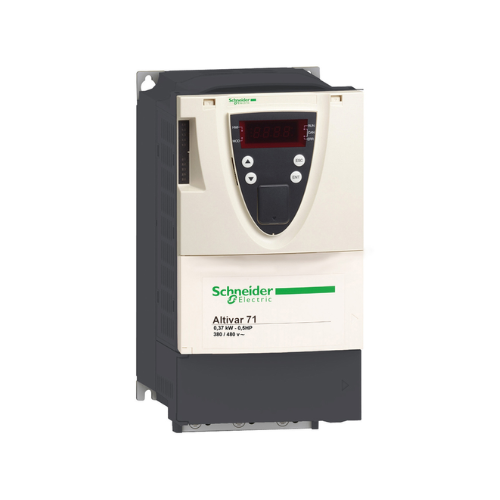

Schneider Electric ATV71HU22N4Z

Overview

Unleash the full potential of your machinery with the Schneider Electric ATV71HU22N4Z, a high-performance variable frequency drive (VFD) from the esteemed Altivar 71 series. Engineered for sophisticated motor management, this 2.2 kW (3 HP) unit delivers exceptional control for both asynchronous and synchronous motor types, ensuring maximum operational efficiency and longevity. Operating flawlessly within a 380–480V 3-phase power environment, the ATV71HU22N4Z is specifically designed for industrial processes that demand unwavering precision, adaptive functionality, and peak energy utilization. Its robust construction and advanced feature set make it an indispensable component for modern manufacturing and automation.

Key Features

• Robust Power Handling: Capable of managing 2.2 kW (3 HP) applications with consistent reliability.
• Versatile Voltage Input: Accommodates 3-phase power supplies ranging from 380–480V ±10% for broad compatibility.
• Advanced Motor Control Algorithm: Supports Voltage/Frequency (V/f), Sensorless Flux Vector Control (SFVC), and Flux Vector Control with Encoder (FVC) for optimal motor performance.
• Synchronous Motor Compatibility: Specifically designed to seamlessly operate with permanent magnet motors.
• Wide Frequency Adjustment: Offers an adjustable output frequency from 0.1 to 599 Hz for diverse speed requirements.
• Integrated Safety Protocol: Features Safe Torque Off (STO) to enhance operational safety and compliance.
• Flexible Communication: Includes built-in Modbus and provides dedicated slots for optional communication cards (e.g., Profibus, CANopen, DeviceNet).
• Intuitive User Interface: Equipped with an LCD graphical display and navigation dial for straightforward programming and monitoring.
• Comprehensive Protection Suite: Incorporates safeguards against overload, short-circuit, phase loss, and overvoltage conditions.

Technical Specifications

• Model Identifier: ATV71HU22N4Z
• Product Series: Altivar 71
• Motor Output Capability: 2.2 kW (3 HP)
• Electrical Input Requirement: 3-phase, 380–480V
• Rated Output Current: 5.6 A
• Maximum Transient Current: 8.4 A (sustainable for 60 seconds)
• Switching Frequency Settings: Default 4 kHz (adjustable from 1–16 kHz)
• Environmental Protection Rating: IP20
• Operational Temperature Range: -10°C to +50°C without derating
• Altitude Performance: Operable up to 1000 meters without derating
• Physical Dimensions (W x H x D): 105 mm x 184 mm x 195 mm
• Unit Mass: Approximately 3.4 kg

Applications

• Precision Material Handling: Ideal for conveyor systems, hoisting equipment, and industrial elevators, ensuring smooth and controlled movement.
• Optimized Pump & Fan Control: Delivers energy-efficient regulation for HVAC systems and various fluid management applications, reducing operational costs.
• High-Speed Machine Tool Operations: Provides the critical control needed for demanding machine tool applications where accuracy is paramount.
• Seamless Packaging & Textile Production: Facilitates consistent and gentle operation in packaging and textile machinery, enhancing product quality.

Why Choose This Model?

The Schneider Electric ATV71HU22N4Z stands out as a premier choice for industrial motor control, offering a compelling blend of innovation and reliability. Its capacity for advanced motor control modes, encompassing support for both asynchronous and synchronous motors, guarantees optimal performance across a broad spectrum of industrial loads. The drive's flexible communication options ensure effortless integration into existing control architectures, simplifying system management. Furthermore, the integrated protection features and robust safety functions provide peace of mind, safeguarding both equipment and personnel. Housed in a compact and durable design, this model is perfectly suited for space-constrained industrial panels without compromising on its powerful capabilities, leading to a long service life and minimized downtime.

Order Now

Secure your Schneider Electric ATV71HU22N4Z today and elevate your industrial automation to new heights. Take advantage of our fast shipping services and worldwide delivery options to get this essential component delivered directly to your facility. Explore our complete range of Schneider Electric Altivar 71 VFDs and discover other powerful Schneider Electric Variable Frequency Drives to meet all your operational demands.
