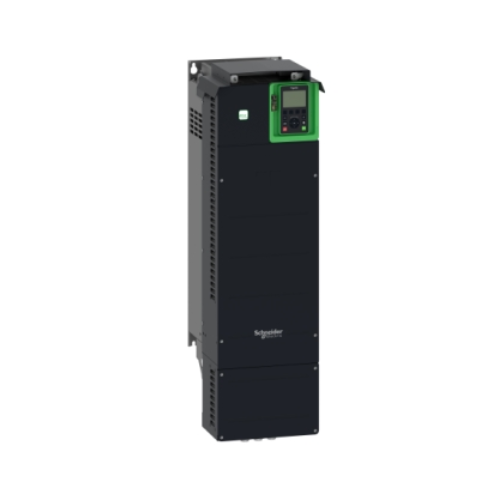

Schneider Electric ATV630D55N4

Overview

Experience unparalleled industrial motor control with the Schneider Electric ATV630D55N4, a robust 55 kW (75 HP) variable speed drive from the acclaimed Altivar Process ATV630 series. Meticulously engineered for peak performance and substantial energy savings, this drive is a cornerstone for modern industrial operations. It masterfully manages both asynchronous and synchronous motors, incorporates an integrated EMC filter for pristine electrical environments, and boasts native Ethernet connectivity, ensuring effortless integration into your existing network and facilitating advanced remote supervision.

Key Features

• Dynamic Power Output: Delivers 55 kW (75 HP) for considerable motor drive capability.
• Flexible Voltage Input: Supports 3-phase, 380–480V with a robust ±10% tolerance.
• Broad Motor Compatibility: Optimized for precise control of both asynchronous and contemporary permanent magnet motors.
• Expansive Frequency Range: Fine-tune output from 0.1 to 599 Hz for diverse application needs.
• Integrated EMC Solution: Effectively mitigates electromagnetic interference for system stability.
• Comprehensive Control Strategies: Includes V/f, Sensorless Flux Vector Control (SFVC), and precise Flux Vector Control with encoder feedback.
• Built-in Connectivity Suite: Features Modbus TCP, EtherNet/IP, and an embedded web server for seamless data exchange.
• Enhanced Safety Protocols: Equipped with Safe Torque Off (STO) for critical operational security.
• Real-time Insights & Protection: Provides continuous monitoring and sophisticated diagnostic capabilities.

Technical Specifications

• Model Identifier: ATV630D55N4
• Product Series: Altivar Process ATV630
• Motor Rating: 55 kW (75 HP)
• Rated Output Current: 107 A
• Peak Transient Current: Achieves 161 A for up to 60 seconds.
• Switching Frequency: Default setting 4 kHz (user-adjustable from 2.5 to 8 kHz).
• Ingress Protection: IP21 rated for protection against solid objects and vertical dripping water.
• Operational Temperature Span: Performs flawlessly between -15°C and +50°C without performance degradation.
• Altitude Tolerance: Maintains full performance up to 1000 m above sea level.
• Installation Flexibility: Designed for either wall or panel mounting.
• Physical Dimensions (W x H x D): Approximately 315 mm x 745 mm x 310 mm.
• Unit Mass: Approximately 45 kg.

Applications

• Water & Wastewater Management: Essential for precise pump and blower regulation, optimizing resource use.
• HVAC Systems: Drives efficient operation of fans and compressors, leading to significant energy savings.
• Mining & Heavy Industrial Sectors: Provides robust and reliable motor control in challenging, high-demand environments.
• Process Manufacturing Plants: Ensures accurate speed and torque modulation for uninterrupted and optimized production lines.

Why Choose This Model?

The Schneider Electric ATV630D55N4 stands out as a premier choice for industrial motor control, offering a powerful combination of efficiency, connectivity, and resilience. Its design prioritizes not only the precise management of motor functions but also the overarching need for system uptime and operational safety. With its advanced communication capabilities and built-in protections, this drive is not merely a component but a strategic investment in the future-proofing of your industrial infrastructure. Elect for this model to enhance your control, reduce operational costs, and secure your systems against unforeseen challenges.

Order Now

Secure this cutting-edge Altivar Process VFD for your operations today. Benefit from our streamlined shipping processes and global delivery options. Deepen your understanding of superior motor control by exploring the full range of Schneider Electric Altivar Process 630 VFDs. For diverse requirements, browse our comprehensive selection of Schneider Electric Variable Frequency Drives.
