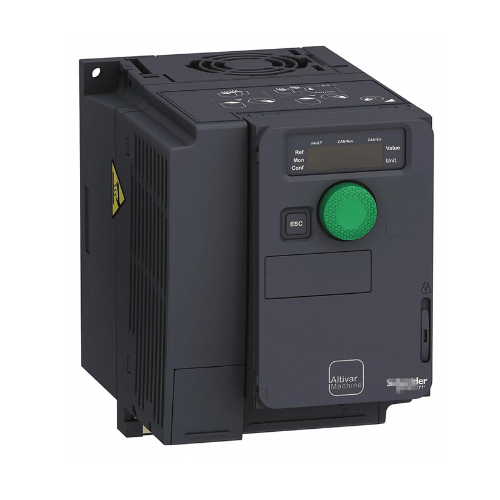

Schneider Electric ATV320U75N4C

Overview

Unlock the full potential of your industrial machinery with the Schneider Electric ATV320U75N4C, a cornerstone of the Altivar Machine ATV320 series. This advanced 7.5 kW (10 HP) variable speed drive is engineered for superior control over three-phase synchronous and asynchronous motors across diverse industrial applications. Boasting an integrated Class C2 EMC filter, a remarkably compact footprint, and support for multiple sophisticated control profiles, the ATV320U75N4C stands out as an optimal solution for original equipment manufacturers (OEMs) and complex automation systems seeking unwavering performance and efficiency.

Key Features

• Significant Power Delivery: Provides 7.5 kW (10 HP) output to drive demanding applications with ease.
• Broad Voltage Compatibility: Operates efficiently within a 380–500 V ±10%, 3-phase supply range.
• Built-in EMI Suppression: Features an integrated Class C2 EMC filter to ensure minimal electromagnetic interference, promoting system stability.
• Sophisticated Motor Command: Supports a variety of motor control modes, including V/f, Sensorless Flux Vector Control (SFVC), Flux Vector Control (FVC) with encoder, and Permanent Magnet Motor Control, for precise and adaptable operation.
• Adaptable Output Frequency: Offers an adjustable output frequency from 0.1 to 599 Hz, catering to diverse speed requirements.
• Flexible Switching Frequency: Configurable switching frequency from 2 to 16 kHz (default 4 kHz) for optimized motor performance and noise reduction.
• Integrated Safety Protocols: Equipped with Safe Torque Off (STO) functionality, enhancing operational safety and compliance.
• Seamless Communication Capabilities: Features embedded Modbus and CANopen protocols, with extendable options via communication cards (e.g., EtherNet/IP, Profibus) for versatile system integration.
• Versatile I/O Configuration: Provides multiple analog and digital inputs/outputs to accommodate various sensor and control needs.

Technical Specifications

• Product Identifier: ATV320U75N4C
• Product Line: Altivar Machine ATV320 Series
• Rated Motor Power: 7.5 kW (10 HP)
• Nominal Output Current: 17.6 A
• Maximum Transient Current: 26.4 A (enduring for 60 seconds)
• Ingress Protection: IP20 rated for protection against solid objects.
• Operational Temperature Range: -10°C to +50°C (maintains full performance without derating).
• Altitude Performance: Operable up to 1000 m without performance degradation.
• Mounting Options: Designed for either wall or panel installation.
• Physical Dimensions (W x H x D): 105 mm x 221 mm x 200 mm
• Approximate Weight: 4.5 kg

Applications

The Schneider Electric ATV320U75N4C is a remarkably versatile frequency inverter, making it suitable for a wide array of industrial applications where precise motor control and energy efficiency are paramount:

• Material Handling Systems: Optimally controls conveyors, hoists, and cranes, ensuring smooth and efficient goods movement.
• Advanced Machine Tools: Provides precise speed and torque regulation for high-accuracy equipment, enhancing production quality.
• Packaging & Printing Machinery: Delivers highly responsive control for dynamic loads, improving throughput and operational consistency.
• Pumps & Fans: Facilitates energy-efficient flow and pressure regulation, leading to significant power savings and extended equipment lifespan.

Why Choose This Model?

The ATV320U75N4C is more than just a variable speed drive; it’s a strategic investment in the efficiency and reliability of your operations. Its robust features and thoughtful design offer compelling advantages:

• Unmatched Versatility & Reliability: Experience highly versatile motor control coupled with integrated safety features and effective filtering, providing a dependable solution for complex industrial environments.
• Optimized for Modern Industrial Settings: Its compact and rugged design makes it an ideal fit for demanding OEM applications and intricate machine building projects, maximizing space efficiency without compromising durability.
• Effortless System Integration: Thanks to embedded Modbus and CANopen, along with support for optional fieldbus communication modules, integrating this drive into existing or new automation architectures is straightforward and efficient.
• Consistent, High-Performance Operation: Engineered for continuous duty in industrial settings, it delivers reliable performance day in and day out, minimizing downtime and maximizing productivity.

Order Now

Enhance your machinery's performance and efficiency today. Benefit from our fast shipping and worldwide delivery options. Explore the comprehensive range of Schneider Electric Altivar 320 VFDs or return to our selection of Schneider Electric Variable Frequency Drives to find the perfect solution for your needs.
