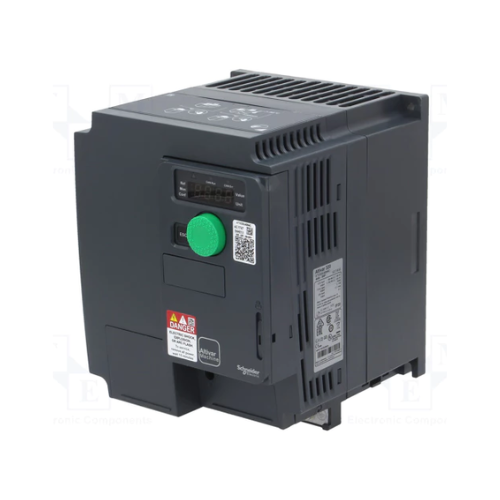

Schneider Electric ATV320U40N4C

Overview

Elevate your industrial processes with the Schneider Electric ATV320U40N4C, a robust frequency inverter engineered for superior motor control. This prominent member of the Altivar Machine 320 series delivers unparalleled precision and efficiency for a diverse range of applications. Designed with a potent 4kW (5HP) power rating and operating across a versatile 380-500V three-phase input, the ATV320U40N4C stands out for its compact footprint, making it an ideal solution for systems where space optimization is critical. Whether you're managing complex machine automation, streamlining conveyor systems, or optimizing pump and fan operations, this drive ensures seamless integration and reliable performance. Experience enhanced energy savings and operational stability with a VFD that intelligently adapts to your machinery's demands.

The ATV320U40N4C incorporates advanced sensorless vector control algorithms, providing sophisticated motor management without the need for additional feedback devices. Its suite of integrated safety functions protects both personnel and equipment, while a variety of communication options facilitate effortless connectivity within your existing industrial network. This commitment to intelligent design ensures not only operational excellence but also a safer, more sustainable industrial environment.

Key Features

• Dynamic Power Delivery: A robust 4kW (5HP) variable frequency drive, engineered for precise and efficient motor speed regulation.
• Broad Voltage Compatibility: Operates effectively within a 380-500V AC three-phase electrical supply, accommodating standard industrial power setups.
• Ultra-Compact Form Factor: The 'C' variant design allows for installation in remarkably confined control panel spaces, maximizing layout flexibility.
• Sophisticated Motor Algorithms: Equipped with integrated control capabilities, including advanced sensorless vector and V/F control modes, for optimized motor response.
• Integrated Safety Mechanisms: Features built-in safety functions like Safe Torque Off (STO), significantly enhancing operational safety and regulatory compliance.
• Flexible Connectivity Suite: Supports native Modbus RTU and CANopen communication protocols, with optional modules available for Ethernet and Profibus integration.
• Unyielding Industrial Construction: Built to withstand demanding industrial environments, ensuring sustained reliability and longevity.

Technical Specifications

• Model Identifier: ATV320U40N4C
• Product Series: Altivar Machine 320
• Rated Power Output: 4kW (equivalent to 5HP)
• Input Voltage Range: 380-500V AC, Three-Phase
• Operational Output Frequency: Configurable from 0.1 Hz to 599 Hz
• Motor Control Methods: Sensorless Vector Control and Volts/Hertz (V/F) Control
• Standard Communication Interfaces: Modbus RTU, CANopen (optional extensions for Ethernet, Profibus)
• Enclosure Style: Compact 'C' Variant
• Mounting Versatility: Suitable for both DIN Rail and direct Panel Mounting
• Environmental Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Certifications & Compliance: CE, UL, RoHS certified

Applications

The Schneider Electric ATV320U40N4C is a versatile frequency inverter, perfectly suited for a multitude of industrial applications demanding precise and efficient motor control:

• Advanced Machine Automation: Delivers superior motion control and repeatability for a wide array of industrial machinery, enhancing productivity.
• Conveyor and Material Handling Systems: Ensures smooth, controlled acceleration and deceleration, minimizing wear and tear and preventing product damage.
• Pumps and Fan Systems: Optimizes energy consumption and enables precise flow or pressure regulation, leading to significant operational savings.
• HVAC Infrastructure: Facilitates efficient management of motor speeds within heating, ventilation, and air conditioning systems, improving climate control and energy performance.

Why Choose This Model?

Opting for the Schneider Electric ATV320U40N4C brings a host of benefits that directly impact operational efficiency and cost-effectiveness. Its highly compact design makes it an invaluable asset for installations with restricted spatial availability, allowing for more flexible panel layouts. The commitment to reliable and energy-efficient performance is evident in its advanced control features, leading to tangible reductions in energy consumption and extended motor lifespan. Seamless integration into diverse industrial ecosystems is guaranteed through its broad support for various communication protocols, simplifying setup and interaction with existing systems. Furthermore, the inclusion of sophisticated built-in safety features like STO underscores a dedication to operator protection and compliance with stringent industrial safety standards, offering peace of mind and reducing potential risks. This model represents a strategic investment in robust, intelligent, and safe motor control.

Order Now

Secure your Schneider Electric ATV320U40N4C today and revolutionize your motor control capabilities. Benefit from our efficient shipping and worldwide delivery services. Explore the full range of Schneider Electric Altivar 320 VFDs to find your perfect match, or browse our complete collection of Schneider Electric Variable Frequency Drives for more innovative solutions.
