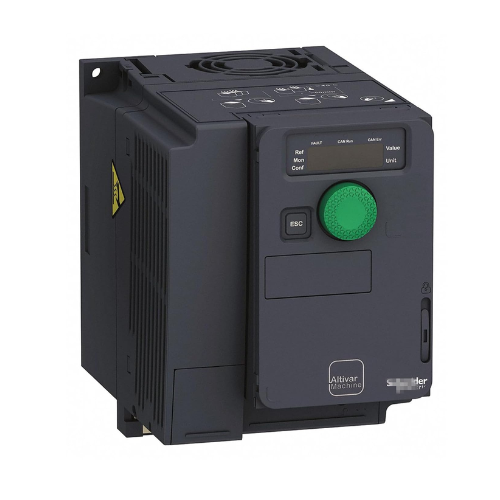

Schneider Electric ATV320U11N4C

Overview

Elevate your industrial machinery's performance with the Schneider Electric ATV320U11N4C variable speed drive. This robust 1.1 kW (1.5 HP) unit from the Altivar Machine ATV320 series delivers unmatched control for both 3-phase synchronous and asynchronous motors. Engineered for the rigorous demands of modern industrial environments, this drive boasts a wide operating voltage of 380–500 V, an integrated EMC filter for pristine electrical compatibility, and a remarkably compact form factor. Its versatile motor control profiles make it an indispensable asset for machine builders and sophisticated automation systems seeking precision and efficiency.

Key Features

• Optimal Power Output: Provides 1.1 kW (1.5 HP) to reliably drive your equipment.
• Broad Voltage Adaptability: Handles 3-phase power from 380–500V ±10% with ease.
• Integrated EMC Solution: Features a Class C2 filter to mitigate electromagnetic interference effectively.
• Advanced Motor Control Schemes:
• Voltage/Frequency Ratio (V/f) for standard applications.
• Sensorless Flux Vector Control (SFVC) for enhanced dynamic performance.
• Flux Vector Control with Sensor for ultimate precision.
• Flexible Output Frequency: Adjustable range from 0.1 to 599 Hz to suit diverse operating requirements.
• Configurable Switching Frequency: Default 4 kHz, adjustable from 2 to 16 kHz for fine-tuned motor operation.
• Comprehensive Protection Matrix: Includes overload, short circuit, overvoltage, undervoltage, and robust thermal protection.
• Intuitive User Interface: Equipped with multiple analog and digital I/Os for seamless integration and control.
• Space-Saving Design: Its compact dimensions allow for straightforward installation in confined panel spaces.

Technical Specifications

• Model Identifier: ATV320U11N4C
• Product Line: Altivar Machine ATV320
• Motor Power Rating: 1.1 kW (1.5 HP)
• Nominal Current Output: 3.4 A
• Maximum Transient Current: 5.1 A sustained for 60 seconds.
• Ingress Protection Rating: IP20
• Operational Temperature Span: -10°C to +50°C without requiring derating.
• Altitude Resilience: Operates efficiently up to 1000 m without derating.
• Humidity Endurance: 5–95% (non-condensing)
• Physical Footprint (W x H x D): 72 mm x 143 mm x 158 mm
• Unit Mass: Approximately 1.2 kg

Applications

• Sophisticated Material Handling: Flawless control for conveyors, lifters, and hoisting mechanisms.
• Precision Packaging Systems: Optimized speed and torque regulation for packaging machinery.
• HVAC & Fluid Management: Energy-efficient command for pumps and fans.
• Diverse General Automation: An exemplary choice for both compact and medium-sized automated machinery.

Why Choose This Model?

The Schneider Electric ATV320U11N4C is a testament to cutting-edge engineering, offering unparalleled advantages for your industrial setups.

• Supreme Motor Versatility: Seamlessly manages a variety of motor types and advanced control profiles.
• Inherent EMC Conformity: Provides peace of mind with integrated compliance, minimizing electrical interference.
• Optimized for Small Spaces: Expertly designed to fit into tight control panels, maximizing your valuable real estate.
• Dependable Industrial Performance: Constructed for enduring reliability, even in the most demanding operational landscapes.

Order Now

Secure the Schneider Electric ATV320U11N4C today and transform your industrial operations. Benefit from our rapid shipping solutions and comprehensive worldwide delivery network. Explore our extensive range of Schneider Electric Altivar 320 VFDs or navigate back to the full selection of Schneider Electric Variable Frequency Drives to find the ideal solution for your needs.
