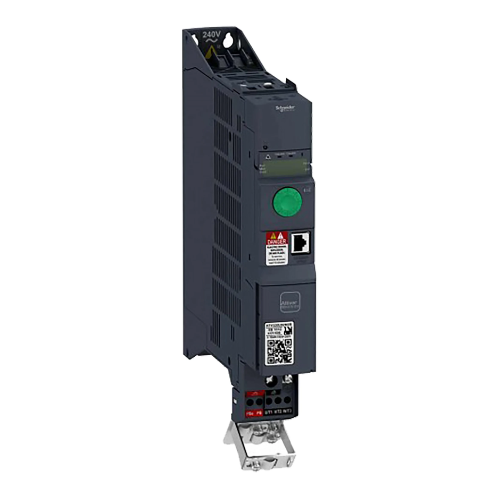

Schneider Electric ATV320U11N4B

Overview

Unleash the full potential of your machinery with the Schneider Electric ATV320U11N4B, a sophisticated 1.1 kW (1.5 HP) variable frequency drive from the esteemed Altivar Machine ATV320 series. This innovative VFD is engineered for meticulous control of both 3-phase asynchronous and synchronous motors, making it an indispensable component for a wide array of industrial applications. Designed with the demanding environments of modern manufacturing in mind, it provides robust motor management, integrated electromagnetic compatibility (EMC) filtering, and a remarkably space-saving form factor. This makes the ATV320U11N4B a prime choice for original equipment manufacturers (OEMs) and panel builders seeking unparalleled performance and reliability.

Key Features

• Commanding Power Output: Delivers 1.1 kW (1.5 HP) for effective motor drive across various industrial tasks.
• Adaptable Voltage Input: Operates efficiently within a 380–500 V ±10% three-phase power supply.
• Integrated EMC Solution: Features a Class C3 integrated EMC filter, ensuring harmonious operation in electromagnetic-sensitive environments and compliance with regulatory standards.
• Versatile Motor Control Algorithms: Offers multiple modes including standard V/f (Voltage/Frequency ratio), advanced Sensorless Flux Vector Control (SFVC), and high-precision Flux Vector Control (FVC) with encoder feedback for diverse motor types.
• Extensive Output Frequency Range: Provides an adjustable output frequency from 0.1 Hz up to an impressive 599 Hz, allowing fine-tuned speed adjustments for optimal process performance.
• Adjustable Switching Frequency: Configurable from 2 kHz to 16 kHz (default 4 kHz) to minimize motor noise and optimize efficiency.
• Integral Safety Mechanism: Equipped with Safe Torque Off (STO) functionality, enhancing operational safety by swiftly disabling motor power during critical events.
• Seamless Communication Capabilities: Features embedded Modbus and CANopen protocols for straightforward integration into existing automation networks.
• Configurable I/O Options: Boasts a comprehensive range of analog and digital inputs/outputs to accommodate various control signaling requirements.

Technical Specifications

• Product Identifier: ATV320U11N4B
• Product Line: Altivar Machine ATV320
• Motor Rating: 1.1 kW (1.5 HP)
• Rated Output Current: 3.4 A
• Maximum Instantaneous Current: 5.1 A (for bursts up to 60 seconds)
• Ingress Protection: IP20 rated, providing protection against solid objects larger than 12.5mm.
• Operating Temperature Range: Functions reliably from -10°C to +50°C without requiring derating.
• Altitude Tolerance: Operates at altitudes up to 1000 meters without performance degradation.
• Physical Dimensions (W x H x D): 105 mm x 143 mm x 158 mm
• Approximate Mass: 1.9 kg

Applications

The Schneider Electric ATV320U11N4B is engineered to excel in a diverse range of industrial applications, providing precision and efficiency:

• Advanced Material Handling Systems: Ideal for conveyor belts, lifting equipment, and various hoisting mechanisms, ensuring smooth and controlled movement of goods.
• Precision Machine Tools: Delivers accurate speed and torque regulation for drilling, milling, and grinding machinery, enhancing production quality and consistency.
• HVAC and Fluid Management: Optimizes the performance of industrial fans, pumps, and compressors, contributing to energy efficiency and system longevity.
• Automated Packaging Solutions: Provides precise and reliable control for packaging machinery, ensuring high-speed and accurate operations in compact production lines.

Why Choose This Model?

Opting for the Schneider Electric ATV320U11N4B means investing in a solution that offers unmatched value and performance:

• Optimized Motor Management: Experience superior motor control with multiple operational modes, allowing for precise adjustment to meet diverse application requirements.
• Enhanced Electrical Compatibility: Benefit from integrated EMC filtering, which mitigates electromagnetic interference, ensuring stable operation in sensitive industrial environments.
• Built for Industrial Rigor: Its compact yet robust design guarantees durability and reliable performance even in the most demanding industrial settings, making it perfect for tight integrations.
• Effortless System Integration: With embedded Modbus and CANopen communication protocols, integrating this drive into existing or new automation systems is streamlined and efficient.

Order Now

Streamline your industrial processes and enhance machinery performance by securing the Schneider Electric ATV320U11N4B today. Benefit from our efficient shipping and comprehensive worldwide delivery options to get this essential variable speed drive to your facility promptly.
