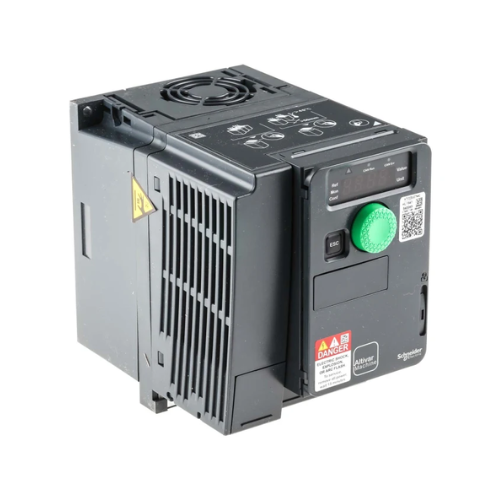

Schneider Electric ATV320U07N4C

Overview

The Schneider Electric ATV320U07N4C variable speed drive stands as a robust solution within the Altivar Machine ATV320 series, meticulously engineered for precise regulation of three-phase synchronous and asynchronous motors. This particular model delivers 0.75 kW (1 HP) of power, seamlessly operating across a voltage spectrum of 380 to 500 V. Tailored for the most demanding industrial environments, this drive ensures sophisticated motor control capabilities, further enhanced by an integrated Class C2 EMC filter, which actively minimizes electromagnetic interference and maintains system integrity.

Key Features

• Optimal Power Delivery: Provides 0.75 kW (1 HP) power, specifically designed to meet rigorous industrial application requirements.
• Broad Voltage Compatibility: Meticulously supports 3-phase motor systems ranging from 380–500V, ensuring flexible integration.
• Embedded EMC Filtration: Incorporates a Class C2 EMC filter directly, guaranteeing adherence to electromagnetic compatibility standards and reducing operational noise.
• Advanced Motor Control Modalities: Offers diverse control algorithms including: Atomic's Voltage/Frequency Ratio (2 or 5 configurable points), Sensorless Flux Vector Control (SFVC), Flux Vector Control (FVC) with enhanced sensor feedback, and the Energy Adaptation (ENA) System for efficiently handling unbalanced loads.
• Wide Output Frequency Spectrum: Dynamically adjustable output frequency spanning from 0.1 Hz to 599 Hz, allowing for fine-tuned motor speed.
• Configurable Switching Frequency: Features a nominal switching frequency of 4 kHz, which is user-adjustable between 2 kHz and 16 kHz for application-specific optimization.
• Comprehensive Protection Suite: Equipped with an extensive array of protective measures, including overcurrent, overheating, overvoltage, undervoltage, and robust short-circuit defense mechanisms.
• Intuitive User Connectivity: Furnished with a variety of analog and digital inputs/outputs, facilitating versatile and straightforward control integration.

Technical Specifications

• Model Identifier: ATV320U07N4C
• Product Series: Altivar Machine ATV320
• Rated Motor Power: 0.75 kW (1 HP), supports 3-phase configurations.
• Input Voltage Supply: 380–500 V, with a tolerance range of -15% to +10%.
• Nominal Output Current: 2.2 A at a 4 kHz switching frequency.
• Peak Transient Current Capability: Withstands up to 3.3 A for a duration of 60 seconds.
• Performance Speed Range:
  • Asynchronous Motor: 1–100 (open-loop), 1–1000 (closed-loop)
  • Synchronous Motor: 1–50 (open-loop)
• Ingress Protection Rating: IP20
• Operational Temperature Range: -10°C to +50°C without requiring derating.
• Humidity Endurance: 5–95% without condensation.
• Altitude Tolerance: Operates efficiently up to 1000 m without derating.
• Dimensions (W x H x D): Compact at 72 mm x 143 mm x 158 mm.
• Unit Weight: A lightweight 1.2 kg.

Applications

• High-Precision Automated Machinery: Delivers exacting speed control, crucial for intricate automated processes.
• Integrated Conveyor Systems: Boosts operational efficiency and manages material flow seamlessly in handling applications.
• Strategic Pumps & Fans: Ensures energy-conscious and optimized performance for various fluid and airflow systems.
• Diverse Industrial Automation: Provides dependable motor control for a broad spectrum of industrial settings and requirements.

Why Choose This Model?

The Schneider Electric ATV320U07N4C is not merely a component; it's an investment in efficiency and reliability. Its exceptional capability to control multiple motor types translates into versatile application across various industrial operations. The seamlessly integrated Class C2 EMC filter is a standout feature, safeguarding your systems from electromagnetic interference and guaranteeing smoother, more consistent performance. Crafted for resilience, this drive is inherently reliable and built to endure the rigors of demanding industrial environments. Furthermore, its intelligently compact design allows for straightforward installation even in restricted spaces, making it an ideal choice for optimizing your setup without compromise. Choosing the ATV320U07N4C reinforces your commitment to superior industrial motor management and operational excellence.
