Schneider Electric ATV320D15N4B

Overview

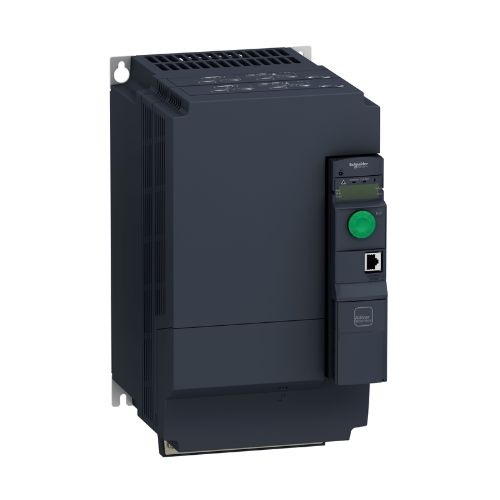

Elevate your machinery's performance with the Schneider Electric ATV320D15N4B, a cutting-edge variable speed drive engineered within the esteemed Altivar Machine ATV320 series. This robust drive is meticulously designed to provide unparalleled control over both synchronous and asynchronous 3-phase motors. Boasting a substantial 15 kW (20 HP) power rating, it seamlessly operates across a versatile voltage spectrum of 380 to 500 V. The ATV320D15N4B is your definitive solution for intricate machine applications, delivering sophisticated motor management capabilities alongside a built-in Class C3 EMC filter for pristine electromagnetic compatibility. Experience a new benchmark in industrial automation and efficiency.

Key Features

• Robust Power Handling: Command up to 15 kW (20 HP) for challenging industrial tasks, ensuring reliable operation for heavy-duty requirements.
• Broad Voltage Adaptability: Perfectly compatible with 3-phase motor systems ranging from 380 V to 500 V, offering broad application flexibility.
• Integrated EMC Solution: Features an embedded Class C3 EMC filter, actively mitigating electromagnetic interference and guaranteeing seamless adherence to stringent EMC standards.
• Versatile Motor Control Algorithms: Supports a diverse array of control methodologies, including multi-point Voltage/Frequency Ratio (2 or 5 points), advanced Sensorless Flux Vector Control (SFVC), high-precision Flux Vector Control (FVC) with Sensor, and the Energy Adaptation (ENA) System for optimized performance under unbalanced loads.
• Expansive Output Frequency Range: Achieve granular control over motor speed with an adjustable output frequency spanning from 0.1 to 599 Hz, accommodating a wide spectrum of operational needs.
• Dynamic Switching Frequency: Configurable nominal switching frequency of 4 kHz, with adaptability from 2 kHz to 16 kHz (with applicable derating), allowing fine-tuning for specific motor characteristics.
• Comprehensive Protective Measures: Fortified with an array of protective circuits safeguarding against overcurrents, thermal overloads, voltage irregularities (overvoltage/undervoltage), and short-circuit conditions, ensuring operational longevity.
• Intuitive Interfacing: Equipped with a rich suite of analog and digital inputs/outputs, facilitating flexible integration, precise control, and detailed process oversight.

Technical Specifications

• Model Identifier: ATV320D15N4B
• Product Line: Altivar Machine ATV320
• Nominal Motor Output: 15 kW (20 HP) at 380–500 V, for 3-phase systems
• Input Voltage Range: 380–500 V (with a tolerance of -15% to +10%)
• Input Line Current: 33 A at 380 V
• Rated Output Current: 33 A at a 4 kHz switching frequency
• Apparent Power Rating: 24 kVA at 380 V
• Prospective Line Short-Circuit Current (Isc): ≤22 kA, for 3-phase systems
• Peak Transient Current Capability: 50 A sustained for 60 seconds
• Adjustable Speed Control Span:
  • For Asynchronous Motors: 1–100 (open-loop) and 1–1000 (closed-loop with encoder feedback)
  • For Synchronous Motors: 1–50 (open-loop)
• Speed Deviation Accuracy:
  • Without Feedback: ±10% of nominal slip for 0.2 Tn to Tn torque variation
  • With Encoder Feedback: ±0.01% of nominal speed for 0.2 Tn to Tn torque variation
• Torque Control Precision:
  • In Open-Loop Configuration: ±15%
  • In Closed-Loop Configuration: ±5% with encoder feedback
• Adjustable Acceleration/Deceleration Ramps: Separately configurable from 0.01 seconds to an extensive 9000 seconds
• Braking Mechanism: Utilizes DC injection for controlled stopping
• Environmental Protection Rating: IP20
• Operational Temperature Limits: -10°C to +50°C without requiring derating
• Storage Temperature Range: -25°C to +70°C
• Humidity Resilience: 5–95% non-condensing
• Altitude Performance: Functions faultlessly up to 1000 m; derating guidelines apply for installations above 1000 m
• Physical Dimensions (W x H x D): 180 mm x 310 mm x 232 mm
• Unit Mass: Approximately 9.5 kg

Applications

The Schneider Electric ATV320D15N4B is engineered to excel in a multitude of industrial environments requiring pinpoint accuracy and robust performance. Its advanced features make it indispensable for:

• Advanced Machine Control: Perfectly suited for sophisticated machinery demanding precise motor regulation and extensive functional capabilities.
• Material Handling Systems: Optimizes the efficiency and responsiveness of conveyor belts, hoisting equipment, and industrial cranes.
• Packaging and Textile Industries: Provides meticulous speed and torque management crucial for high-speed packaging lines and intricate textile manufacturing processes.
• Pump and Fan Operations: Drives significant energy savings and operational improvements within HVAC systems and various pumping applications.

Why Choose This Model?

The Schneider Electric ATV320D15N4B stands out as a premier choice for industrial automation due to its exceptional blend of power, precision, and protective features. This Altivar Machine drive offers not just motor control, but a comprehensive solution for enhancing machine efficiency and reliability. With its integrated EMC filter, it ensures clean operation in electrically noisy environments, simplifying compliance. The extensive range of motor control profiles provides unmatched versatility, allowing tailoring to specific machine dynamics. Furthermore, its robust build and extensive protection mechanisms guarantee long-term durability and minimal downtime, translating into significant operational advantages. Opt for the ATV320D15N4B to experience superior performance, reduced energy consumption, and steadfast control across your most demanding applications.

Order Now

Upgrade your industrial control systems today with the Schneider Electric ATV320D15N4B. Contact us or visit our website to secure this high-performance variable speed drive and unlock the full potential of your machinery. Our team is ready to assist you with selection and technical support, ensuring seamless integration and optimal operation.
