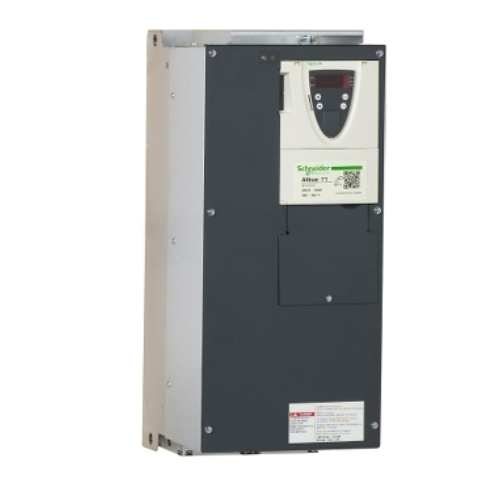

Schneider Electric ATV71HD30N4

Overview

Experience precision and robustness with the Schneider Electric ATV71HD30N4, a cutting-edge 30 kW (40 HP) variable speed drive from the acclaimed Altivar 71 series. Engineered for the most challenging industrial environments, this VFD provides exceptional control over both asynchronous and synchronous motors. Its design prioritizes operational stability, incorporating an integral EMC filter to mitigate electromagnetic interference and offering extensive communication flexibility to seamlessly integrate into your existing automation infrastructure. Achieve unparalleled performance and reliability for critical industrial processes.

Key Features

• Commanding Power: Delivers 30 kW (40 HP) for demanding applications.
• Broad Input Voltage: Operates efficiently on 3-phase, 380–480V ±10% mains supply.
• Extensive Output Frequency Range: Fine-tune motor speed from 0.1 Hz up to 599 Hz.
• Diverse Motor Control Methodologies:
  • Scalar (V/f) Control for general applications.
  • Sensorless Flux Vector Control (SFVC) for enhanced dynamic performance without encoders.
  • High-Precision Flux Vector Control (FVC) with encoder feedback.
  • Dedicated support for Permanent Magnet motors.
• Integral EMC Filtering: Built-in to ensure compliance and minimize electrical noise.
• Advanced Communication Capabilities:
  • Standard built-in Modbus interface.
  • Expandable with optional communication cards including Profibus, CANopen, DeviceNet, and EtherNet/IP for broad system compatibility.
• Enhanced Safety: Features Safe Torque Off (STO) to meet critical safety requirements.
• Intuitive User Interface: Compatible with a graphical display terminal for easy configuration and monitoring.

Technical Specifications

• Product Code: ATV71HD30N4
• Series: Altivar 71
• Motor Output Power: 30 kW (40 HP)
• Rated Output Current: 61 A
• Maximum Transient Current: 91.5 A (sustainable for 60 seconds)
• Switching Frequency: Default 2.5 kHz (user-adjustable up to 16 kHz with appropriate derating).
• Protection Class: IP20
• Operational Temperature Range: -10°C to +50°C without power reduction.
• Maximum Altitude: Up to 1000 meters above sea level without derating.
• Installation: Versatile wall or panel mounting options.
• Physical Dimensions (W x H x D): Approximately 275 mm x 545 mm x 265 mm.
• Unit Weight: Approximately 28 kg.

Applications

The Schneider Electric ATV71HD30N4 is ideally suited for a diverse array of advanced industrial applications where precise motor control and energy efficiency are paramount. This includes sophisticated:

• High-speed material handling and conveying systems.
• Challenging pump and fan operations requiring precise flow or pressure regulation.
• Precision extruders and mixers in process manufacturing.
• Critical OEM equipment and complex process control systems where reliability is non-negotiable.

Why Choose This Model?

The Schneider Electric ATV71HD30N4 stands out as a superior choice due to its multifaceted benefits:

• Unrivaled Motor Control: Offers a comprehensive suite of motor control modes, ensuring optimal performance for virtually any motor type in demanding industrial setups.
• Integrated Compliance and Safety: Features a built-in EMC filter for seamless integration and a Safe Torque Off (STO) function, enhancing operational safety and regulatory compliance.
• Modular Connectivity: Adaptable communication options facilitate effortless integration into new or existing control architectures, future-proofing your investment.
• Robust Industrial Design: Engineered for reliability and efficiency, capable of performing in harsh industrial environments while delivering consistent, high-quality output.

Order Now

Secure your Schneider Electric ATV71HD30N4 today and elevate your industrial automation capabilities. Benefit from our efficient shipping and comprehensive worldwide delivery services.
