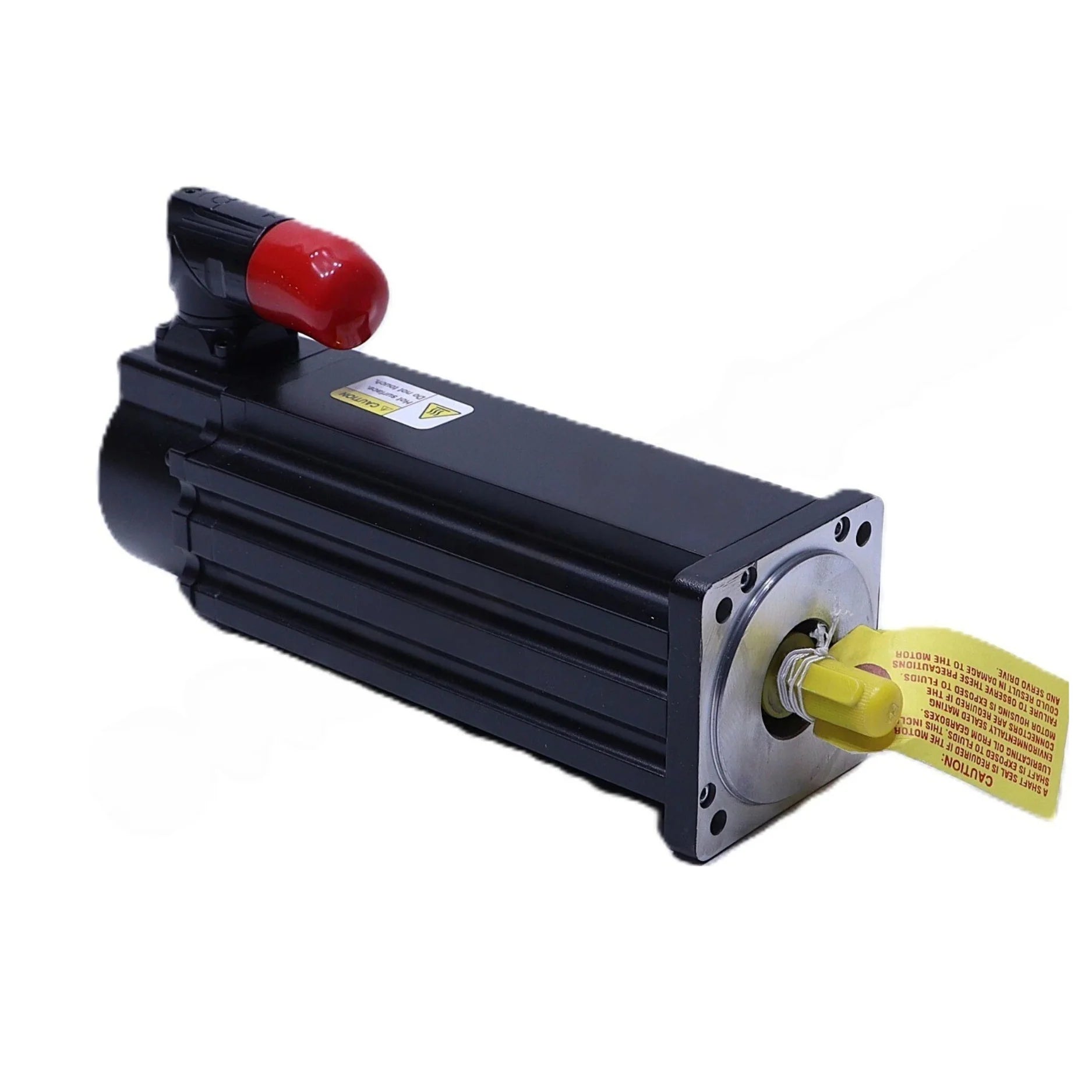

Allen-Bradley VPL-B0753F-PJ14AA

Overview

Elevate the performance of your high-speed automation systems with the Allen-Bradley VPL-B0753F-PJ14AA, a state-of-the-art low-inertia servo motor from the renowned Kinetix VP series. Engineered for applications demanding rapid acceleration, deceleration, and exceptional positional accuracy, this robust motor seamlessly integrates into demanding industrial environments. Its 75 mm bolt circle frame, combined with three magnet stacks and an 'F' winding, allows it to achieve a remarkable rated speed of 4500 RPM. This model is exceptionally well-equipped for dynamic motion control, featuring an advanced 18-bit single-turn and 12-bit multi-turn high-resolution encoder for superior feedback, a keyed shaft for secure mechanical coupling, and a reliable 24 V DC holding brake to ensure safety and maintain load position during power-off conditions. The VPL-B0753F-PJ14AA is not just a motor; it's a precision component crafted to enhance productivity and reliability in a wide array of industrial applications.

Key Features

• High-Speed Performance: Achieves a rated speed of 4500 RPM, ideal for applications requiring rapid and precise movements.
• Optimized Low Inertia Design: Facilitates quick acceleration and deceleration, minimizing cycle times and enhancing throughput.
• Advanced Positional Feedback: Features a high-resolution 18-bit single-turn and 12-bit multi-turn encoder for unparalleled accuracy in position tracking.
• Secure Mechanical Connection: Equipped with a keyed shaft for robust and reliable coupling, preventing slippage during operation.
• Integrated Holding Brake: Includes a 24 V DC holding brake, ensuring load stability and enhanced safety, particularly during emergency stops or power loss.
• Industrial Durability: Housed in a compact, standard industrial design with IP50 protection, built for longevity in challenging conditions.
• Versatile Connectivity: Utilizes SpeedTec right-angle DIN connectors for convenient and secure electrical connections.

Technical Specifications

• Catalog Number: VPL-B0753F-PJ14AA
• Rated Voltage: 480 VAC, 3-phase
• Rated Speed: 4500 RPM
• Frame Size: 75 mm bolt circle
• Magnet Stacks: 3
• Winding Type: F
• Encoder Type: Digital high-resolution, 18-bit single-turn and 12-bit multi-turn
• Shaft Type: Keyed
• Brake: Included, 24 V DC holding brake
• Connector Type: SpeedTec DIN, right-angle
• Mounting: IEC metric flange
• Enclosure Rating: IP50 (Standard industrial design)
• Operating Temperature: 0 °C to 40 °C
• Approximate Weight: 5.6 kg

Applications

The Allen-Bradley VPL-B0753F-PJ14AA low-inertia servo motor is an ideal solution for a diverse range of industries and high-performance applications, including:

• High-Performance Packaging Systems: Ensures rapid and precise product handling, sealing, and labeling in automated packaging lines.
• Multi-Axis Robotic Automation: Powers sophisticated robotic arms and systems requiring dynamic and accurate motion for manufacturing and assembly tasks.
• Pick-and-Place Machinery: Provides the speed and precision necessary for fast and accurate component placement in electronics assembly and other industries.
• Dynamic Industrial Equipment: Enhances the responsiveness and control of machinery in textile, printing, and other high-throughput production environments.
• OEM Solutions with Precise Motion Needs: Offers a reliable and high-performance component for original equipment manufacturers developing advanced automation systems.

Why Choose This Model?

• Exceptional Responsiveness: The combination of high RPM and low inertia delivers incredibly responsive control, reducing settling times and boosting operational efficiency.
• Unmatched Positional Accuracy: The multi-turn, high-resolution encoder provides superior feedback, ensuring precise position tracking and repeatability for critical applications.
• Enhanced Safety and Load Control: The integrated 24 V DC holding brake offers an essential safety feature, securing loads and preventing unintended movement.
• Reliable and Durable Construction: Built to Allen-Bradley's stringent industrial standards, this motor promises long-term reliability and performance in harsh environments.
• Seamless Integration: Designed for easy integration into existing or new automation architectures, minimizing installation complexity and downtime.
• Global Availability and Support: Benefit from worldwide shipping and access to Allen-Bradley's comprehensive support network.

Order Now

Unlock the full potential of your automation systems with the Allen-Bradley VPL-B0753F-PJ14AA low-inertia servo motor. This highly sought-after motor is readily available and ships worldwide, bringing its precision and performance directly to your operation. For organizations seeking further options in high-performance motion control, we invite you to explore our comprehensive range of Kinetix VPL Low-Inertia Servo Motors. Alternatively, browse our full selection of Allen-Bradley Servo Motors to discover the perfect solution tailored to your specific industrial automation needs.
