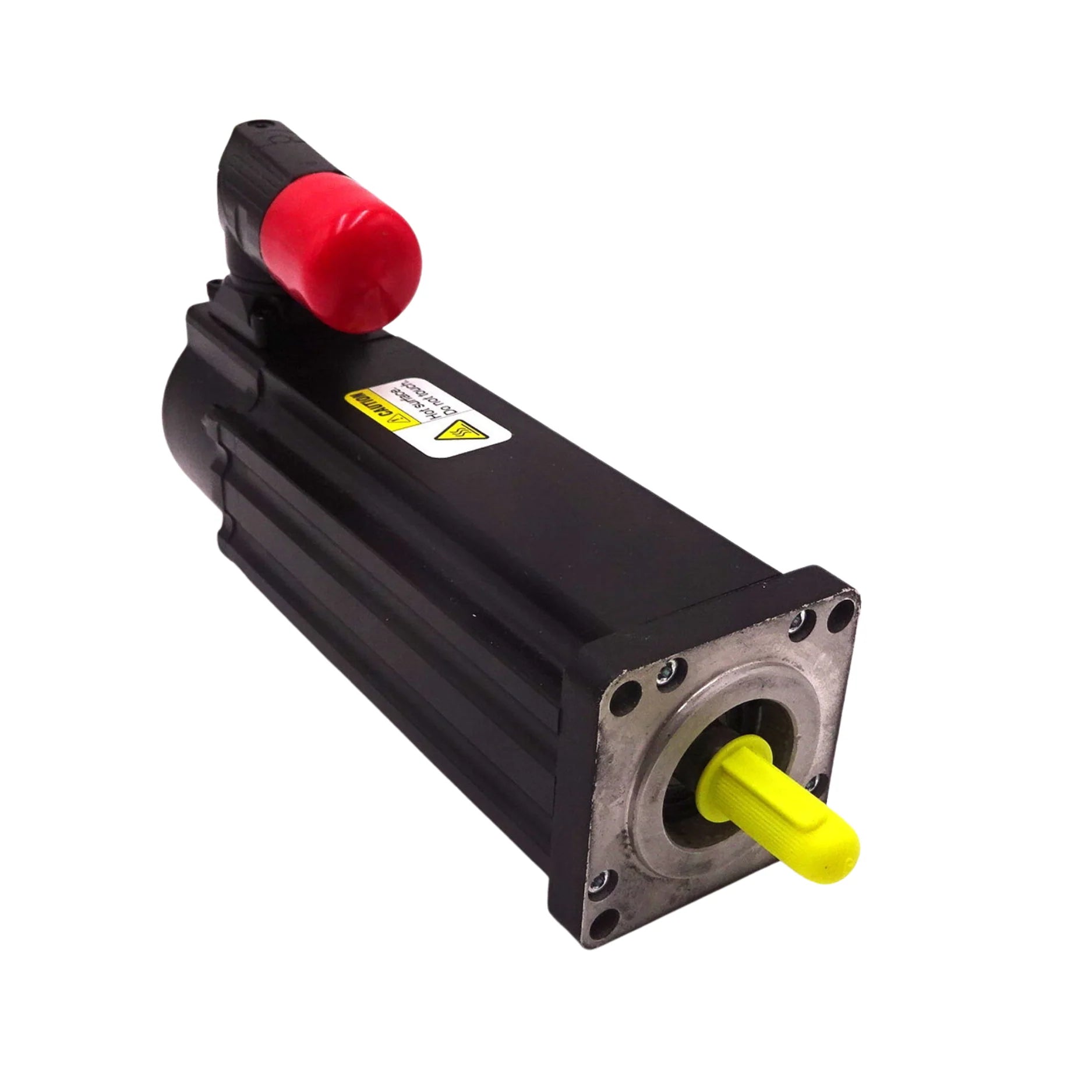

Allen-Bradley VPL-B0633T-PJ12AA

Overview

The Allen-Bradley VPL-B0633T-PJ12AA is a high-performance, low-inertia servo motor meticulously engineered to meet the rigorous demands of advanced industrial automation. As part of the esteemed Kinetix VP low-inertia family, this motor excels in applications requiring exceptional speed, unparalleled precision, and rapid acceleration/deceleration. Its compact yet robust design, featuring a 63 mm bolt circle frame and three magnet stacks, ensures reliable operation in demanding environments. Optimized for a 480 VAC power supply, the VPL-B0633T-PJ12AA delivers an impressive rated speed of 6750 RPM, making it an ideal choice for high-throughput machinery. This model integrates an advanced 18-bit single-turn and 12-bit multi-turn digital high-resolution encoder, providing superior positional feedback for complex motion profiles. The inclusion of a keyed shaft enhances secure coupling, while the absence of a holding brake makes it perfectly suited for dynamic applications where continuous, uninterrupted motion is paramount.

Key Features

• Blazing Fast Performance: Achieves a remarkable 6750 RPM rated speed for high-speed industrial processes.
• Precision Control: Equipped with an 18-bit single-turn and 12-bit multi-turn digital high-resolution encoder for exact positioning.
• Optimized for Dynamics: Low-inertia design ensures quick acceleration and deceleration, enhancing machine responsiveness.
• Robust and Reliable: Features a 63 mm frame, three magnet stacks, and T winding for sustained operation.
• Secure Shaft Connection: Keyed shaft guarantees stable and secure power transmission.
• Flexible Connectivity: Utilizes a SpeedTec right-angle DIN connector for convenient installation.
• Voltage Compatibility: Designed for seamless integration with 480 VAC, 3-phase power systems.

Technical Specifications

• Catalog Number: VPL-B0633T-PJ12AA
• Brand: Allen-Bradley
• Motor Type: Servo Motor, Low-Inertia
• Rated Voltage: 480 VAC, 3-phase
• Rated Speed: 6750 RPM
• Frame Size: 63 mm bolt circle
• Magnet Stacks: 3
• Winding Type: T
• Encoder Type: Digital high-resolution, 18-bit single-turn + 12-bit multi-turn
• Shaft: Keyed
• Brake: Not included
• Connector Type: SpeedTec DIN, right-angle
• Mounting Style: IEC metric flange
• Protection Rating: IP50
• Operating Temperature: 0 °C to 40 °C
• Approximate Weight: 2.8 kg

Applications

• Automated Assembly Lines: Provides precise and rapid motion for robotic arms and pick-and-place systems.
• Semiconductor Manufacturing: Supports critical, high-accuracy positioning in delicate processes.
• High-Speed Packaging: Ideal for compact packaging machinery requiring swift and repeatable movements.
• Complex Material Handling: Enhances the performance of high-speed conveyors and feeders.
• OEM Automation Solutions: Perfect for original equipment manufacturers developing advanced motion control systems.
• Printing and Converting: Ensures accurate web control and high-speed operation in printing presses and converting equipment.

Why Choose This Model?

• Superior Speed & Control: Achieve peak operational efficiency with its 6750 RPM speed and smooth, precise control capabilities.
• Unmatched Positional Accuracy: The integrated multi-turn digital encoder provides exceptional feedback for even the most intricate positioning tasks.
• Optimized for Dynamic Setups: Engineered for environments demanding rapid stops and starts, without the need for a holding brake.
• Seamless Integration: Fully compatible with Allen-Bradley Kinetix 5500 and 5700 servo drives, simplifying system design and commissioning.
• Built for Industrial Durability: Designed to withstand challenging industrial conditions, ensuring long-term reliability and performance.
• Space-Saver Design: Its compact 63 mm frame is ideal for applications where space is at a premium without compromising power.

Order Now

Elevate your automation capabilities with the Allen-Bradley VPL-B0633T-PJ12AA low-inertia servo motor. This high-speed, precision-engineered component is readily available and ships worldwide to meet your immediate project needs. For a broader range of high-performance motion control solutions, explore our comprehensive selection of Kinetix VPL Low-Inertia Servo Motors. Additionally, discover the perfect match for any automation requirement by browsing our full inventory of Allen-Bradley Servo Motors today.
