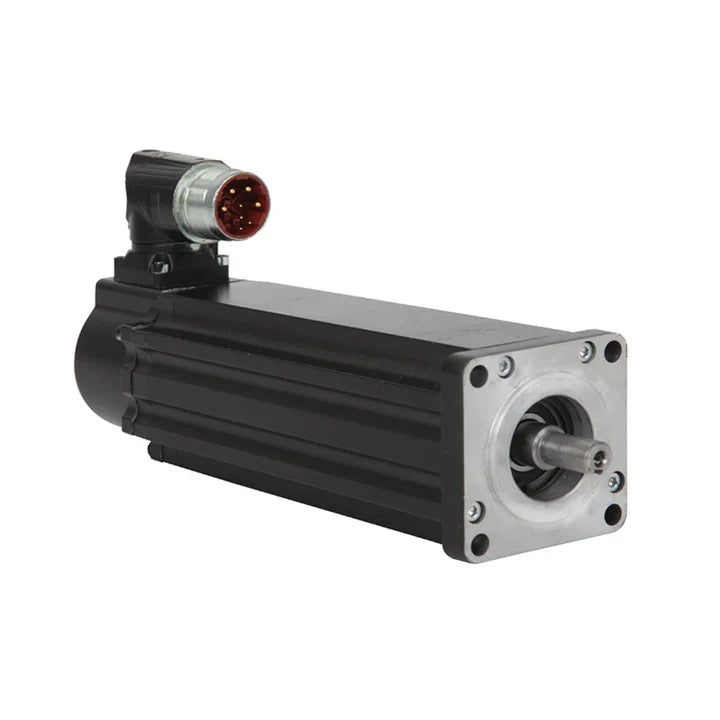

Allen-Bradley VPL-A0632F-PJ12AA

Overview

Experience unparalleled precision and responsiveness in your high-performance motion applications with the Allen-Bradley VPL-A0632F-PJ12AA Kinetix VP Low-Inertia Servo Motor. Engineered for exceptional agility, this robust servo motor operates efficiently at 240 VAC, making it an ideal choice for a diverse range of industrial automation needs. Featuring a compact 63 mm bolt circle frame and two magnet stacks, it delivers a powerful rated speed of 4500 RPM.

The VPL-A0632F-PJ12AA is equipped with a high-resolution multi-turn encoder, ensuring accurate positional feedback for critical operations. Its keyed shaft provides secure coupling, while the reliable SpeedTec right-angle DIN connector facilitates straightforward integration into existing systems. Designed without a holding brake, this model is perfectly suited for applications where dynamic deceleration is managed by the drive, optimizing for speed and continuous operation. This motor's low-inertia design contributes to its rapid acceleration and deceleration capabilities, crucial for dynamic industrial processes.

Key Features

• Optimized Performance: Operates at 240 VAC with a high-speed rating of 4500 RPM.
• Low-Inertia Design: Facilitates rapid acceleration and deceleration for dynamic applications.
• Precise Feedback: Integrated multi-turn high-resolution encoder for accurate positioning.
• Robust Construction: 63 mm bolt circle frame with two magnet stacks for durability.
• Secure Connectivity: Features a keyed shaft and a SpeedTec right-angle DIN connector.
• Compact Design: IEC metric flange mounting for easy installation in constrained spaces.

Technical Specifications

The Allen-Bradley VPL-A0632F-PJ12AA boasts a comprehensive set of technical specifications designed to meet demanding industrial requirements:

• Catalog Number: VPL-A0632F-PJ12AA
• Voltage Rating: 240 VAC, 3-phase
• Rated Speed: 4500 RPM
• Frame Size: 63 mm bolt circle
• Rotor Inertia: Low
• Magnet Stacks: 2
• Feedback: Multi-turn absolute high-resolution encoder
• Shaft Type: Keyed
• Connector: SpeedTec DIN, right-angle
• Holding Brake: Not included
• Mounting Style: IEC metric flange
• Enclosure: Standard industrial-grade
• Protection Rating: IP50
• Operating Temperature: 0 °C to 40 °C
• Weight: Approximately 2.6 kg

Applications

The versatility and high-performance characteristics of the VPL-A0632F-PJ12AA make it an excellent choice for a wide array of applications demanding precision and responsiveness:

• Robotics and Automation: Enhances the agility and accuracy of robotic arms and automated systems.
• Light-Duty Material Handling: Improves efficiency of conveyor systems and sorting machinery.
• Pick-and-Place Machinery: Provides the quick, precise movements required for high-speed placement.
• Compact OEM Equipment: Ideal for integration into smaller original equipment manufacturing designs.
• Precision-Driven Industrial Processes: Supports critical operations where exact motion control is paramount.
• Packaging and Labeling: Ensures consistent and rapid operation in packaging lines.

Why Choose This Model?

• Superior Motion Control: Achieve exceptionally smooth motion and rapid acceleration thanks to its advanced low-inertia design.
• Unwavering Accuracy: Benefit from highly accurate positioning capabilities delivered by the multi-turn high-resolution encoder feedback.
• Seamless Integration: Designed for easy compatibility with Allen-Bradley Kinetix servo drives, streamlining system setup and operation.
• Space-Saving Design: Its compact size and IEC metric flange mounting make it perfect for installations with limited panel space.
• Reliable Performance: Engineered for continuous duty in industrial environments, offering consistent and dependable operation at 240 VAC.
• Global Availability: This essential component is available for shipment worldwide, ensuring accessibility for your projects.

Order Now

Elevate your automation capabilities with the Allen-Bradley VPL-A0632F-PJ12AA Kinetix VP Low-Inertia Servo Motor. This high-performance motor is readily available and ready to ship worldwide to meet your project deadlines. For those seeking alternative solutions or expanding their motion control systems, we invite you to explore our comprehensive range of Kinetix VPL Low-Inertia Servo Motors, designed for high-performance and precise control. Additionally, discover the full breadth of our Allen-Bradley Servo Motors to find the perfect match for all your diverse automation needs.
