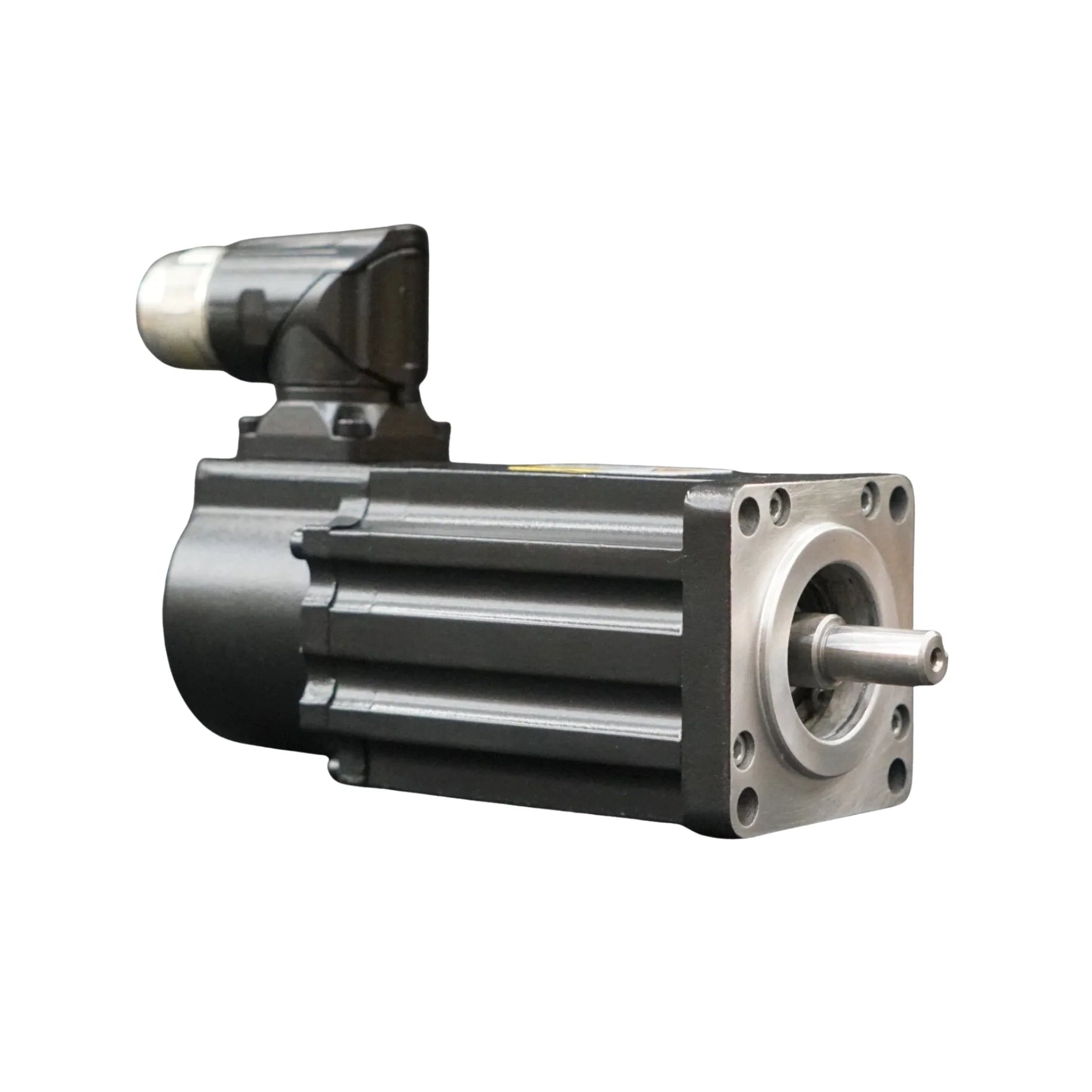

Allen-Bradley VPL-A0631E-PJ12AA

Overview

Elevate your motion control capabilities with the Allen-Bradley VPL-A0631E-PJ12AA, a high-performance low-inertia servo motor from the esteemed Kinetix VP series. Meticulously engineered for applications demanding rapid acceleration, precise positioning, and consistent operation, this compact motor delivers exceptional responsiveness in a robust package. Its design seamlessly integrates advanced technology with the reliability you expect from Allen-Bradley, making it an ideal choice for modern automation systems. The VPL-A0631E-PJ12AA is equipped with a 63 mm bolt circle frame, a single magnet stack, and is capable of reaching speeds up to an impressive 3500 RPM, ensuring dynamic performance for a wide range of industrial uses. This model, featuring E winding, an 18-bit single-turn and 12-bit multi-turn high-resolution encoder, a keyed shaft, and a SpeedTec right-angle DIN connector, is designed for optimal power and communication efficiency. Please note, this configuration does not include a holding brake, prioritizing agile motion over static holding. Powering your critical operations with 240 VAC, the VPL-A0631E-PJ12AA stands as a testament to efficient and precise engineering.

Key Features

• Dynamic Low-Inertia Design: Engineered for rapid acceleration and deceleration, ensuring swift and accurate positioning in demanding applications.
• High-Resolution Multi-Turn Encoder: Equipped with an 18-bit single-turn and 12-bit multi-turn encoder, providing absolute feedback for unparalleled precision and repeatability.
• Optimal 240 VAC Operation: Designed to efficiently integrate into 240 VAC, 3-phase power systems, delivering reliable performance with an E winding type.
• Compact 63 mm Frame: Features a space-saving 63 mm bolt circle frame and single magnet stack, perfect for installations with limited available space.
• Robust Keyed Shaft: Ensures secure and slip-free mechanical coupling, enhancing torque transfer and system reliability.
• SpeedTec Right-Angle DIN Connector: Facilitates convenient and secure electrical connections, optimizing cable management and installation efficiency.
• High-Speed Performance: Capable of achieving a rated speed of 3500 RPM, providing the velocity necessary for high-throughput machinery.

Technical Specifications

• Catalog Number: VPL-A0631E-PJ12AA
• Rated Voltage: 240 VAC, 3-phase
• Rated Speed: 3500 RPM
• Frame Size: 63 mm bolt circle
• Magnet Stacks: 1
• Winding Type: E
• Rotor Inertia: Low inertia
• Encoder Type: High-resolution digital, 18-bit single-turn + 12-bit multi-turn
• Shaft Type: Keyed
• Brake: Not included
• Connector Type: SpeedTec DIN, right-angle
• Mounting Style: IEC metric flange
• Protection Rating: IP50 (Standard industrial-grade enclosure)
• Operating Temperature: 0 °C to 40 °C
• Weight: Approximately 2.3 kg

Applications

• Compact Automation Equipment: Ideal for systems where space is at a premium but precise and dynamic motion is critical.
• Pick-and-Place Systems: Enhances efficiency and accuracy in robotic pick-and-place operations due to its low inertia and fast response.
• Medical and Laboratory Automation: Provides the precision and reliability required for sensitive instruments and automated laboratory procedures.
• OEM Machinery: Perfectly suited for integration into original equipment manufacturing requiring precise and repeatable motion control.
• Packaging Machinery: Improves throughput and accuracy in packaging lines, from filling to sealing, leveraging its speed and control.
• Material Handling Systems: Optimizes the movement and positioning of goods in automated material handling and assembly processes.

Why Choose This Model?

• Optimized for 240 VAC Systems: Specifically designed to integrate seamlessly with 240 VAC power, ensuring efficient and stable operation tailored for diverse industrial environments.
• Superior Motion Control: The low-inertia design guarantees rapid and accurate positioning with minimal overshoot, crucial for demanding, high-throughput applications.
• Absolute Positional Accuracy: Its advanced multi-turn encoder delivers absolute motion feedback, maintaining position even after power cycles, thereby boosting operational reliability and reducing homing times.
• Enhanced Mechanical Stability: The keyed shaft offers a robust and secure mechanical connection, preventing rotational slippage and extending the lifespan of coupled components.
• Unmatched Versatility and Integration: With its compact form factor and standard IEC metric flange mounting, the VPL-A0631E-PJ12AA is incredibly versatile, fitting into a wide array of existing and new machine designs.
• Allen-Bradley Reliability: Benefit from the renowned quality, durability, and global support associated with Allen-Bradley products, ensuring long-term performance and peace of mind.

Order Now

Empower your industrial automation with the advanced capabilities of the Allen-Bradley VPL-A0631E-PJ12AA low-inertia servo motor. This high-performance component is readily available and ready to ship worldwide, ensuring your operations can quickly benefit from its precision and reliability. Enhance your system's speed and accuracy by investing in a motor built for the future of manufacturing.
