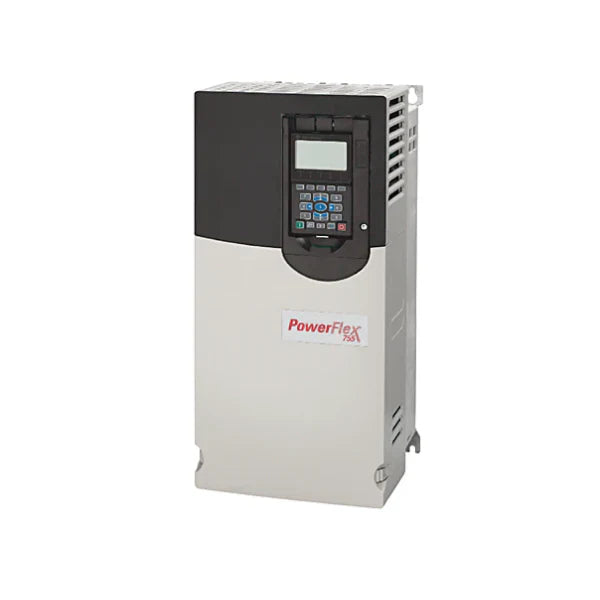

Allen Bradley 20G1ANF012JN0NNNNN

Overview

The Allen-Bradley PowerFlex 755 AC Drive, model 20G1ANF012JN0NNNNN, stands as a premier solution for advanced motor control across a multitude of industrial applications. Engineered by Rockwell Automation, this robust and versatile AC drive offers exceptional performance and reliability. It's meticulously designed to provide flexible motor control, integrating seamlessly into modern industrial environments through its embedded Ethernet/IP communication capabilities. This air-cooled, open-type (IP00) drive is particularly suited for demanding industrial settings, providing efficient and precise control for motors operating at 690V AC. Its dual rating capabilities—7.5kW Normal Duty and 5.5kW Heavy Duty—ensure adaptability to varying load profiles, making it an indispensable component for optimizing operational efficiency and reducing downtime in complex machinery and systems.

Key Features

• Embedded Ethernet/IP: Seamlessly integrates into existing EtherNet/IP networks, facilitating advanced control, real-time monitoring, and efficient data acquisition for enhanced operational insights.
• Air Cooled, Open Type (IP00): Provides efficient and reliable heat dissipation for standard industrial environments, while offering flexibility for integration into appropriate enclosures for optimal protection.
• 690V AC Input, 3-Phase: Specifically engineered for compatibility with high-voltage industrial power systems, setting it apart with significant advantages in certain application scenarios compared to lower voltage models.
• Dual Rating (7.5kW ND / 5.5kW HD): Offers exceptional flexibility to accommodate a wide spectrum of load profiles and application demands, optimizing motor performance and energy efficiency.
• AC Input with Precharge: Ensures a smooth and controlled startup sequence for motors, significantly reducing mechanical stress on both the motor and the drive components, thereby extending their operational lifespan.
• Integrated Filtering: Effectively mitigates electromagnetic interference (EMI), leading to enhanced system performance, superior reliability, and improved compliance within challenging industrial electromagnetic environments.
• CM Jumper Installed (Preferred): Designed with a common mode jumper installed, simplifying grounding procedures and significantly boosting electromagnetic compatibility (EMC) compliance for stable and interference-free operation.

Technical Specifications

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model: 20G1ANF012JN0NNNNN
• Type: AC Drive
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - Requires external enclosure for protection)
• Frame Size: 6
• Main Power Supply: 690 V AC, 3-Phase
• Current: 12 A
• Capacity: 7.5 kW (Normal Duty), 5.5 kW (Heavy Duty)
• Output Frequency: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Not Included
• Filtering: Included
• CM Jumper: Installed
• HIM (Human Interface Module): Not Included (Blank cover installed)
• Embedded Communications: Ethernet/IP
• DC Terminals: Not Included

Applications

• Pumps and Fans: Ideal for precision control in water/wastewater treatment, HVAC systems, and various industrial fluid handling processes.
• Conveyors and Material Handling: Excellently suited for manufacturing lines, logistics operations, and warehousing facilities requiring reliable and consistent material movement.
• Packaging and Automated Assembly: Enhances the efficiency and precision of automated production equipment, including packaging machines and robotic assembly lines.
• Machine Automation and Process Control: Provides robust motor control for complex industrial machinery, optimizing process accuracy and operational throughput.
• Textile and Woodworking Machinery: Delivers flexible and powerful motor management for specialized industrial equipment with intricate load demands.

Why Choose This Model?

• Unmatched Versatility: The dual ND/HD ratings ensure this drive can efficiently handle a wide range of industrial motor applications, adapting to different power demands with ease.
• Seamless Integration: With embedded Ethernet/IP, the 20G1ANF012JN0NNNNN offers superior connectivity and integration into modern control systems, streamlining data flow and enhancing supervision.
• High Voltage Compatibility: Specifically designed for 690V AC systems, providing a targeted and efficient solution for specialized high-voltage industrial power requirements.
• Enhanced Reliability: Features like integrated filtering and AC input with precharge contribute to a more stable and reliable operation, minimizing system disruptions and extending equipment life.
• Optimized Performance: This drive is engineered to deliver precise motor control, leading to improved energy efficiency, reduced wear on machinery, and overall superior operational performance.
• Rockwell Automation Quality: Benefit from the renowned quality, support, and innovation associated with Allen-Bradley and Rockwell Automation products, ensuring long-term satisfaction and performance.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley PowerFlex 755 AC Drive, model 20G1ANF012JN0NNNNN. This powerhouse drive is ready to revolutionize your motor control applications with its advanced features and robust design. Contact us today or visit our website to secure this essential component for your facility.
