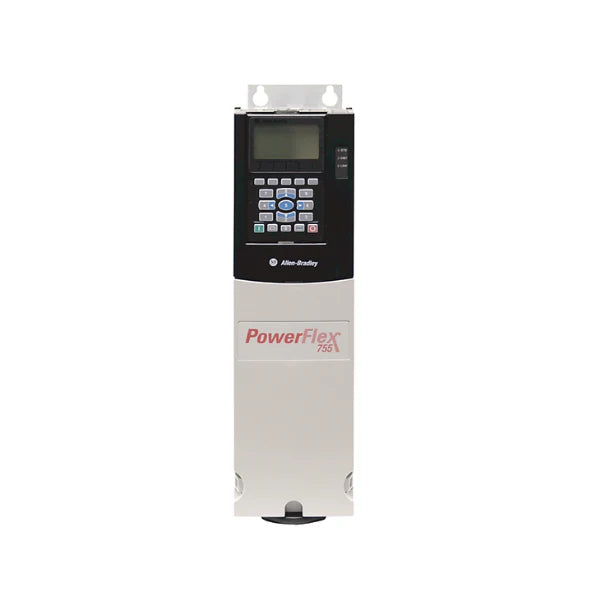

Allen Bradley 20G11RC5P0JA0NNNNN

Overview

Unlock superior motor control and enhance operational efficiency with the Allen-Bradley PowerFlex 755 AC Drive, model 20G11RC5P0JA0NNNNN. This compact yet powerful packaged drive from Rockwell Automation is engineered to meet the rigorous demands of various industrial applications. Designed for space-constrained environments, its Frame 1, open-type (IP00) construction, and air-cooled efficiency make it a versatile choice for modern industrial automation. Featuring dual Normal Duty (2.2kW) and Heavy Duty (1.5kW) ratings, this 400V drive offers unparalleled flexibility, ensuring optimal performance across a spectrum of load demands. Experience smooth, reliable operation with integrated features like AC input with precharge, EMI filtering, and a built-in DB transistor for dynamic braking. The PowerFlex 755 series is renowned for its robust design and advanced capabilities, making the 20G11RC5P0JA0NNNNN an essential component for any system requiring precise and efficient motor management.

Key Features

• Compact Frame 1 Design: Minimizes footprint, allowing for installation in tight spaces without compromising performance.
• Dual Rating Versatility: Offers 2.2kW Normal Duty and 1.5kW Heavy Duty ratings, providing flexibility for a wide range of applications and load profiles.
• 400V AC Input, 3-Phase: Seamless compatibility with standard industrial power systems, ensuring broad applicability.
• Integrated EMI Filtering: Reduces electromagnetic interference for enhanced system reliability and compliance.
• Built-in DB Transistor: Facilitates dynamic braking for rapid deceleration and precise motor control, improving operational safety and efficiency.
• AC Input with Precharge: Ensures a smooth and controlled motor startup, protecting both the drive and the motor from sudden stresses.
• Packaged Drive Solution: Simplifies installation and integration into existing systems, reducing setup time and overall costs.

Technical Specifications

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model: 20G11RC5P0JA0NNNNN
• Type: AC Packaged Drive
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - Requires external enclosure for full protection)
• Frame Size: 1
• Main Power Supply: 400 V AC, 3-Phase
• Current: 5 A
• Capacity (Normal Duty / Heavy Duty): 2.2 kW / 1.5 kW
• Output Frequency: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Included
• Filtering: Included (Integrated for EMI reduction)
• CM Jumper: Installed (For simplified grounding and EMC)
• HIM (Human Interface Module): Not Included (Blank)

Applications

• Pumps and Fans: Ideal for HVAC systems, water circulation, and other fluid handling applications demanding precise speed control.
• Conveyors and Material Handling: Enhances efficiency and control in manufacturing, warehousing, and logistics assembly lines.
• Packaging Machinery: Optimizes performance for automated packaging and assembly processes, ensuring smooth operation.
• Textile and Light Industrial Equipment: Provides reliable motor control for various light industrial machines.
• Process Control: Suitable for simple machine automation and process control applications requiring dependable motor management.

Why Choose This Model?

• Space Efficiency: Its compact Frame 1 design is specifically engineered for environments where installation space is at a premium, making it a versatile solution for modern industrial setups.
• Unmatched Versatility: The dual Normal Duty and Heavy Duty ratings provide exceptional adaptability, allowing this single drive to efficiently manage diverse load characteristics and application demands.
• Robust and Reliable Performance: Engineered by Rockwell Automation, a leader in industrial automation, this drive guarantees durable operation and consistent performance in demanding industrial settings.
• Simplified Integration: As a packaged drive with integrated features like filtering and a DB transistor, it significantly reduces installation complexity and time, facilitating quicker deployment.
• Enhanced Motor Protection: Features such as AC input with precharge ensure controlled startup, minimizing stress on your motors and extending their lifespan.

Order Now

Elevate your industrial processes with the Allen-Bradley PowerFlex 755 AC Drive 20G11RC5P0JA0NNNNN. Experience the benefits of compact design, powerful performance, and unparalleled reliability. Contact us today to secure this essential component for your automation needs and optimize your operational efficiency!
