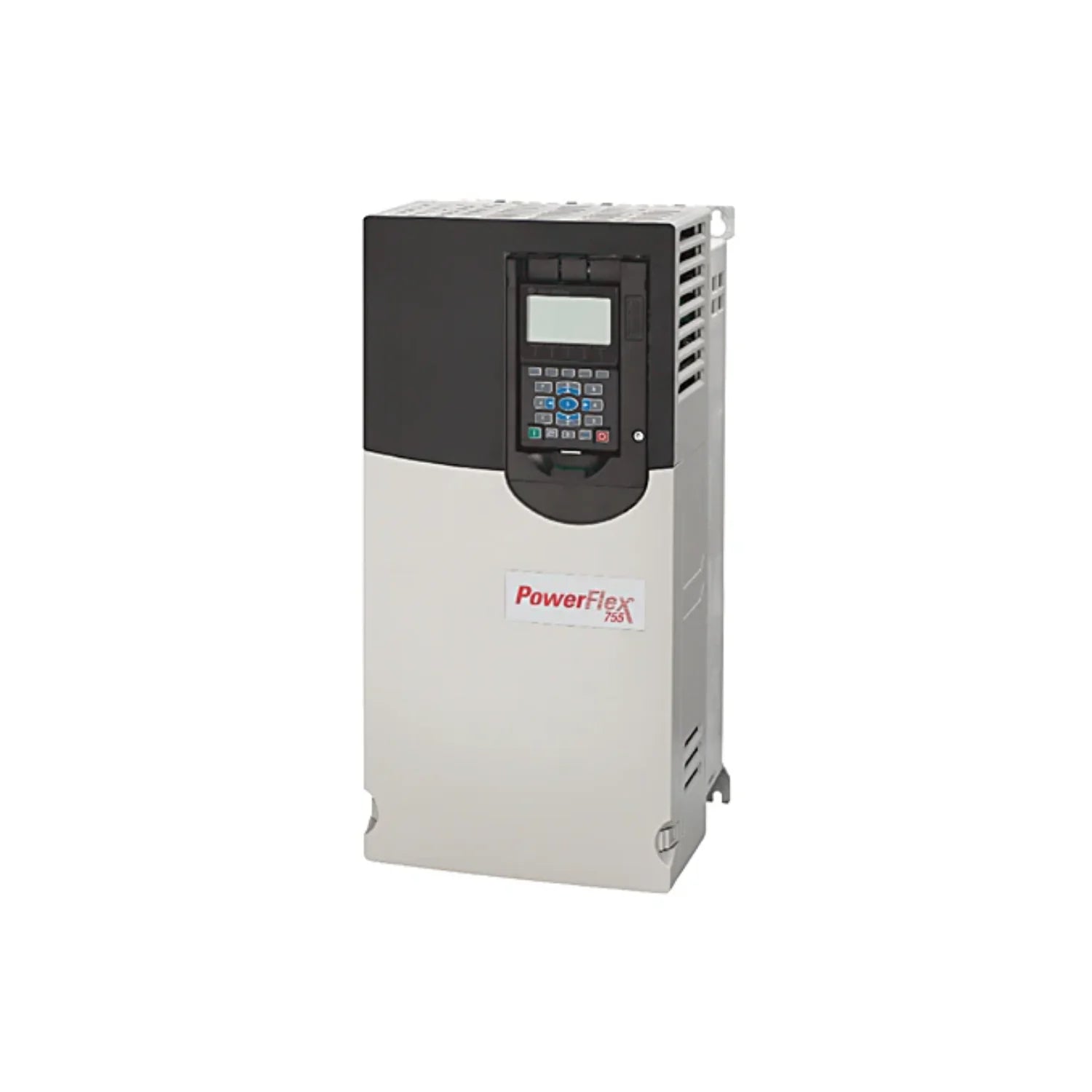

Allen-Bradley 20G11ND096AA0NNNNN

Overview

The Allen-Bradley 20G11ND096AA0NNNNN PowerFlex 755 AC Drive is engineered for superior motor control in the most demanding industrial environments. This high-performance drive delivers precise and efficient operation for a wide range of applications, ensuring optimal productivity and reliability. With its robust design and advanced features, it's an indispensable component for modern automation and manufacturing systems. Operating at 480V AC, this 3-phase drive provides an impressive output current of 96A, supporting up to 75HP for normal duty and 60HP for heavy-duty applications. Its air-cooled design guarantees efficient heat dissipation, maintaining peak performance even under strenuous conditions. The integrated filtered configuration effectively reduces electrical noise, contributing to a cleaner and more stable operation of your machinery. Furthermore, the inclusion of a dynamic braking (DB) transistor significantly enhances braking capabilities, making it ideal for managing high-inertia loads with precision and safety.

Key Features

• High-Performance Power Handling: Delivers 480V AC, 3-phase input with a 96A output current, supporting 75HP for normal duty and 60HP for heavy duty applications.
• Efficient Air-Cooled Design: Ensures reliable and consistent performance by effectively dissipating heat, extending the lifespan of the drive.
• Advanced Noise Reduction: Features a filtered configuration to minimize electrical noise, improving system stability and signal integrity.
• Enhanced Braking Capabilities: Equipped with a dynamic braking (DB) transistor for superior control over high-inertia loads, ensuring quick and safe stops.
• Industrial Application Compliance: Common mode (CM) jumper removed to meet specific industrial grounding requirements, ensuring seamless integration into complex systems.
• Flexible Installation: Open-type enclosure design is perfect for panel mounting within electrical control panels, offering versatile placement options.
• Scalable Programming: Designed for external programming interfaces, providing flexibility and compatibility with various human machine interface (HMI) solutions.

Technical Specifications

• Model: 20G11ND096AA0NNNNN
• Series: PowerFlex 755
• Input Voltage: 480V AC
• Phase: 3-Phase
• Output Current: 96A
• Power Rating:
  • 75HP (Normal Duty)
  • 60HP (Heavy Duty)
• Cooling Method: Air Cooled
• Input Configuration: 6-Pulse AC Input
• Enclosure Type: Open
• Filter: Included
• Dynamic Braking Transistor: Yes
• CM Jumper: Removed
• HIM (Human Interface Module): Not Included
• Mounting: Control Panel

Applications

• Precision Industrial Motor Control: Provides variable speed control for a wide array of industrial motors, optimizing performance across diverse applications.
• Manufacturing and Automation Systems: Enhances productivity and efficiency in automated production lines, robotics, and other manufacturing processes.
• Pumps, Fans, and Compressors: Ideal for managing the speed and torque of fluid handling systems, ensuring energy efficiency and stable operation.
• Material Handling and Conveyor Systems: Delivers smooth and controlled operation for conveyor belts, hoists, and other material transport mechanisms.
• High-Inertia Load Management: Effectively controls high-inertia loads in applications such as centrifuges, crushers, and large rotating machinery, thanks to its dynamic braking capabilities.

Why Choose This Model?

• Unmatched Performance: The Allen-Bradley 20G11ND096AA0NNNNN offers a powerful combination of 480V AC input, 96A output current, and up to 75HP, making it a robust solution for demanding industrial tasks.
• Enhanced Safety and Control: With its integrated dynamic braking transistor, this drive provides superior stopping power, crucial for applications requiring precise control of high-inertia loads and ensuring operational safety.
• Reliability in Harsh Environments: Designed with an air-cooled system and a filtered configuration, it maintains optimal performance and reduces electrical noise, extending the lifespan and reliability of your equipment in challenging industrial settings.
• Seamless Integration: The drive's open-type enclosure and removed CM jumper are tailored for easy integration into existing control panels and compliance with specific industrial grounding requirements, streamlining installation and setup.
• Future-Proof Flexibility: While not including an HIM, its design requiring an external programming interface offers greater flexibility and compatibility with a broader range of control systems and HMI solutions, adapting to evolving technological landscapes.
• Trusted Allen-Bradley Quality: Benefit from the renowned quality, durability, and support associated with the Allen-Bradley brand, ensuring a long-term, high-performance solution for your automation needs.

Order Now

Experience the precision, power, and reliability of the Allen-Bradley 20G11ND096AA0NNNNN PowerFlex 755 AC Drive. Take advantage of our fast shipping and worldwide delivery options to upgrade your industrial control systems today.
