Allen Bradley 20G1ANF142JN0NNNNN

Overview

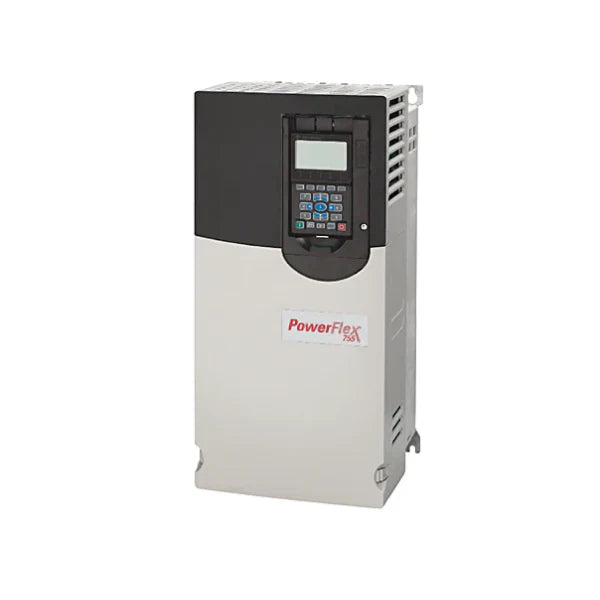

Experience unparalleled power and precision with the Allen-Bradley PowerFlex 755 20G1ANF142JN0NNNNN AC Drive. Engineered by Rockwell Automation, this robust variable frequency drive is specifically designed for demanding industrial automation applications requiring operation at 690V. Its air-cooled, open-type design ensures reliable and efficient motor control for high-power machinery, making it an ideal solution for critical industrial processes. A standout feature is the embedded EtherNet/IP, which facilitates seamless network integration for advanced monitoring, control, and data acquisition, enhancing operational efficiency and system diagnostics. This Frame 6 drive offers exceptional versatility with dual Normal Duty (ND) and Heavy Duty (HD) ratings, accommodating a wide range of load requirements. Optimized for 690V AC operation, this model confidently delivers the performance and reliability expected from Allen-Bradley.

Key Features

• Embedded EtherNet/IP: Enables direct and seamless integration into EtherNet/IP networks for advanced control, real-time monitoring, and efficient data acquisition, streamlining your automation infrastructure.
• High-Voltage 690V AC Input: Specifically designed for 3-phase, 690V industrial power systems, making it a critical component for high-voltage applications and a key differentiator in its class.
• Dual Rating Versatility (132kW ND / 110kW HD): Provides exceptional flexibility to support diverse load profiles and application requirements, from continuous operation (Normal Duty) to more strenuous, intermittent tasks (Heavy Duty).
• Air-Cooled, Open Type (IP00): Features an efficient air-cooling system suitable for standard industrial environments, ensuring optimal thermal management. (Note: Requires appropriate enclosure for environmental protection).
• AC Input with Precharge: Guarantees a smooth and controlled motor startup sequence, significantly reducing mechanical stress on the motor and extending the lifespan of drive components.
• Integrated Filtering: Minimizes electromagnetic interference (EMI), leading to improved system performance, enhanced reliability, and compliance in electrically sensitive industrial environments.
• CM Jumper Installed (Preferred): Simplifies grounding configurations and inherently boosts electromagnetic compatibility (EMC) compliance, ensuring stable and interference-free operation.

Technical Specifications

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model Number: 20G1ANF142JN0NNNNN
• Type: AC Drive / Variable Frequency Drive (VFD)
• Cooling Method: Air Cooled
• Enclosure Type: Open Type (IP00 – Requires external enclosure for protection)
• Frame Size: 6
• Main Power Supply: 690 V AC, 3-Phase
• Output Current: 142 A
• Capacity (Normal Duty): 132 kW
• Capacity (Heavy Duty): 110 kW
• Output Frequency Range: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Not Included
• Filtering: Included
• CM Jumper: Installed
• HIM (Human Interface Module): Not Included (Blank Plate)
• Embedded Communications: EtherNet/IP
• DC Terminals: Not Included

Applications

The Allen-Bradley PowerFlex 755 20G1ANF142JN0NNNNN AC Drive is perfectly suited for a diverse array of demanding industrial applications operating at 690V, where high performance, reliability, and precision motor control are paramount. Its robust design and advanced features make it an invaluable asset across various sectors:

• High-Power Pumping and Fan Systems: Ideal for large pumps and fans in industrial processes, extensive HVAC systems, and critical water/wastewater treatment plants requiring efficient flow and pressure control.
• Heavy-Duty Conveyor and Material Handling Systems: Excellently controls motors in substantial conveyor belts, crane applications, and sophisticated material handling equipment within manufacturing, warehousing, and logistics operations.
• Large Packaging and Automated Production Lines: Drives complex machinery in large-scale packaging lines, automated assembly facilities, and other high-throughput production equipment, ensuring precise synchronization and throughput.
• High-Power Machine Automation and Process Control: Essential for critical machine automation tasks and sensitive process control systems where exact motor speed and torque regulation are vital for product quality and operational consistency.
• Metalworking and Woodworking Machinery: Powers substantial machinery in metal fabrication facilities, woodworking shops, and CNC applications, delivering the necessary power and control for precision cutting, shaping, and milling.

Why Choose This Model?

• Optimized for 690V Operations: Specifically engineered to excel in high-voltage industrial environments, offering a tailored solution for complex power systems where standard drives may not suffice.
• Seamless Network Integration: With embedded EtherNet/IP, this drive drastically simplifies integration into existing and new automation networks, reducing installation time and enhancing system-wide communication and control.
• Versatile Performance: The dual Normal Duty and Heavy Duty ratings ensure that this drive can precisely meet a broad spectrum of application demands, providing maximum flexibility and efficiency for varied operational loads.
• Enhanced System Reliability: Features like integrated filtering, CM jumper installation, and AC input with precharge collectively contribute to a more stable, reliable, and compliant operation, minimizing downtime and maintenance.
• Robust Allen-Bradley Quality: As a product from Rockwell Automation, you benefit from industry-leading engineering, proven reliability, and access to a global support network, ensuring your investment is secure and performs consistently.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley PowerFlex 755 20G1ANF142JN0NNNNN AC Drive. Designed for peak performance in high-voltage applications, this drive delivers the precision, power, and connectivity your operations demand. Contact us today or visit DDPARTSSOLUTION to secure your advanced motor control solution and optimize your industrial processes.
