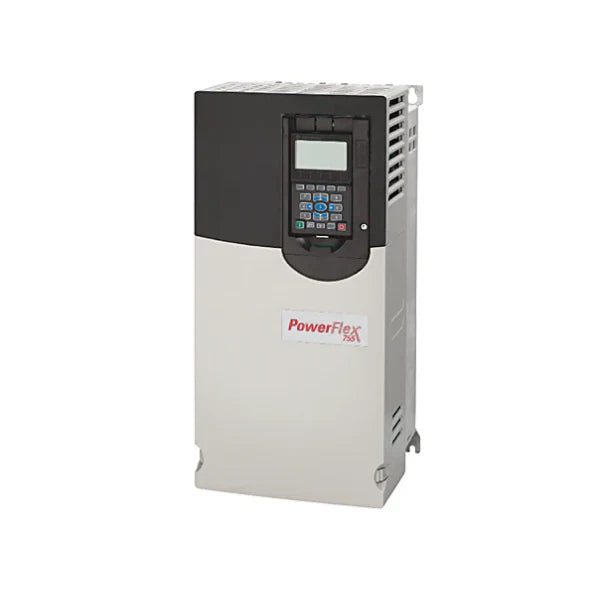

Allen Bradley 20G1ANF098JN0NNNNN

Overview

Experience robust and precise motor control for demanding industrial environments with the Allen-Bradley PowerFlex 755 20G1ANF098JN0NNNNN AC Drive. This high-performance, air-cooled, open-type drive is engineered for 690V applications, offering unparalleled efficiency and reliability. Featuring embedded EtherNet/IP, the 20G1ANF098JN0NNNNN seamlessly integrates into your existing network for advanced control, monitoring, and data acquisition. Its dual 90kW Normal Duty (ND) and 75kW Heavy Duty (HD) ratings provide exceptional versatility, making it ideal for a wide range of high-power industrial machinery and processes. As a Frame 6 drive, it's built for significant power delivery while its thoughtful design, including precharge AC input and integrated filtering, ensures smooth, controlled operation and enhanced system longevity. This specific model is designed without DC terminals, optimizing it for AC-centric systems.

Key Features

• Embedded EtherNet/IP Connectivity: Enjoy seamless integration into your industrial network for real-time control, diagnostics, and data exchange, enhancing operational efficiency and predictive maintenance.
• Optimized for 690V AC Applications: Specifically engineered to handle high-voltage industrial power systems, making it a critical component for demanding, large-scale operations.
• Versatile Dual Duty Ratings: Provides both 90kW Normal Duty and 75kW Heavy Duty ratings, offering flexible application across varied load profiles and ensuring optimal motor performance.
• Air Cooled, Open Type (IP00) Design: Efficiently dissipates heat for reliable performance in standard industrial environments, while its open design allows for integration into appropriate existing enclosures.
• AC Input with Precharge Functionality: Guarantees a smooth and controlled motor startup, significantly reducing wear and tear on both the motor and the drive components.
• Integrated EMI Filtering: Minimizes electromagnetic interference, ensuring stable and reliable system operation in electromagnetically challenging industrial settings.
• Frame 6 Robust Construction: Designed as a durable Frame 6 unit, built to withstand rigorous industrial conditions and deliver consistent, long-term performance.

Technical Specifications

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model Number: 20G1ANF098JN0NNNNN
• Type: AC Drive
• Cooling Method: Air Cooled
• Enclosure Rating: Open Type (IP00 – Requires external enclosure for protection)
• Frame Size: 6
• Main Power Supply: 690 V AC, 3-Phase
• Rated Current: 98 A
• Capacity (Normal Duty / Heavy Duty): 90 kW (Normal Duty), 75 kW (Heavy Duty)
• Output Frequency Range: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Not Included
• Internal Filtering: Included
• CM Jumper: Installed (Preferred Configuration)
• HIM (Human Interface Module): Not Included (Blank)
• Embedded Communications: EtherNet/IP
• DC Terminals: Not Included

Applications

• High-Power Pumping and Fan Systems: Ideal for demanding HVAC, water/wastewater treatment plants, and industrial process systems requiring precise control of large pumps and fans.
• Heavy-Duty Material Handling: Excel in driving conveyors, cranes, and automated storage/retrieval systems in manufacturing, logistics, and warehousing operations.
• Automated Production Lines: Perfectly suited for large-scale packaging machinery, robotic assembly, and other automated equipment where precise speed and torque control are critical.
• High-Voltage Machine Automation: Provides reliable motor control for complex industrial machinery and process control systems operating at 690V.
• Textile and Woodworking Machinery: Powers large-scale textile equipment, woodworking machines, and other industrial tools requiring robust and consistent motor performance.

Why Choose This Model?

• Unmatched Reliability for 690V Systems: Engineered specifically for high-voltage industrial applications, ensuring stable and efficient operation where conventional drives may fall short.
• Seamless Network Integration: Embedded EtherNet/IP capabilities drastically simplify integration into your control architecture, offering advanced diagnostics and streamlined data management.
• Optimal Performance and Flexibility: With dual duty ratings and precise motor control, this drive adapts to various load requirements, extending equipment lifespan and reducing energy consumption.
• Robust Industrial Design: Built by Rockwell Automation, a leader in industrial automation, ensuring a durable product that can withstand challenging operational conditions.
• Enhanced System Protection: Features like AC input with precharge and integrated filtering contribute to a more stable electrical environment, protecting both the drive and connected machinery.
• Future-Ready Investment: Investing in a high-quality, feature-rich drive like the PowerFlex 755 20G1ANF098JN0NNNNN minimizes downtime and optimizes operational costs, providing long-term value.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley PowerFlex 755 20G1ANF098JN0NNNNN AC Drive. Contact us today to learn more about how this powerful and versatile solution can optimize your high-voltage motor control applications. Enhance your operational efficiency and ensure reliable performance with this cutting-edge Rockwell Automation product.
