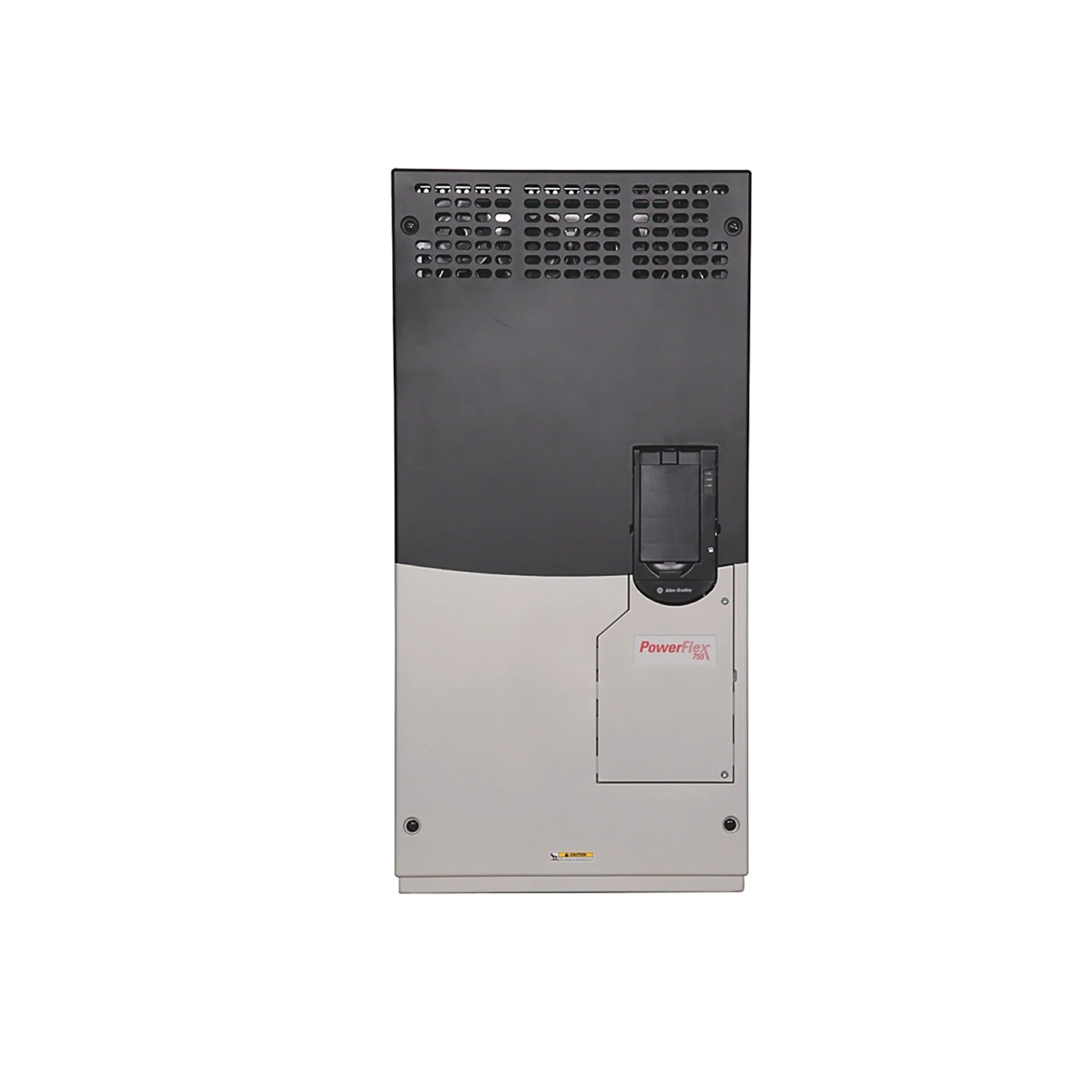

Allen Bradley 20G1ANC456JN0NNNNN

Overview

Experience unparalleled power and precision with the Allen-Bradley PowerFlex 755 20G1ANC456JN0NNNNN AC Drive. Engineered by Rockwell Automation, this robust drive is designed for the most demanding heavy industrial applications, providing massive and precise motor control where it matters most. As a Frame 7 drive, the largest in its series, it handles extreme power requirements with exceptional reliability and efficiency. Its embedded Ethernet/IP ensures seamless network integration, making it a cornerstone for advanced automation systems. With dual Normal Duty (ND) and Heavy Duty (HD) ratings, this drive offers superior versatility for a wide range of intense load profiles, all within a 400V AC, 3-phase system.

Key Features

• Embedded Ethernet/IP: Facilitates effortless integration into EtherNet/IP networks for comprehensive control, monitoring, and data acquisition, optimizing operational efficiency.
• Extreme Power Output: Delivers 250 kW (Normal Duty) and 200 kW (Heavy Duty) at 400V, making it ideal for the most power-hungry industrial machinery.
• Air-Cooled, Open Type (IP00): Efficient air cooling suitable for various industrial environments, requiring appropriate enclosure for protection.
• Integrated Filtering: Minimizes electromagnetic interference (EMI), ensuring stable system performance and reliability, even in harsh industrial settings.
• AC Input with Precharge: Guarantees smooth and controlled motor startups, significantly reducing stress on both the motor and drive components.
• CM Jumper Installed: Simplifies grounding procedures and enhances electromagnetic compatibility (EMC) compliance, crucial for robust system operation.
• Frame 7 Design: As the largest frame size in the PowerFlex 755 series, it signifies a robust build for high-power applications, necessitating careful consideration for installation space and cooling.

Technical Specifications

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model: 20G1ANC456JN0NNNNN
• Type: AC Drive
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - Requires enclosure for protection)
• Frame Size: 7
• Main Power Supply: 400 V AC, 3-Phase
• Current: 456 A
• Capacity: 250 kW (Normal Duty), 200 kW (Heavy Duty)
• Output Frequency: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Not Included
• Filtering: Included
• CM Jumper: Installed
• HIM (Human Interface Module): Not Included (Blank)
• Embedded Communications: Ethernet/IP
• DC Terminals: Not Included

Applications

The Allen-Bradley PowerFlex 755 20G1ANC456JN0NNNNN AC Drive is perfectly suited for the most demanding and critical heavy industrial applications where precise and powerful motor control is paramount:

• Large-Scale Pumps and Fans: Ideal for managing very large pumps and fans in critical industrial processes, ensuring reliable flow and ventilation.
• Conveyor Systems: Provides robust control for heavy-duty conveyor systems in mining, manufacturing, and material handling.
• Mixers and Extruders: Offers stable and powerful operation for industrial mixers and extruders in chemical processing and plastics manufacturing.
• Compressors: Ensures efficient and consistent performance for large industrial compressors.
• Paper and Pulp Machines: Capable of handling the high power demands and precision required by paper and pulp processing equipment.

Why Choose This Model?

• Unmatched Power: With 250kW ND / 200kW HD capacity, this drive tackles the most intensive tasks with ease.
• Rockwell Automation Reliability: Trust in the proven quality and performance of Allen-Bradley, a leader in industrial automation.
• Seamless Integration: Embedded Ethernet/IP ensures effortless integration into your existing or new control systems, providing advanced communication capabilities.
• Robust Design: Engineered for durability, its Frame 7 construction and comprehensive features ensure longevity and consistent operation in harsh environments.
• Optimized Performance: Advanced features like integrated filtering and AC input with precharge contribute to a smoother, more reliable, and efficient operation of your motors.

Order Now

Elevate your industrial operations with the Allen-Bradley PowerFlex 755 20G1ANC456JN0NNNNN AC Drive. Contact us today to secure this powerful and reliable solution for your most critical applications.
