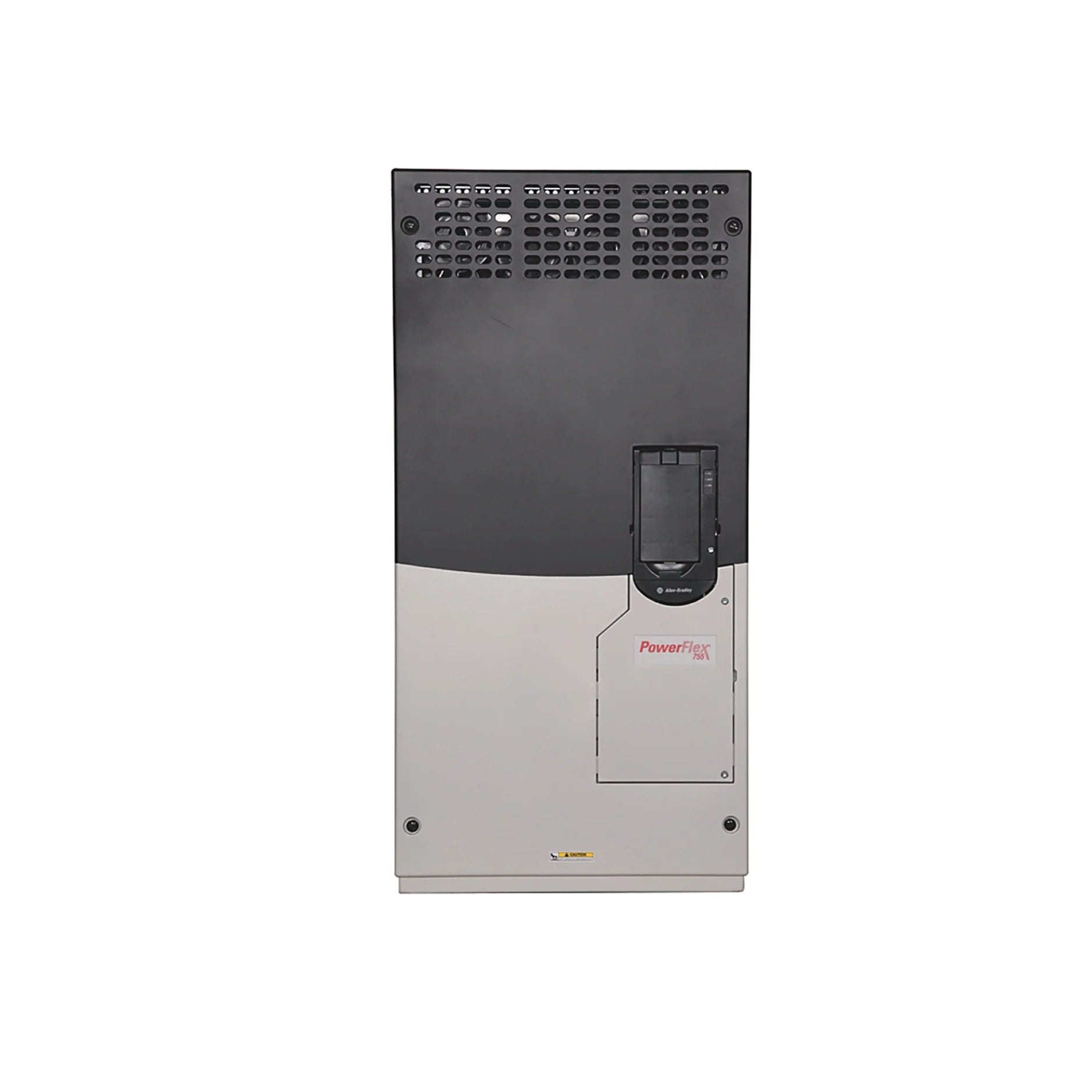

Allen Bradley 20G1ANC367JN0NNNNN

Overview

Unlock unparalleled power and precision in your most demanding industrial applications with the Allen-Bradley PowerFlex 755 20G1ANC367JN0NNNNN AC Drive. This high-performance, open-type drive, specifically designed for heavy industrial environments, delivers exceptional motor control for critical processes requiring significant and accurate power delivery. Featuring an impressive 200kW Normal Duty (ND) and 160kW Heavy Duty (HD) rating at 400V, this Frame 7 drive integrates seamlessly into modern automation infrastructures via its embedded Ethernet/IP. Experience robust, air-cooled operation, integrated filtering for EMI reduction, and the reliability synonymous with Allen-Bradley, ensuring your operations run smoothly and efficiently.

Key Features

• Embedded Ethernet/IP: Facilitates seamless integration into EtherNet/IP networks for advanced control, real-time monitoring, and efficient data acquisition, enhancing your automation capabilities.
• High Power Dual Rating (200kW ND / 160kW HD): Provides unparalleled flexibility to handle diverse and extremely demanding load requirements, optimizing performance for a wide array of applications.
• Air Cooled, Open Type (IP00): Engineered for efficient cooling in standard industrial environments, ensuring reliable operation even during continuous, high-power usage. (Note: Requires appropriate external enclosure for environmental protection).
• Robust 400V AC Input, 3-Phase: Fully compatible with common industrial power systems, ensuring broad applicability and straightforward integration.
• Integrated Filtering: Significantly reduces electromagnetic interference (EMI), leading to improved system performance, enhanced reliability, and greater compliance in harsh industrial settings.
• AC Input with Precharge: Guarantees a smooth and controlled motor startup sequence, minimizing stress on both the motor and the drive components for extended operational life.
• CM Jumper Installed: Simplifies grounding procedures and proactively enhances electromagnetic compatibility (EMC) compliance, contributing to a more stable and interference-free operational environment.

Technical Specifications

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model: 20G1ANC367JN0NNNNN
• Type: AC Drive
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - Requires external enclosure for protection)
• Frame Size: 7
• Main Power Supply: 400 V AC, 3-Phase
• Current: 367 A
• Capacity: 200 kW (Normal Duty), 160 kW (Heavy Duty)
• Output Frequency: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Not Included
• Filtering: Included
• CM Jumper: Installed
• HIM (Human Interface Module): Not Included (Blank)
• Embedded Communications: Ethernet/IP
• DC Terminals: Not Included

Applications

This exceptionally high-power Allen-Bradley AC drive is perfectly suited for the most demanding and critical heavy industrial applications where precision, reliability, and high torque are paramount:

• Large-scale Pumps and Fans: Ideal for managing very large pumps, industrial blowers, and ventilation systems in critical process industries such as water treatment, petrochemicals, and power generation.
• Heavy Material Handling Systems: Excellently controls large conveyors, cranes, and hoists in mining, port operations, and manufacturing plants.
• Industrial Mixers and Agitators: Provides precise speed control for powerful mixers used in chemical, food processing, and pharmaceutical industries.
• Extruders and Mills: Manages the high torque requirements of extrusion processes and various milling applications in metal, plastic, and food production.
• Pulp and Paper Machines: Suitable for driving large sections of paper machines and other continuous process lines.
• Automotive Manufacturing: Utilized in stamping presses, paint shop conveyors, and other heavy machinery requiring robust motor control.

Why Choose This Model?

• Unmatched Power and Versatility: With its high 200kW ND / 160kW HD ratings and flexible operation, this drive handles the most extreme industrial loads with ease.
• Seamless Integration with Ethernet/IP: Future-proof your automation infrastructure with integrated Ethernet/IP, ensuring advanced control, real-time data, and reduced wiring complexity.
• Built for Demanding Environments: Designed as an air-cooled, open-type Frame 7 unit with integrated filtering, it offers robust performance and EMI reduction in harsh industrial settings.
• Allen-Bradley Reliability: Invest in the proven quality and global support of Allen-Bradley, ensuring long-term operational stability and peace of mind.
• Optimized Motor Protection: Features like AC input with precharge minimize stress on motors and drive components, extending equipment lifespan and reducing maintenance.

Order Now

Elevate your industrial operations with the Allen-Bradley PowerFlex 755 20G1ANC367JN0NNNNN AC Drive. Contact us today to secure this powerful, reliable, and intelligently designed solution for your most critical applications.
