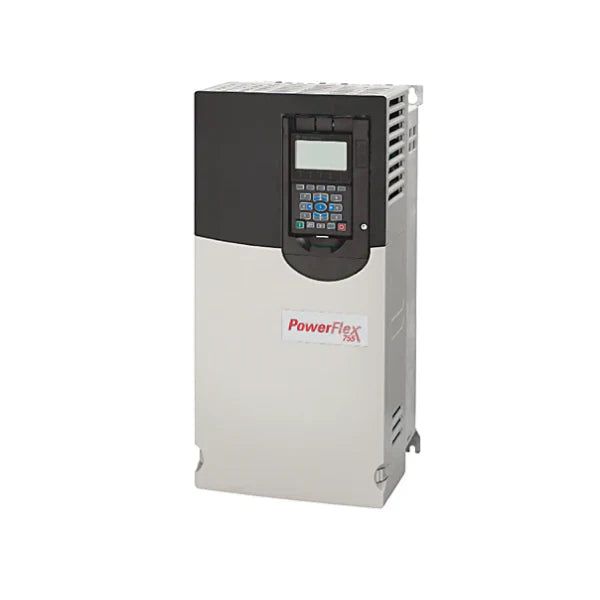

Allen Bradley 20G1ANC205JN0NNNNN

Overview

Elevate your industrial automation capabilities with the Allen-Bradley PowerFlex 755 20G1ANC205JN0NNNNN AC Drive. Engineered by Rockwell Automation, this high-performance variable frequency drive (VFD) is meticulously designed to deliver precise and powerful motor control for the most demanding applications. Whether you're driving large pumps, heavy-duty conveyors, or complex material handling systems, this drive provides the reliability and efficiency essential for continuous operation. Featuring an air-cooled, open-type design, it seamlessly integrates into your existing infrastructure while offering exceptional power output with dual 110kW Normal Duty (ND) and 90kW Heavy Duty (HD) ratings at 400V. The inclusion of embedded EtherNet/IP communication ensures unparalleled connectivity and simplified integration into modern industrial networks, making it a cornerstone for advanced control and monitoring strategies. Its robust Frame 6 construction signifies its capacity for significant power delivery, ensuring longevity and consistent performance in challenging industrial environments. This specific model is a testament to Rockwell Automation's commitment to innovation and industrial excellence, providing a sophisticated solution for optimizing motor control and overall system efficiency.

Key Features

• Embedded EtherNet/IP Communication: Facilitates seamless integration and advanced control within modern Ethernet/IP networks, providing real-time data and enhanced monitoring capabilities.
• Dual Power Ratings (110kW ND / 90kW HD): Offers exceptional versatility to adapt to diverse load profiles, ensuring optimal performance for both normal and heavy-duty industrial applications.
• 400V AC, 3-Phase Input: Compatible with common industrial power systems, ensuring ease of installation and operational flexibility.
• Air Cooled, Open Type (IP00): Provides efficient heat dissipation for reliable operation in standard industrial conditions, requiring an appropriate enclosure for full protection.
• Integrated Filtering: Minimizes electromagnetic interference (EMI), contributing to improved system stability, reduced downtime, and compliance with industrial standards.
• Built-in DB Transistor: Enables dynamic braking for quick, precise motor deceleration and stopping, crucial for applications requiring rapid response and enhanced safety.
• AC Input with Precharge: Ensures a smooth and controlled startup, safeguarding both the motor and drive components from electrical stress and extending equipment lifespan.

Technical Specifications

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model: 20G1ANC205JN0NNNNN
• Type: AC Drive
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - Requires enclosure for protection)
• Frame Size: 6
• Main Power Supply: 400 V AC, 3-Phase
• Current: 205 A
• Capacity: 110 kW (Normal Duty), 90 kW (Heavy Duty)
• Output Frequency: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Included
• Filtering: Included
• CM Jumper: Installed
• DC Terminals: Not Included
• HIM (Human Interface Module): Not Included (Blank)

Applications

The Allen-Bradley PowerFlex 755 20G1ANC205JN0NNNNN AC Drive is ideally suited for a broad spectrum of demanding industrial applications where robust and precise motor control is paramount:

• Heavy Industrial Pumping and Ventilation: Powering large-scale pumps and fans in water/wastewater treatment, HVAC systems, and other critical process industries.
• Material Handling and Logistics: Controlling high-capacity conveyors, cranes, and other complex material transport systems in manufacturing, warehousing, and mining operations.
• Packaging Machinery: Driving large and sophisticated packaging lines that require high torque and precise speed control for optimal throughput.
• Mixers and Agitators: Providing consistent and controlled motion for industrial mixers and agitators in chemical processing, food and beverage, and pharmaceutical industries.
• Machine Tool Applications: Offering reliable performance for various machine tools requiring precise motor speed and torque regulation.

Why Choose This Model?

• Unmatched Reliability: Built with Rockwell Automation's renowned quality, ensuring long-term dependable operation in harsh industrial environments.
• Superior Performance: Delivers precise motor control and high power output (110kW ND / 90kW HD) for the most challenging applications, enhancing productivity and efficiency.
• Seamless Integration: Embedded EtherNet/IP allows for straightforward integration into modern control systems, simplifying commissioning and monitoring.
• Optimized for Heavy-Duty: Designed to withstand rigorous demands, offering flexibility with dual ratings to suit diverse operational requirements.
• Enhanced System Protection: Features like AC input with precharge and integrated filtering protect your motor and drive, extending their operational lifespan.

Order Now

Invest in the Allen-Bradley PowerFlex 755 20G1ANC205JN0NNNNN AC Drive from DDPARTSSOLUTION today and experience the difference of high-performance, reliable motor control. Optimize your industrial processes, reduce downtime, and achieve greater operational efficiency. Contact us for competitive pricing and expert support.
