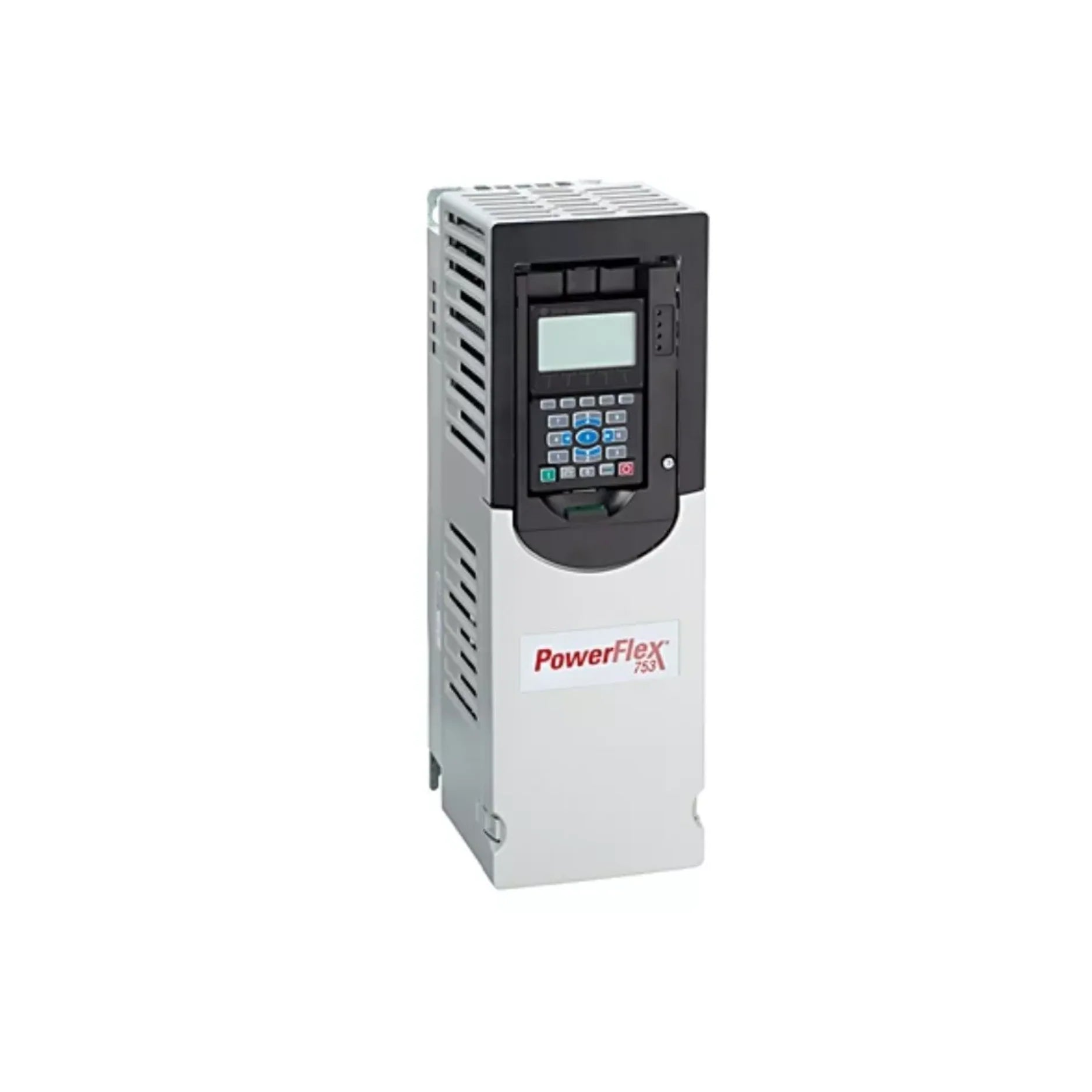

Allen Bradley 20F11ND027AA0NNNNN

Overview

The Allen-Bradley PowerFlex 753 20F11ND027AA0NNNNN AC Drive is a robust and cost-effective solution designed to optimize motor control in a diverse array of industrial applications. Engineered for reliability and efficiency, this air-cooled, open-type drive seamlessly integrates into new and existing systems, providing superior performance for various operational demands. Its advanced features, including embedded I/O and DC terminals, streamline integration and enhance control capabilities, making it an ideal choice for modern industrial automation. This PowerFlex 753 model, a Frame 3 drive, boasts dual Normal Duty (ND) and Heavy Duty (HD) ratings, offering unparalleled versatility to adapt to different load requirements and ensure consistent, high-quality output.

Key Features

• Integrated I/O: Simplifies system architecture and significantly reduces wiring complexity and installation time, leading to cost savings and faster deployment.
• Air-Cooled, Open Type (IP00): Provides efficient and reliable thermal management, suitable for standard industrial environments when properly enclosed for protection.
• Flexible 480V AC Input: Compatible with prevalent North American industrial power systems, ensuring broad applicability and ease of integration.
• Dual Rating (20HP ND / 15HP HD): Offers exceptional adaptability for varying load profiles, providing optimal performance whether for continuous or intermittent heavy-duty operations.
• AC Input with DC Terminals: Facilitates advanced DC bus configurations, enabling energy sharing, regenerative braking, and other sophisticated control strategies for enhanced system efficiency.
• Integrated Filtering: Minimizes electromagnetic interference (EMI), ensuring a cleaner power environment and improving the overall stability and reliability of connected industrial equipment.
• Dynamic Braking Transistor Included: Allows for rapid and precise motor deceleration, crucial for applications requiring quick stops or controlled positioning, enhancing operational safety and efficiency.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Series: PowerFlex 753
• Model: 20F11ND027AA0NNNNN
• Type: AC Drive
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - Requires external enclosure for protection)
• Frame Size: 3
• Main Power Supply: 480 V AC, 3-Phase
• Current: 27 A
• Capacity: 20 HP (Normal Duty), 15 HP (Heavy Duty)
• Output Frequency: 0-500 Hz (Typical)
• Overload Capacity: 150% for 60 seconds (Typical)
• Braking Transistor: Included
• Filtering: Integrated
• CM Jumper: Removed
• Human Interface Module (HIM): Not Included (Blank)

Applications

• Pumping and Ventilation Systems: Ideal for controlling pumps, fans, and blowers in HVAC, water treatment, and industrial ventilation.
• Material Handling: Perfect for conveyors, cranes, and other material handling equipment requiring precise speed and torque control.
• Mixing and Agitation: Delivers consistent and reliable performance for mixers, agitators, and blenders in chemical, food, and pharmaceutical industries.
• Packaging Machinery: Ensures high-speed and accurate operation for various packaging lines, improving throughput and efficiency.
• General-Purpose Machine Control: A versatile solution for a wide range of industrial machinery, offering flexibility and robust control.
• Automated Assembly Lines: Provides precise motor control for robots and automated stations, enhancing accuracy and reducing cycle times.

Why Choose This Model?

• Exceptional Value: Offers a compelling balance of advanced features, reliable performance, and cost-effectiveness for a broad spectrum of industrial applications.
• Simplified Commissioning: Embedded I/O and user-friendly design significantly reduce installation and setup time, allowing for quicker operational readiness.
• Enhanced Operational Flexibility: The dual ND/HD ratings and AC input with DC terminals provide unparalleled adaptability for diverse load requirements and advanced control strategies.
• Superior System Reliability: Integrated filtering and robust construction minimize EMI and maximize durability, ensuring consistent performance in demanding industrial environments.
• Optimized Motor Control: Features like the included DB transistor for dynamic braking enable precise and responsive motor control, enhancing efficiency and safety.
• Trusted Brand Quality: Manufactured by Allen-Bradley, a leader in industrial automation, guaranteeing a high-quality product backed by extensive industry expertise and support.

Order Now

Equip your operations with the superior control and reliability of the Allen-Bradley PowerFlex 753 20F11ND027AA0NNNNN AC Drive. Contact us today to learn more or to place your order and take the first step towards optimizing your industrial motor control systems.
