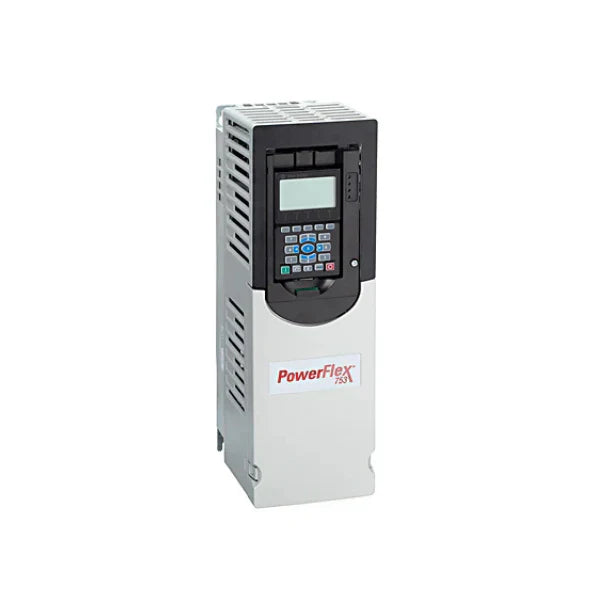

Allen-Bradley 20F11ND022AA0NNNNN

Overview

Unlock unparalleled performance and precision in your industrial operations with the Allen-Bradley 20F11ND022AA0NNNNN PowerFlex 753 AC Drive. Engineered for the most demanding motor control applications, this robust variable frequency drive (VFD) is a cornerstone for modern factory automation, material handling, and machine tool systems. Operating efficiently at 480V AC with a 3-phase input, it delivers a consistent 22A output, capably supporting 15HP in normal duty and 10HP in heavy-duty scenarios. Designed to optimize efficiency and minimize downtime, the 20F11ND022AA0NNNNN integrates seamlessly into existing industrial infrastructures, providing advanced control and diagnostic capabilities without the need for an integrated Human Interface Module (HIM), thereby facilitating flexible external control solutions.

This PowerFlex 753 drive boasts an air-cooled, open-type enclosure, ensuring optimal thermal management in controlled industrial environments. It comes equipped with embedded I/O for exceptional control flexibility, DC terminals for expanded connectivity, and a dynamic braking (DB) transistor for enhanced stopping performance and safety. The filtered design significantly reduces electromagnetic interference (EMI), promoting a stable and reliable operational environment. Furthermore, its CM jumper removed configuration allows for custom control setups, making the 20F11ND022AA0NNNNN a versatile and powerful solution for a wide array of variable-speed applications that demand precision, reliability, and energy efficiency.

Key Features

• Advanced Motor Control: Experience superior control over industrial motors with the PowerFlex 753 platform, designed for precision and reliability.
• High Power Output: Delivers 480V AC, 3-phase input with a 22A output current, supporting 15HP normal duty and 10HP heavy duty for versatile application.
• Integrated I/O and Connectivity: Features embedded I/O and DC terminals, offering unparalleled flexibility and simplified integration into complex systems.
• Optimized Braking Performance: Equipped with a dynamic braking (DB) transistor for rapid, controlled deceleration and enhanced operational safety.
• EMI Reduction: Utilizes a filtered design to minimize electromagnetic interference, ensuring stable and clean operation in sensitive industrial settings.
• Flexible Configuration: The CM Jumper Removed configuration and absence of an integrated HIM provide freedom for customized control interfaces and system integration.
• Durable Air-Cooled Design: An open-type, air-cooled enclosure ensures effective heat dissipation and robust performance in demanding industrial environments.

Technical Specifications

• Model: Allen-Bradley 20F11ND022AA0NNNNN
• Series: PowerFlex 753 AC Drive
• Voltage Rating: 480V AC
• Input Phase: 3-Phase
• Output Current: 22A
• Motor Power: 15HP (Normal Duty) / 10HP (Heavy Duty)
• Cooling Method: Air-Cooled
• Enclosure Type: Open Type
• Embedded I/O: Yes
• Dynamic Braking Transistor: Yes (Included)
• HIM Module: Not Included (Supports external control options)
• Filter Type: Filtered
• Frame Size: 2

Applications

• Factory Automation: Provides precise speed and torque control for a wide range of automated manufacturing processes, enhancing production efficiency.
• Material Handling Systems: Ideal for controlling conveyors, hoists, and other material transport equipment, ensuring smooth and reliable operation.
• Pumps and Fans: Optimizes performance and energy consumption for industrial pumps, fans, and blowers by allowing variable speed adjustments according to demand.
• Machine Tools: Enhances the stability and reliability of machine tool operations, contributing to higher precision and longer equipment lifespan.
• HVAC Systems: Improves energy efficiency and climate control in large industrial and commercial HVAC applications by precisely regulating motor speeds.
• Process Control: Essential for applications requiring accurate control over flow, pressure, and other critical process variables in industries such as chemical, food and beverage, and pharmaceuticals.

Why Choose the Allen-Bradley 20F11ND022AA0NNNNN?

• Unmatched Reliability: Built with Allen-Bradley's renowned quality, ensuring long-term stable performance in harsh industrial environments.
• Enhanced Efficiency: Optimize your energy consumption and operational costs through precise motor control and variable speed capabilities.
• Seamless Integration: Designed for easy integration into existing or new control systems, minimizing installation complexities and downtime.
• Flexible Customization: The absence of an integrated HIM, coupled with embedded I/O and configurable features, allows for tailored solutions to meet specific application needs.
• Superior Performance: Delivers high-performance motor control with advanced features like dynamic braking and EMI filtering for a robust and safe operation.
• Industry-Leading Support: Benefit from the extensive global support and resources associated with the Allen-Bradley brand, ensuring peace of mind.

Order Now

Elevate your industrial control systems with the Allen-Bradley 20F11ND022AA0NNNNN PowerFlex 753 AC Drive. Experience the difference in performance, reliability, and efficiency. We offer fast shipping and worldwide delivery options to get this essential component to your facility without delay. Don't compromise on quality or control—invest in a solution that empowers your operations. For more advanced solutions and to explore a broader range of options, delve into our comprehensive selection of Allen-Bradley PowerFlex 753 Variable Frequency Drives. Upgrade your industrial automation today!
