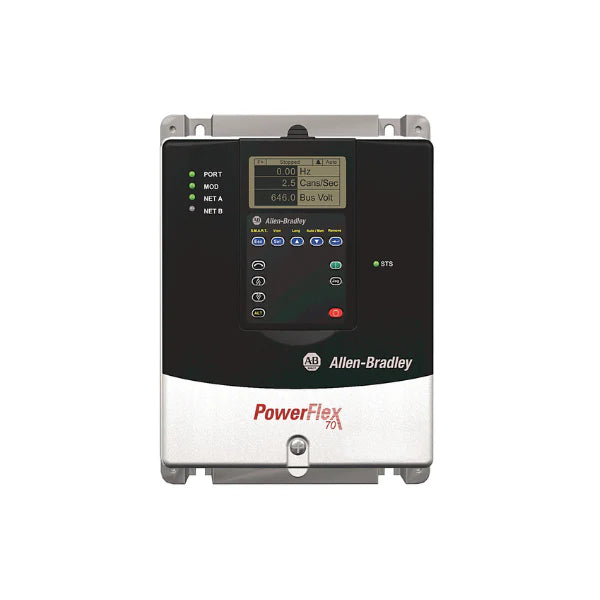

Allen-Bradley 20AC5P0A0AYNANC1

Overview

Unlock superior motor performance and precision with the Allen-Bradley 20AC5P0A0AYNANC1 PowerFlex 70 AC Drive. This robust and highly versatile drive is engineered to meet the most demanding industrial applications, offering exceptional control and reliability. Designed for 400V AC three-phase input, it delivers 2.2 kW in Normal Duty and 1.5 kW in Heavy Duty operation with a 5 Amp output current, making it suitable for a wide array of motor-driven processes. A standout feature of this model is its integrated standard encoder feedback capability, providing unparalleled accuracy in speed and torque control for critical applications. Its panel-mount design with an IP20/NEMA Type 1 enclosure and conformal coating ensures durability in protected industrial environments. While it requires external programming for configuration due to the absence of a Human Interface Module, it comes equipped with a brake IGBT for dynamic braking, ready to integrate with an external brake resistor. Furthermore, it includes a second environment filter for CE EMC compliance, guaranteeing robust electromagnetic compatibility. The Allen-Bradley 20AC5P0A0AYNANC1 is not just an AC drive; it's a solution for enhanced productivity and operational efficiency, available IN STOCK and ready to ship from DD Parts Solution.

Key Features

• Precise Encoder Feedback: Enables highly accurate speed and torque control for critical industrial processes.
• Flexible Power Output: Provides 2.2 kW (Normal Duty) and 1.5 kW (Heavy Duty) ratings for diverse motor applications.
• Robust Electrical Compatibility: Designed for 400V AC, 3-Phase input with a 5 Amp output current.
• Enhanced Durability: Features conformal coating and an IP20/NEMA Type 1 panel-mount enclosure for resilient operation in protected environments.
• Dynamic Braking Ready: Includes a Brake IGBT for efficient deceleration (requires external brake resistor).
• CE EMC Compliance: Equipped with a second environment filter to meet stringent electromagnetic compatibility standards.
• Advanced Control Algorithms: Offers sophisticated control capabilities for optimized motor performance.

Technical Specifications

• Catalog Number: 20AC5P0A0AYNANC1
• Input Voltage: 380-480V AC, 3-Phase, 50/60 Hz
• Output Voltage: 0-Input Voltage, 3-Phase
• Output Current: 5 Amps
• Power Rating: 2.2 kW (Normal Duty), 1.5 kW (Heavy Duty)
• Enclosure: Panel Mount - IP20/NEMA Type 1
• Cooling Method: Convection/Heatsink
• Braking: Brake IGBT Installed (External Resistor Required)
• Filtering: Second Environment Filter (CE EMC)
• Control Method: Enhanced Control (Sensorless Vector Control and with Encoder Feedback)
• Feedback: Standard Encoder Feedback
• Human Interface Module (HIM): Not included (requires external programming)
• Communication Module: Not included (optional module required for network connectivity)

Applications

• Precision Machining: Ideal for applications requiring extremely accurate speed and position control.
• Material Handling Systems: Suitable for conveyors, robotics, and automated guided vehicles (AGVs) demanding precise positioning.
• Pumps, Fans, and Blowers: Enhances efficiency and control in fluid movement systems where closed-loop operation is critical.
• Textile and Printing Machinery: Provides stable and accurate tension control for continuous web processes.
• Packaging Equipment: Improves synchronization and repeatability in high-speed packaging lines.
• General Industrial Automation: Versatile for a broad range of industrial tasks benefiting from enhanced motor control.

Why Choose This Model?

• Unmatched Precision: The inclusion of standard encoder feedback sets this model apart, offering superior control accuracy for the most demanding applications.
• Reliability in Harsh Environments: Conformal coating protects internal components from dust, moisture, and chemical exposure, extending lifespan and reducing downtime.
• Cost-Effective Integration: While requiring external programming, its robust design and focus on core control functionalities provide a cost-effective solution for advanced motor management.
• Ready for Dynamic Braking: The pre-installed brake IGBT simplifies the implementation of dynamic braking solutions, essential for applications requiring rapid stops.
• Globally Compliant: Adherence to CE EMC directives ensures seamless integration into international industrial operations.
• Immediate Availability: As a key offering from DD Parts Solution, the 20AC5P0A0AYNANC1 is IN STOCK and available for fast shipment TODAY, minimizing project delays.

Order Now

Elevate your industrial operations with the precision and reliability of the Allen-Bradley 20AC5P0A0AYNANC1 PowerFlex 70 AC Drive. With its advanced encoder feedback capabilities, robust construction, and immediate availability from DD Parts Solution, you can achieve unprecedented control over your motor applications. Don't compromise on performance or efficiency. Contact us or place your order today to experience the difference.
