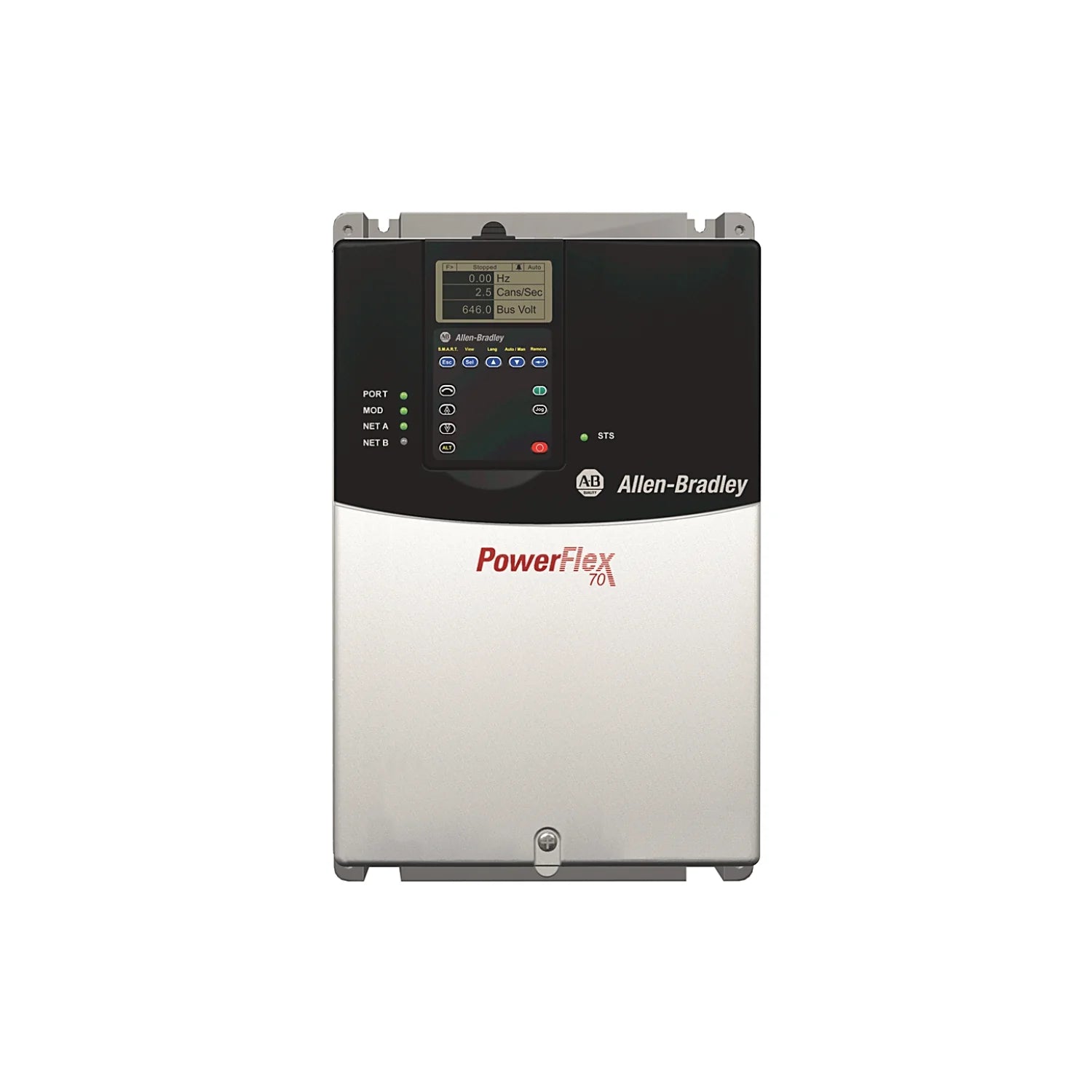

Allen-Bradley 20AC022A0AYNANC0

Overview

The Allen-Bradley PowerFlex 70 20AC022A0AYNANC0 AC Drive is a highly efficient and compact motor control solution engineered for a diverse range of general-purpose industrial applications. Designed with a focus on cost-effectiveness and compliance, this drive meets stringent European EMC directives, making it an ideal choice for operations requiring adherence to CE standards. Its small footprint allows for optimal space utilization in control panels, while its robust construction, including conformal coating, ensures reliable performance even in demanding and harsh environmental conditions. The 20AC022A0AYNANC0 model integrates a Second Environment Filter, guaranteeing compliance with CE EMC directive 89/336/EEC, and features a built-in brake IGBT for dynamic braking capabilities (requiring an external resistor). This drive represents a powerful combination of advanced control, durability, and a compact design, providing unparalleled value for modern industrial settings.

Key Features

• Compact & Space-Saving Design: Maximizes panel space efficiency, ideal for installations with limited room.
• Robust 400V AC, 3-Phase Input: Seamlessly integrates with standard European industrial power supply systems.
• Dual Rating Flexibility: Offers 11kW (15HP) Normal Duty and 7.5kW (10HP) Heavy Duty for versatile load management.
• Integrated Second Environment Filter: Ensures full compliance with CE EMC Directive 89/336/EEC for electromagnetic compatibility in industrial environments.
• Enhanced Environmental Protection: Features conformal coating for superior resistance against humidity, dust, and corrosive elements.
• Built-in Brake IGBT: Provides reliable dynamic braking for controlled deceleration (requires external brake resistor).
• Panel Mount IP20/NEMA Type 1 Enclosure: Designed for secure mounting within protected industrial control environments.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)
• Series: PowerFlex 70
• Model Number: 20AC022A0AYNANC0
• Input Voltage: 400V AC, 3-Phase
• Output Current: 22 A
• Capacity: 11kW / 15HP (Normal Duty), 7.5kW / 10HP (Heavy Duty)
• Enclosure: Panel Mount - IP20 / NEMA Type 1
• Braking: Brake IGBT Installed, External Brake Resistor Required
• Filtering: Second Environment Filter (CE EMC Directive 89/336/EEC)
• Communication: No Communication Module
• Control: Enhanced Control
• Feedback: No Feedback
• Conformal Coating: Yes

Applications

The Allen-Bradley PowerFlex 70 20AC022A0AYNANC0 AC Drive is exceptionally versatile, making it suitable for a wide array of industrial applications, particularly those demanding CE compliance and operation in challenging environments:

• Conveyor Systems: Provides precise speed control for material transport lines.
• Pumps: Optimizes fluid handling in various industrial pumping applications.
• Industrial Fans: Efficiently manages airflow for ventilation and process cooling.
• Material Handling Equipment: Enhances control and efficiency in lifting, sorting, and positioning tasks.
• Packaging Machinery: Ensures reliable and consistent operation for automated packaging lines.
• HVAC Systems: Improves energy efficiency and performance in heating, ventilation, and air conditioning.

Why Choose This Model?

• Compliance Assurance: Integrated Second Environment Filter guarantees adherence to crucial CE EMC directives, simplifying regulatory compliance.
• Unmatched Durability: Conformal coating provides superior protection against environmental aggressors, extending the lifespan of the drive in harsh conditions.
• Space-Saving Design: Its compact form factor is perfect for installations where panel space is at a premium, without compromising performance.
• Cost-Effective Operation: Delivers high-performance motor control with an economical approach, reducing overall operational costs.
• Versatile Performance: Dual rating capabilities allow for flexible application across different load requirements, maximizing utility.
• Trusted Allen-Bradley Quality: Benefit from the renowned reliability and engineering excellence of Allen-Bradley, a leader in industrial automation.

Order Now

Elevate your industrial motor control with the Allen-Bradley PowerFlex 70 20AC022A0AYNANC0 AC Drive. Experience the perfect blend of advanced features, robust design, and regulatory compliance. Contact us today to secure this essential component for your operations and ensure optimal performance and longevity. Our team is ready to assist you in integrating this powerful solution into your existing systems.
