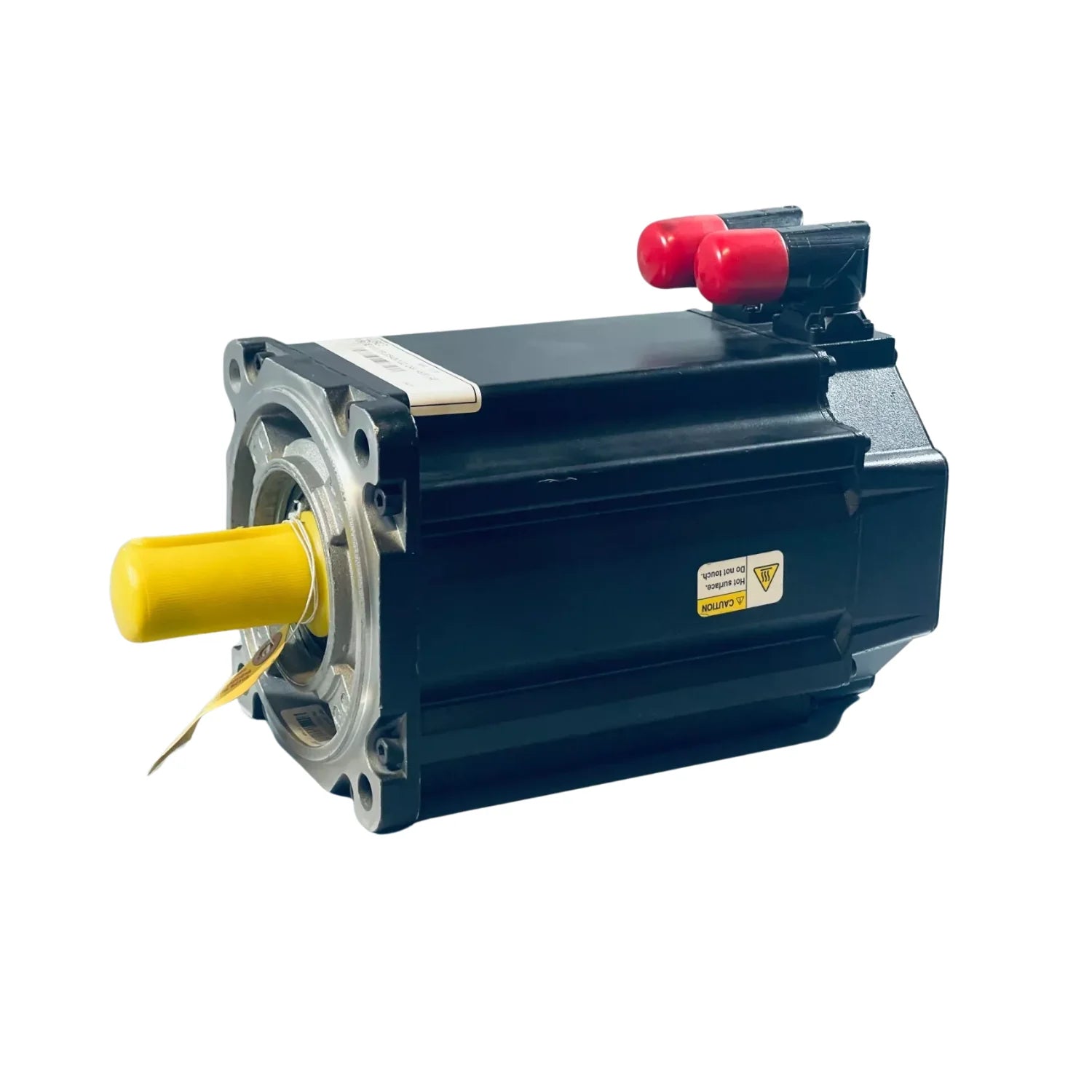

Allen-Bradley MPL-B540K-MJ74AA

Overview

The Allen-Bradley MPL-B540K-MJ74AA is a premier low-inertia brushless servo motor engineered for the most demanding precision motion control applications in industrial automation. Operating efficiently at 460V, this robust servo motor integrates advanced features to deliver unparalleled performance and reliability. With a substantial 165mm (6.50 in.) frame size and a 101.6mm (4.0 in.) stack length, it is built for durability and consistent operation. Achieving a maximum speed of 4000 RPM, the MPL-B540K-MJ74AA ensures rapid and accurate positioning, crucial for high-speed industrial processes. Its integrated multi-turn high-resolution encoder provides absolute feedback, guaranteeing superior positional accuracy and seamless motion control across complex systems. Designed for longevity and resilience, this motor is an ideal choice for enhancing productivity and precision in critical manufacturing and automation environments.

Further enhancing its industrial applicability, the MPL-B540K-MJ74AA boasts an IP66-rated housing, providing comprehensive protection against dust ingress and powerful jets of water. This makes it exceptionally suited for operation in harsh and challenging industrial settings where environmental factors can impact equipment performance. Installation and integration are streamlined thanks to its circular DIN connector, which features a right-angle, 180° rotatable configuration for flexible cable management. Additionally, the motor is equipped with free IEC metric mounting holes (Type FF), ensuring broad compatibility and ease of setup with existing industrial infrastructures. For enhanced safety and operational security, a 24V DC holding brake is incorporated, ensuring that loads are securely maintained even during power interruptions, thereby preventing unintended movement and improving overall system reliability.

Key Features

• 460V AC Industrial Operation: Optimized for high-performance industrial power systems, ensuring robust and consistent operation.
• 4000 RPM Maximum Speed: Delivers high-speed, precise motion control essential for dynamic automation tasks.
• Multi-Turn High-Resolution Encoder: Provides absolute feedback for superior accuracy and repeatable positioning, enhancing system precision.
• IP66-Rated Environmental Protection: Guarantees protection against dust and powerful water jets, extending operational life in harsh conditions.
• Integrated 24V DC Holding Brake: Ensures secure load holding and enhanced safety during power-off conditions or emergency stops.
• Flexible Connectivity & Mounting: Features a 180° rotatable circular DIN connector and IEC Metric (Type FF) mounting for versatile installation.
• Low-Inertia Design: Facilitates rapid acceleration and deceleration, improving response time and overall system agility.

Technical Specifications

Model: MPL-B540K-MJ74AA

Motor Type: Low-Inertia Brushless Servo Motor

Voltage: 460V AC

Frame Size: 165mm (6.50 in.)

Stack Length: 101.6mm (4.0 in.)

Maximum Speed: 4000 RPM

Encoder Type: Multi-Turn High-Resolution (Absolute Feedback)

Housing Protection: IP66

Shaft Key: Yes

Shaft Seal: No

Connector Type: Circular DIN, Right Angle, 180° Rotatable

Brake Voltage: 24V DC

Mounting: IEC Metric, Free Mounting Holes (Type FF)

Applications

• CNC Machinery & Precision Automation: Ensures highly accurate and repeatable movements for machining and automated processes.
• Robotics & Advanced Motion Control Systems: Powers sophisticated robotic arms and complex multi-axis motion platforms.
• Packaging & Material Handling: Drives high-speed conveyors, sorters, and robotic pick-and-place systems.
• High-Speed Manufacturing & Assembly Lines: Critical for rapid and precise component placement and production line synchronization.
• Textile and Printing Industries: Provides controlled tensioning and precise registration for continuous web processes.
• Medical Device Manufacturing: Offers the precision needed for intricate assembly and testing of sensitive components.

Why Choose This Model?

• Unmatched Precision: The multi-turn high-resolution encoder delivers absolute feedback, ensuring industry-leading accuracy for critical applications.
• Robust Industrial Design: An IP66-rated housing provides superior protection against environmental contaminants, ensuring long-term reliability in harsh conditions.
• Enhanced Safety & Control: The integrated 24V DC holding brake offers an additional layer of safety by securing loads and preventing unintended movement.
• Flexible Integration: With its versatile connector and standardized IEC mounting, this motor seamlessly integrates into existing and new industrial setups.
• Optimized Performance: Experience rapid response times and efficient operation thanks to its low-inertia brushless design, ideal for dynamic control needs.
• Allen-Bradley Reliability: Benefit from the renowned quality and dependable performance associated with Allen-Bradley industrial automation products.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley MPL-B540K-MJ74AA Low-Inertia Brushless Servo Motor. Designed for precision, durability, and seamless integration, this motor is the ideal solution for demanding motion control applications. Experience superior performance and reliability that only Allen-Bradley can deliver. Add to your cart today and optimize your operational efficiency.

Looking for more options? Explore our complete selection of Kinetix MPL Low-Inertia Servo Motors for high-performance, precise motion control solutions tailored to your specific needs. You can also browse our full range of Allen-Bradley Servo Motors to find the perfect match for your automation requirements.
