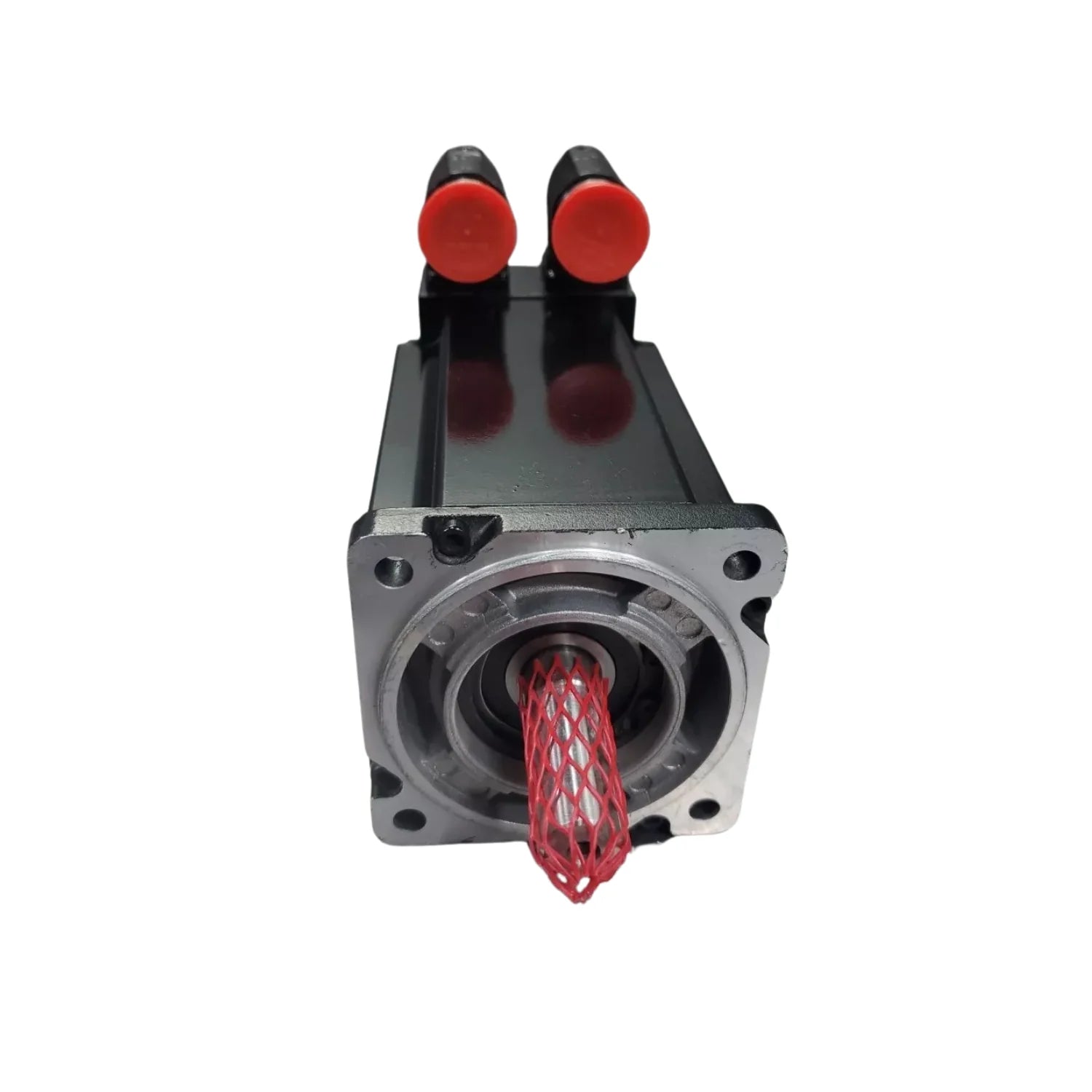

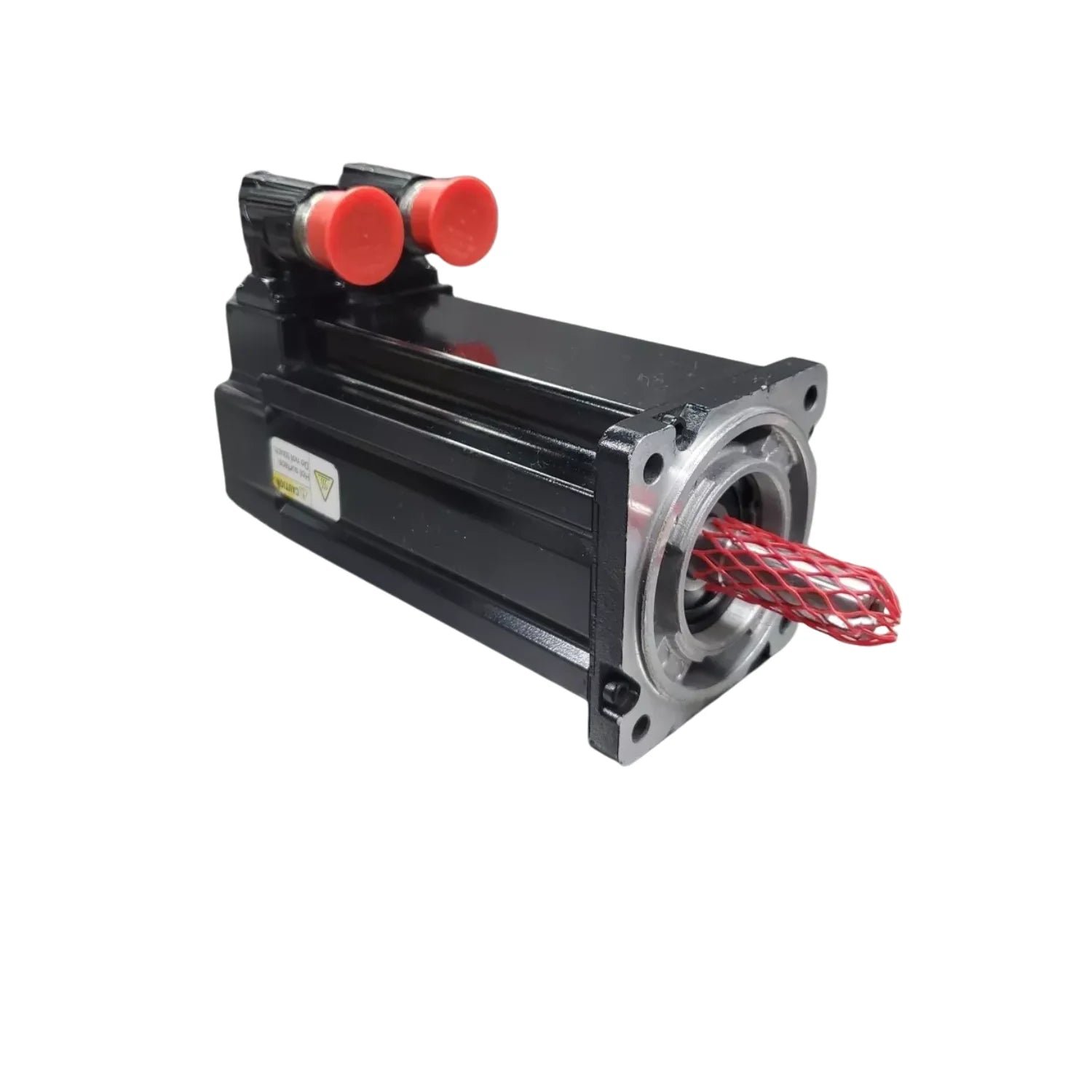

Allen-Bradley MPL-B320P-MJ74AA

Overview

Unlock unparalleled precision and dynamic performance for your industrial automation systems with the Allen-Bradley MPL-B320P-MJ74AA Low-Inertia Brushless Servo Motor. Engineered for demanding applications, this high-performance servo motor combines robust power with intricate control capabilities, making it an indispensable component for modern manufacturing and robotics.

Operating flawlessly at 460V, the MPL-B320P-MJ74AA delivers an exceptional rated speed of 5000 RPM, ensuring rapid and accurate motion responses crucial for high-speed automated processes. Its impressive 3.05 Nm rated torque provides the reliable force needed to maintain efficiency and productivity even under strenuous operational conditions. Designed with system integrators and engineers in mind, this motor boasts a multi-turn high-resolution absolute encoder, guaranteeing superior positioning accuracy and feedback for closed-loop control systems.

Further enhancing its versatility and ease of integration, the MPL-B320P-MJ74AA features a keyed shaft extension for secure mechanical coupling and a 24V DC brake for essential holding power and safety. The innovative SpeedTEC DIN connector, with its right-angle, 180° rotatable quick-connect design, simplifies installation and drastically reduces setup times within IEC metric mounting frameworks. This Allen-Bradley servo motor is not just a component; it's a foundation for advanced, high-precision automation.

Key Features

• High-Efficiency 460V Operation: Optimized for industrial environments, ensuring powerful and reliable motor control with enhanced energy efficiency.
• Blazing 5000 RPM Rated Speed: Delivers rapid and exact motion control, perfect for high-speed cycles and dynamic system requirements.
• Robust 3.05 Nm Rated Torque: Provides consistent and dependable power output, capable of handling strenuous and demanding industrial tasks.
• Multi-Turn High-Resolution Absolute Encoder: Offers superior feedback for exceptionally accurate and repeatable positioning, crucial for precision applications.
• Secure Keyed Shaft Extension: Guarantees a robust and reliable mechanical connection, minimizing slippage and maximizing operational integrity.
• Innovative SpeedTEC DIN Connector: Features a right-angle, 180° rotatable, quick-connect design for simplified wiring, faster installation, and reduced downtime.
• Integrated 24V DC Brake: Enhances safety and control by providing reliable holding torque for controlled stops and secure positioning when power is off.

Technical Specifications

• Model: MPL-B320P-MJ74AA
• Voltage Rating: 460V
• Frame Size: 3 (100mm / 3.94in.)
• Stack Length: 20 (50.8mm / 2.0in.)
• Rated Speed: 5000 RPM
• Rated Torque: 3.05 Nm
• Encoder Type: Multi-Turn High-Resolution Absolute Encoder
• Shaft Type: Keyed Shaft Extension
• Connector Type: SpeedTEC DIN, Right Angle, 180° Rotatable
• Brake Voltage: 24V DC
• Mounting Type: IEC Metric, Free Mounting Holes (Type FF)

Applications

• High-Speed Automation Systems: Essential for machinery requiring rapid cycle times and precise synchronization.
• Robotics and Precision Motion Control: Provides the accuracy and responsiveness needed for complex robotic movements and intricate tasks.
• CNC Machinery and Manufacturing Lines: Ideal for driving cutting tools, conveyors, and assembly equipment with high reliability.
• Material Handling Systems: Ensures smooth and efficient movement of goods in automated warehousing and logistics.
• Packaging Equipment: Critical for fast and accurate product positioning and manipulation in high-volume packaging operations.
• Semiconductor Manufacturing: Meets the stringent demands for ultra-precise motion in sensitive and delicate production processes.

Why Choose This Model?

• Unmatched Precision: The multi-turn high-resolution absolute encoder guarantees extremely accurate positioning, reducing errors and ensuring consistent output.
• Dynamic Performance: With 5000 RPM and 3.05 Nm of torque, this motor offers the speed and power necessary for the most demanding and dynamic industrial applications.
• Simplified Integration: The SpeedTEC DIN quick-connect design and IEC metric mounting ensure effortless installation and compatibility with existing systems, saving valuable setup time.
• Enhanced Reliability: Built with Allen-Bradley's renowned quality, featuring a robust design and a 24V DC brake for reliable, long-term operation and improved safety.
• Optimized for Efficiency: Its 460V operation is tailored for industrial settings, promoting energy efficiency and sustainable performance across various applications.
• Versatile Application Range: Perfectly suited for a wide array of industries, from robotics to CNC machinery, making it a highly adaptable solution for your automation needs.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley MPL-B320P-MJ74AA Low-Inertia Brushless Servo Motor. Experience the synergy of high-speed performance, precise control, and robust reliability that only Allen-Bradley can deliver. Don't miss the opportunity to optimize your operations and achieve new levels of efficiency and productivity. Contact us today or add to cart to secure this essential component for your advanced motion control applications!
