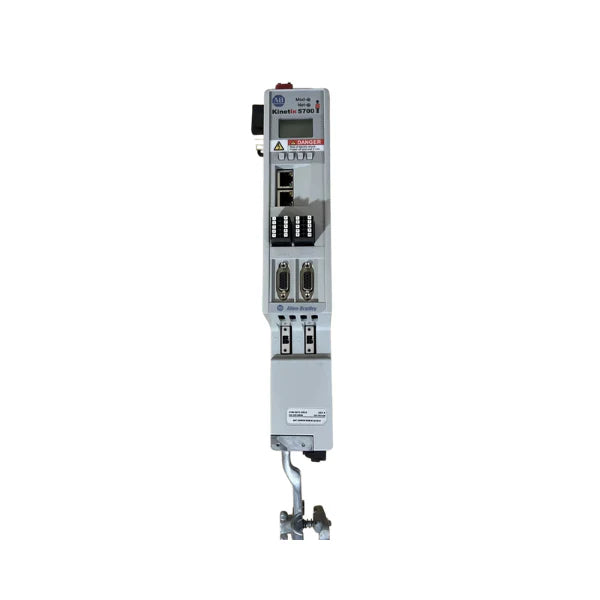

Allen-Bradley 2198-D012-ERS3

Overview

Unleash the full potential of your industrial automation with the Allen-Bradley 2198-D012-ERS3 Kinetix 5700 EtherNet/IP Integrated Drive System. Engineered by Rockwell Automation, this state-of-the-art drive is meticulously designed for demanding, high-performance applications where precision, reliability, and efficiency are paramount. The 2198-D012-ERS3 seamlessly integrates into your existing EtherNet/IP network, providing unparalleled control over motors while streamlining system architecture. This compact yet powerful unit combines the drive and motor controller, simplifying installation and reducing wiring complexity. Ideal for a wide array of industrial uses, from intricate robotics to high-speed packaging lines, the Kinetix 5700 series ensures your operations run smoothly and efficiently, minimizing downtime and maximizing productivity.

Key Features

• Seamless EtherNet/IP Integration: Leverage high-speed communication for real-time, synchronized control within networked industrial environments, enabling superior coordination and data exchange.
• Integrated Drive & Control: Benefit from a consolidated drive and motor controller in one compact unit, significantly simplifying system design, reducing valuable panel space, and accelerating installation processes.
• Versatile Application Adaptability: Enjoy flexible configuration options that allow for effortless adaptation across a diverse range of industrial scenarios, from basic motor control to complex multi-axis systems.
• Exceptional Performance & Precision: Achieve superior motor control with high-speed feedback capabilities, delivering pinpoint accuracy essential for applications such as robotic arms, conveyor systems, and packaging machinery.
• Advanced Diagnostic Insights: Proactively identify and resolve operational issues with comprehensive diagnostic features, drastically reducing troubleshooting time and enhancing overall system uptime.
• Modular System Expandability: Future-proof your operations with a modular design that facilitates easy expansion with additional drives, allowing for scalable integration into larger, more complex automation systems as your needs evolve.
• Robust & Reliable Operation: Built for continuous operation in challenging industrial environments, ensuring consistent performance and longevity for critical applications.

Technical Specifications

• Product Type: Kinetix 5700 Integrated Drive System
• Model Number: 2198-D012-ERS3
• Power Rating: 12 A Continuous, 12 A Peak (at 480V AC)
• Input Voltage: 380-480V AC, 3-Phase
• Output Voltage: 0-480V AC
• Control Method: EtherNet/IP for networked control of drives and motors
• Dimensions: 13.3 x 7.8 x 4.5 in (338 x 198 x 114 mm)
• Weight: 6.5 lbs (2.95 kg)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (32°F to 185°F)
• Communication: EtherNet/IP interface for network integration
• Cooling Method: Forced-air cooling with internal fan
• Overload Capacity: 200% for 1 second
• Fusing Requirements: 25 A for short circuit protection
• Certifications: UL, CE, CSA, RoHS compliant

Applications

• Conveyor and Material Handling Systems: Optimally control speed and movement for efficient and precise material flow in various industrial settings.
• High-Speed Packaging Machinery: Achieve extremely precise motor control vital for intricate packaging applications that demand exact speed and torque regulation.
• Industrial Robotic Systems: Provide the high-performance control and synchronization necessary for advanced industrial robots in complex manufacturing lines.
• CNC and Machine Tools: Ensure exact motion control for Computer Numerical Control (CNC) machines and other precision equipment where accuracy is paramount.
• Automated Assembly and Processing: Perfectly suited for diverse industrial automation applications, including food and beverage processing, automotive assembly lines, and pharmaceutical manufacturing.

Why Choose This Model?

• Industry-Leading Brand: Trust in the renowned quality and innovation of Allen-Bradley, a leader in industrial automation solutions.
• Enhanced System Efficiency: The integrated design and EtherNet/IP connectivity reduce complexity and improve overall system efficiency, saving time and resources.
• Future-Ready Technology: Invest in a solution designed for modern industrial networks, offering scalability and adaptability for evolving operational demands.
• Reduced Total Cost of Ownership: With simplified installation, improved diagnostics, and robust performance, this drive minimizes operational costs and maximizes your return on investment.
• Unmatched Precision Control: Experience the highest level of motor control accuracy, essential for critical applications where even small deviations can impact product quality or operational safety.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 2198-D012-ERS3 Kinetix 5700 EtherNet/IP Integrated Drive System. Contact us today to learn more or to place your order and take the first step towards more efficient, precise, and reliable operations.
