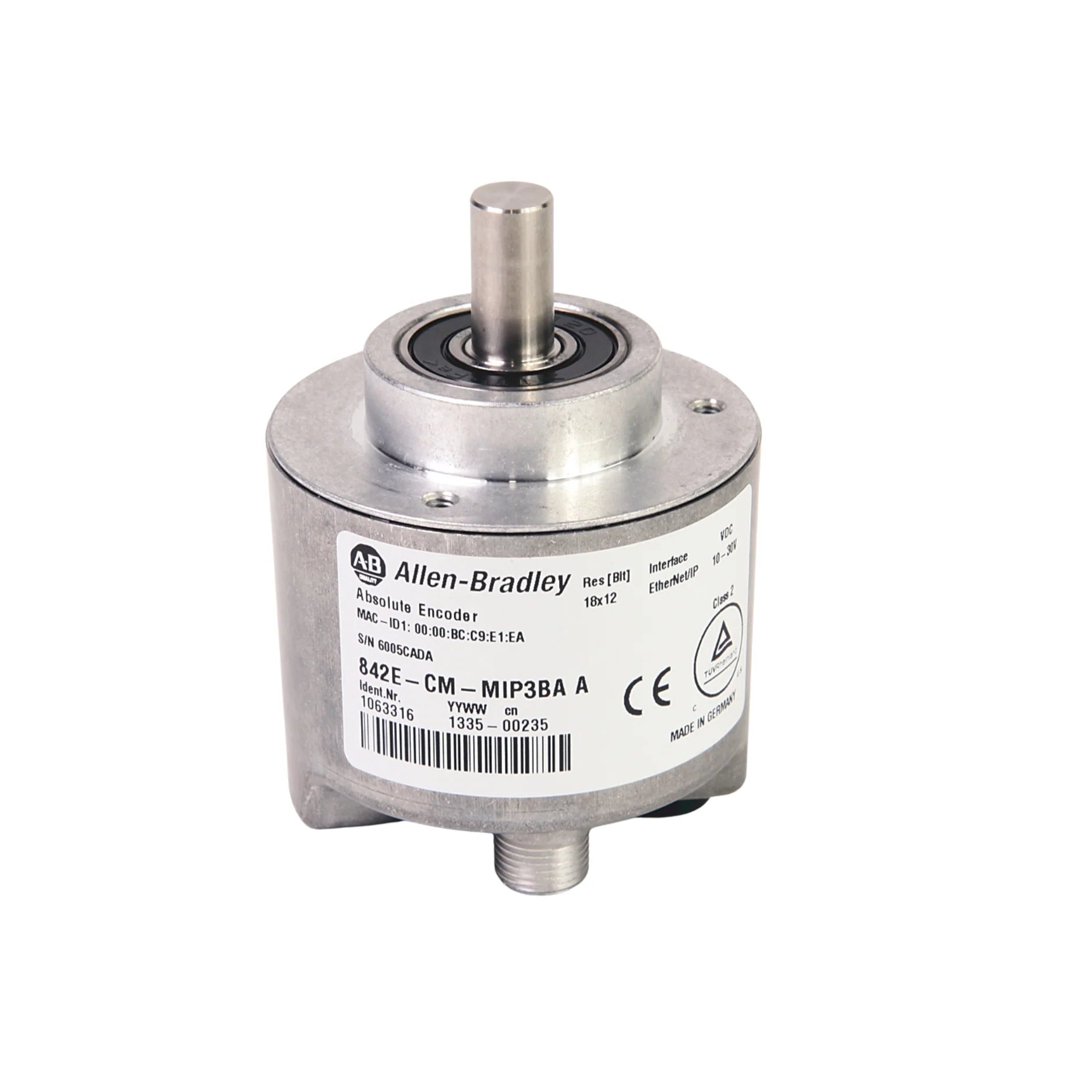

Allen-Bradley 842E-CM-MIP3BA

Overview

The Allen-Bradley 842E-CM-MIP3BA is a state-of-the-art Ethernet/IP absolute encoder engineered for the most demanding motion control and industrial automation environments. This robust multi-turn encoder provides unparalleled precision and reliability, making it an essential component for optimizing your industrial processes. With integrated CIP Motion compatibility and an impressive 4096 multi-turn capability, the 842E-CM-MIP3BA ensures continuous and highly accurate position tracking, even during complex movements. Its exceptional 18-bit (262,144 steps per revolution) resolution guarantees microscopic control, providing the detailed feedback necessary for critical applications. Designed for seamless integration into existing Rockwell Automation systems, this encoder features a durable 10mm solid shaft and a secure M12 connector, facilitating straightforward installation and reliable operation. From intricate robotics to high-speed conveyor systems, the 842E-CM-MIP3BA stands out as a superior solution for enhancing precision, efficiency, and overall operational consistency.

Key Features

• Ethernet/IP Communication with CIP Motion: Provides real-time, high-speed data exchange and integrated motion feedback for synchronized control.
• Multi-Turn Absolute Encoder (4096 Turns): Delivers continuous and accurate position sensing across a wide operating range, eliminating the need for homing procedures.
• Exceptional 18-Bit Resolution (262,144 Steps per Revolution): Guarantees ultra-fine control and highly precise positioning for critical applications.
• Robust 10mm Solid Shaft: Ensures maximum durability and compatibility with standard industrial mounting configurations.
• Secure M12 Connector: Offers reliable and vibration-resistant electrical connections, vital for industrial environments.
• Seamless Rockwell Automation Integration: Optimized for effortless compatibility and enhanced performance within existing Rockwell systems.
• Rugged and Durable Design: Built to withstand harsh industrial conditions, ensuring long-term reliability and performance.

Technical Specifications

• Model: 842E-CM-MIP3BA
• Series: 842E Ethernet/IP Absolute Encoders
• Communication Protocol: Ethernet/IP with CIP Motion
• Resolution: 18-bit (262,144 steps per revolution)
• Multi-Turn Capability: 4096 Turns
• Shaft Type: Solid Shaft (10mm)
• Connector Type: M12
• Operating Voltage: 10-30V DC
• Mounting: Flange Mount
• Certifications: UL, CE, RoHS

Applications

• Robotics & Motion Control Systems: Essential for precise joint positioning, speed regulation, and trajectory control in advanced robotic applications.
• Conveyor Systems & Material Handling: Improves tracking accuracy, optimizes throughput, and enhances automation efficiency in logistical operations.
• Packaging & Assembly Lines: Provides real-time, highly accurate position feedback for synchronized operations, minimizing errors and maximizing production.
• Automated Storage & Retrieval Systems (AS/RS): Facilitates high-speed, accurate movement and positioning for efficient inventory management and retrieval.
• CNC & Precision Machinery: Ensures superior tool positioning, synchronization, and overall machining accuracy for high-quality manufacturing.
• Textile and Printing Machines: Offers precise control over web tension, material feed, and pattern registration for consistent product quality.

Why Choose This Model?

• Unmatched Precision: With 18-bit resolution and 4096 multi-turns, this encoder delivers the highest level of accuracy for critical industrial tasks.
• Seamless Integration: Designed for effortless compatibility with Rockwell Automation systems, streamlining setup and reducing integration time.
• Enhanced Reliability: Its robust construction and M12 connector ensure stable performance and a long operational lifespan in challenging environments.
• Optimized Performance: CIP Motion over Ethernet/IP provides real-time feedback, enabling dynamic and highly responsive motion control.
• Versatile Application: Ideal for a broad spectrum of industries, from robotics and material handling to precision machining, offering a flexible solution for diverse needs.
• Future-Proof Technology: Invest in a solution that leverages cutting-edge communication protocols and design, ensuring long-term relevance and effectiveness.

Order Now

Elevate your industrial automation processes with the Allen-Bradley 842E-CM-MIP3BA Ethernet/IP Absolute Encoder. Experience the difference that precision, reliability, and seamless integration can make. Take advantage of fast shipping and worldwide delivery options to get your operations running at peak performance.
