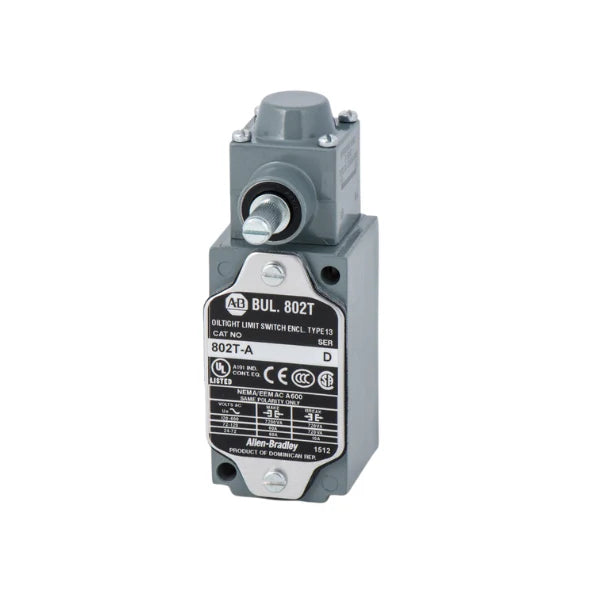

Allen-Bradley 802T-A

Overview

The Allen-Bradley 802T-A is a robust and reliable lever-operated limit switch, engineered for exceptional performance in demanding industrial environments. This non-plug-in model (typically hardwired) is built to the highest standards, ensuring long-term durability and consistent operation. Designed with NEMA Type 4 and 13 oiltight construction, it offers superior protection against dust, water, oil, and other common industrial contaminants, making it an ideal choice for machinery operating in harsh conditions. The switch’s 2-circuit configuration provides flexible control options, while its ability to operate in both clockwise (CW) and counter-clockwise (CCW) directions enhances its versatility across various applications. With a maximum operating torque of 0.34 Nm (3 lb*in) and a robust electrical rating of 600V AC, 10 Amp Max, the 802T-A is a dependable solution for precise position sensing and limit control.

Key Features

• NEMA Type 4 and 13 Oiltight Construction: Ensures comprehensive protection against dust, water spray, oil, and coolants, guaranteeing reliable performance in challenging industrial settings.
• Non-Plug-In Design: Provides a secure and permanent hardwired connection, minimizing the risk of disengagement in high-vibration or critical applications.
• Versatile Lever Type Actuator with Spring Return: Offers flexible actuation options and ensures consistent, immediate reset for precise and repeatable switching operations.
• 2-Circuit Configuration: Delivers dual independent circuits, providing advanced control capabilities and simplified wiring for complex automation tasks.
• CW and CCW Operation: Adaptable for actuation in both clockwise and counter-clockwise rotational directions, enhancing its suitability for a wider range of mechanical movements.
• Optimized Operating Torque: Requires a maximum torque of just 0.34 Nm (3 lb*in) for actuation, signifying efficient and responsive engagement.
• High Electrical Rating: Capable of handling up to 600V AC and 10 Amps, making it suitable for integration into robust industrial control systems.

Technical Specifications

• Product Type: Limit Switch
• Brand: Allen-Bradley
• Catalog Number: 802T-A
• Enclosure Rating: NEMA Type 4 and 13 (Oiltight, Dusttight, Watertight)
• Actuator Type: Lever, Spring Return
• Operating Torque/Force: 0.34 Nm (3 lb*in) Max.
• Direction of Operation: Clockwise (CW) and Counter-Clockwise (CCW)
• Connection Type: Non-Plug-In (Hardwired)
• Electrical Rating: 600V AC, 10 Amp Max.
• Circuits: 2-Circuit

Applications

• Machine Guarding Safety: Crucial for ensuring safety by detecting the position of protective barriers and interlocking machine operation.
• Material Handling Systems: Ideal for sensing the presence or position of items on conveyors, sorters, and robotic pick-and-place units.
• Packaging Machinery: Enhances automation in packaging lines for tasks such as box detection, lid closing, and product indexing.
• Conveyor Control: Provides reliable start/stop and directional control for various types of conveyor belts and systems.
• Position Detection and Limit Sensing: Accurately identifies the extreme travel limits of mechanical components or the presence of objects in a defined area.
• Industrial Automation Projects: A fundamental component across a broad spectrum of automation setups requiring robust and precise switching.

Why Choose This Model?

• Unmatched Durability: The Allen-Bradley 802T-A is built with industrial-grade materials and NEMA 4/13 protection, ensuring an extended operational life even in the most challenging conditions.
• Trusted Allen-Bradley Quality: As a product from Allen-Bradley, you are investing in a legacy of reliability, precision, and engineering excellence in industrial control.
• Flexible and Adaptable: With its CW/CCW operation and 2-circuit design, this limit switch offers superior adaptability for a diverse array of mechanical movements and control requirements.
• Enhanced Safety and Efficiency: Proper deployment of the 802T-A contributes to safer machine operation by ensuring accurate limit sensing and improves process efficiency through reliable automation.
• Seamless Integration: Designed for straightforward hardwired integration into existing or new control panels, minimizing installation time and complexity.

Order Now

Elevate the reliability and precision of your industrial machinery with the Allen-Bradley 802T-A lever limit switch. DD Parts Solution offers competitive pricing, fast and dependable shipping, and expert support to help you find the right automation components for your needs. Explore our extensive selection of Allen-Bradley limit switches and a wide range of industrial automation products. Add the 802T-A to your cart today and experience the difference superior quality makes!
