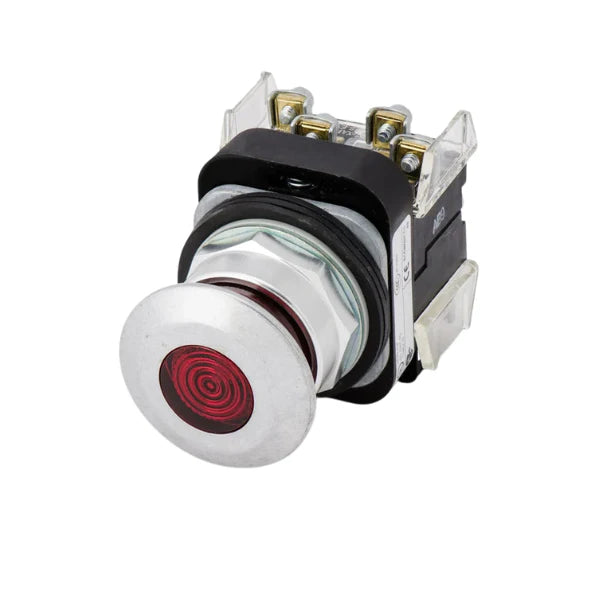

Allen-Bradley 800T-FXQ24RA1

Overview

The Allen-Bradley 800T-FXQ24RA1 Bulletin 800T Series 2-Position Push-Pull Button is engineered for precision and durability in demanding industrial control applications. This robust operator, featuring a distinctive 30.5mm round mushroom head with vivid red illumination, stands out for its intuitive push-pull action, simplifying critical on/off control functions. Designed to endure the harshest conditions, it boasts an exceptional Type 4/13 watertight and oiltight enclosure rating, making it an indispensable component for environments exposed to moisture, dust, or oil. Operating efficiently on a 24V AC/DC supply, the 800T-FXQ24RA1 seamlessly integrates into a wide array of existing control systems, offering both a normally open (N.O.) and a normally closed (N.C.) contact configuration for unparalleled versatility in circuit design and functionality. Its rugged construction and clear visual feedback ensure reliable performance, enhancing operational safety and efficiency across diverse industrial settings.

Key Features

• Intuitive Push-Pull Operation: Simplifies on/off control with a straightforward and decisive push-pull mechanism, reducing operational errors.
• Vivid Red LED Illumination: Ensures immediate visibility of the button's status, even in low-light conditions, significantly improving operational safety and awareness.
• Superior Environmental Protection: Features a Type 4/13 watertight and oiltight enclosure rating, guaranteeing reliable operation in challenging industrial environments by resisting water, dust, and oil ingress.
• Broad Voltage Compatibility: Designed for seamless integration into various control systems with its versatile 24V AC/DC supply voltage requirement.
• Flexible Contact Configuration: Equipped with both one Normally Open (N.O.) and one Normally Closed (N.O.L.B.) contact, offering extensive flexibility for diverse control and interlock applications.
• Robust 30.5mm Mushroom Head: The large, round mushroom head design is easy to actuate, even with gloved hands, providing enhanced tactile feedback and operational comfort.
• Exceptional Durability: Constructed with high-quality materials to withstand continuous mechanical stress and resist wear and tear in harsh industrial settings, ensuring a long operational lifespan.

Technical Specifications

• Model Number: 800T-FXQ24RA1
• Operator Type: 2-Position Push-Pull
• Button Size: 30.5mm (Round Mushroom Head)
• Illumination: Yes (Incandescent Lamp)
• Lens Color: Red
• Contacts: 1 N.O. (Normally Open) - 1 N.C.L.B. (Normally Closed, Locking)
• Supply Voltage: 24V AC/DC
• Enclosure Rating: Type 4/13 Watertight/Oiltight
• Lamp Type: Full Voltage Type Incandescent Lamp
• Dimensions (HxWxD): 40mm Mushroom Head
• Operating Temperature Range: -25°C to 55°C (-13°F to 131°F)
• Mounting: Panel Mount
• Weight: Approx. 0.2 kg (0.44 lbs)

Applications

• Industrial Machinery Control: Ideal for starting, stopping, and controlling various types of industrial equipment and machinery where a clear operational status is crucial.
• Emergency Stop Systems: Perfect for integration into safety circuits and emergency stop applications due to its prominent red illumination and reliable push-pull action, ensuring rapid response.
• Process Control Panels: Suited for control panels in manufacturing and processing plants, providing reliable human-machine interface for system management.
• Hazardous Environment Operations: Its Type 4/13 environmental rating makes it highly effective for use in areas exposed to dust, water jets, and oil, common in heavy industries.
• Building Automation Systems: Can be employed in building management and automation for controlling specific functions and indicating equipment status.
• Conveyor Systems: Provides dependable control for conveyor belts and material handling systems, enhancing both efficiency and safety.

Why Choose This Model?

• Unmatched Reliability in Harsh Conditions: The Type 4/13 rating guarantees consistent performance and longevity, even in the most demanding industrial environments, minimizing downtime and maintenance.
• Enhanced Operator Safety and Efficiency: The illuminated red lens provides critical visual feedback, allowing operators to quickly ascertain button status and react efficiently, significantly improving workplace safety.
• Flexible Integration Capabilities: With both N.O. and N.C. contacts and a 24V AC/DC compatibility, this button offers unparalleled versatility, making it suitable for a wide range of control system designs without requiring extensive modifications.
• Durable Construction for Longevity: Built by Allen-Bradley, a leader in industrial automation, this push-pull button is designed for exceptional robustness and a prolonged service life, offering an excellent return on investment.
• Streamlined Installation and Maintenance: Its standard 30.5mm mounting and straightforward wiring simplify installation, while its rugged design reduces the need for frequent maintenance.

Order Now

Elevate the safety, efficiency, and reliability of your industrial control systems with the Allen-Bradley 800T-FXQ24RA1 Illuminated Push-Pull Button. Its robust construction, intuitive operation, and superior environmental protection make it the ideal choice for critical applications. Don't compromise on control – secure yours today and experience the proven performance of Allen-Bradley.
