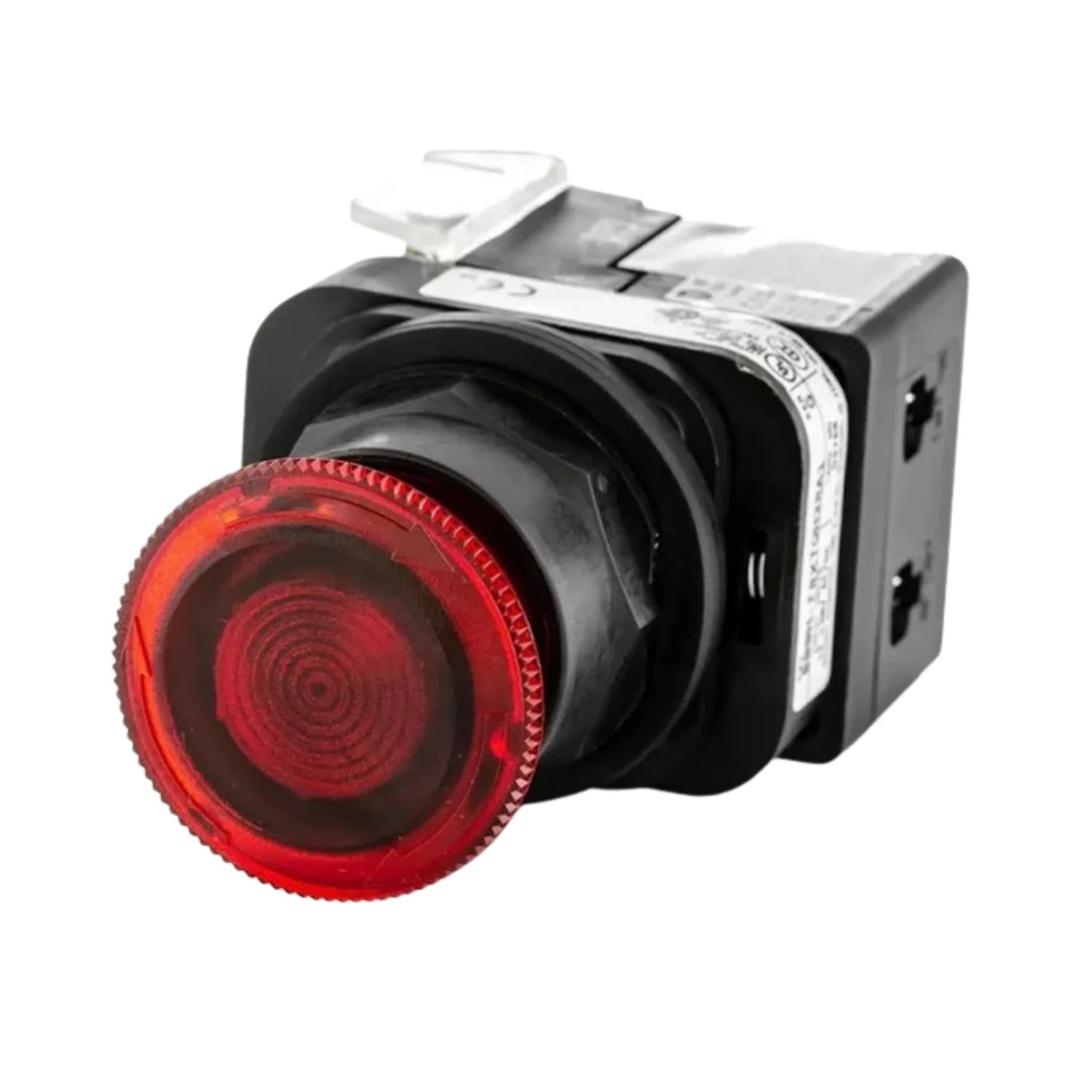

Allen-Bradley 800H-FRXTQH2RA1

Overview

The Allen-Bradley 800H-FRXTQH2RA1 is a robust 30.5mm illuminated push button, meticulously engineered for the most challenging industrial environments. Its prominent red lens paired with a standard 40mm mushroom head ensures both high visibility and effortless operation, crucial for safety and efficiency. This versatile control device incorporates a push-pull/twist mechanism, offering reliable and secure control over various industrial processes. With a formidable Type 4/4X/13 rating, this unit guarantees exceptional resistance against dust, water, and corrosion, ensuring long-lasting performance in demanding conditions. Equipped with 1 N.C.L.B. (Normally Closed Late Break) and 1 N.O. (Normally Open) contacts, and capable of operating across a wide 12-130V AC/DC voltage range, the 800H-FRXTQH2RA1 is an indispensable component for a multitude of industrial applications, providing both reliability and adaptability.

Key Features

• Durable 30.5mm Design: Built to withstand harsh industrial environments with a robust construction.
• High-Visibility Red Lens: Features a prominent red lens with a standard 40mm mushroom head for easy identification and operation.
• Versatile Push-Pull/Twist Mechanism: Provides reliable and secure control for diverse industrial applications.
• Illuminated LED Feedback: Enhances operational visibility, especially in low-light conditions, improving safety and efficiency.
• Exceptional Environmental Protection: Type 4/4X/13 rated for superior resistance against dust, water, and corrosion.
• Wide Voltage Compatibility: Operates efficiently within a 12-130V AC/DC range, suitable for various power setups.
• Reliable Contact Configuration: Equipped with 1 N.C.L.B. and 1 N.O. contacts for precise control circuit integration.

Technical Specifications

Model: 800H-FRXTQH2RA1

Mounting Size: 30.5mm

Button Type: Push-Pull/Twist

Illumination: Yes, LED

Lens Color: Red

Head Type: Standard 40mm Mushroom Head

Voltage Rating: 12-130V AC/DC

Contacts: 1 Normally Open (N.O.), 1 Normally Closed Late Break (N.C.L.B.)

Protection Rating: Type 4/4X/13 (resistant to water, dust, and corrosion)

Applications

• Industrial Machinery Control: Ideal for critical functions like emergency stops and operator control in heavy machinery.
• Automated Systems Integration: Perfect for start/stop operations and process control within sophisticated automation systems.
• Harsh Environment Deployment: Its Type 4X rating makes it suitable for outdoor installations or washdown applications where environmental resilience is paramount.
• Manufacturing and Processing Plants: Ensures quick, secure, and reliable operation in high-demand production environments.
• Water Treatment Facilities: Provides dependable control in environments exposed to moisture and chemicals.
• Food and Beverage Industry: Suitable for applications requiring frequent washdowns and resistance to corrosive agents.

Why Choose This Model?

• Unmatched Durability: Engineered by Allen-Bradley for long-term performance in the most demanding industrial settings.
• Enhanced Safety: The illuminated red lens and prominent mushroom head increase visibility and facilitate quick, safe operation.
• Optimized for Control: The push-pull/twist mechanism offers versatile and dependable control, critical for complex operations.
• Superior Environmental Resistance: With a Type 4/4X/13 rating, this push button guarantees continuous functionality in challenging conditions.
• Simplified Integration: The specified contact configuration and wide voltage range ensure seamless integration into existing and new control circuits.
• Allen-Bradley Reliability: Benefit from the renowned quality and trustworthiness of Allen-Bradley industrial automation components.

Order Now

Elevate your industrial control systems with the Allen-Bradley 800H-FRXTQH2RA1 illuminated push button. Its combination of rugged construction, high visibility, and reliable performance makes it an essential component for any demanding application. Don't compromise on safety and efficiency—choose the quality and durability that Allen-Bradley delivers. Explore our full range of Allen-Bradley Industrial Automation Products to complement your system.
