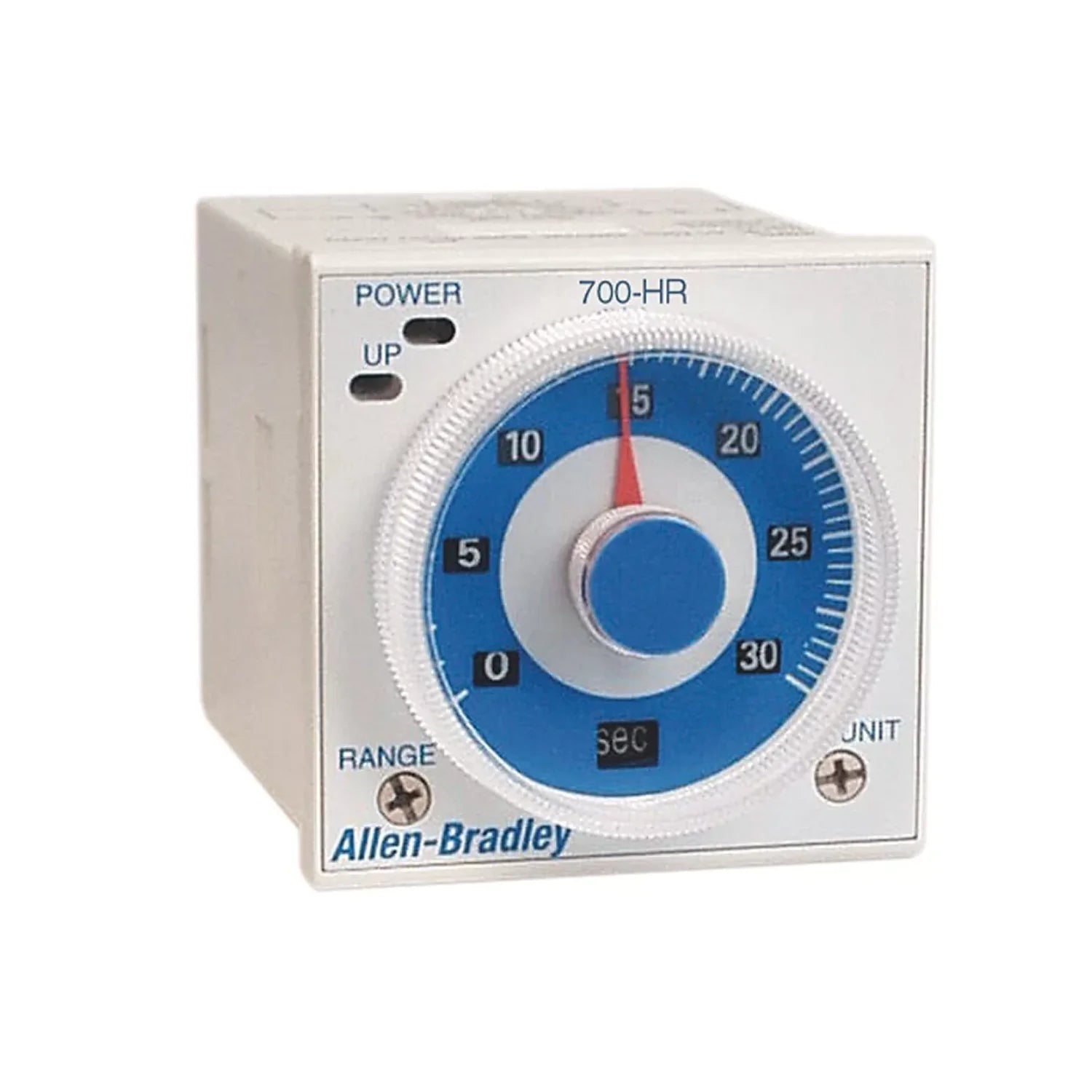

Allen-Bradley 700-HR52TU24

Overview

The Allen-Bradley 700-HR52TU24 is a robust multi-function dial timing relay engineered for unparalleled precision and adaptability in diverse industrial automation environments. This high-performance device seamlessly integrates into complex control systems, offering six distinct timing functions and dual DPDT timed contacts to manage a wide array of operational sequences. Its exceptional adjustability, spanning from a rapid 0.05 seconds to an extensive 300 hours, ensures meticulous control over critical processes. Designed for straightforward integration, the relay operates efficiently across a broad voltage spectrum of 24-48V AC (50/60Hz) or 12-48V DC, making it a highly versatile and dependable solution for enhancing productivity and reliability in demanding applications.

Engineered with industrial durability in mind, the 700-HR52TU24 not only simplifies installation with its "no voltage inputs" feature but also guarantees consistent performance. Whether you're sequencing conveyor systems, managing motor operations, or controlling intricate manufacturing processes, this Allen-Bradley timing relay delivers the accuracy and flexibility required for optimal system performance. Its general-purpose design ensures suitability for a vast range of industrial settings, providing a cost-effective and efficient means to achieve precise timed control.

Key Features

• Multi-Function Versatility (6 Timing Modes): Adaptable to a wide range of industrial timing applications, providing comprehensive control options for various operational requirements.
• Dual DPDT Timed Contacts: Offers enhanced switching capabilities, allowing for the independent control of two separate circuits simultaneously for increased operational flexibility.
• Expansive Adjustable Timing Range (0.05 seconds to 300 hours): Provides exceptional precision and granular control over time delays, accommodating both short, critical intervals and extended operational cycles.
• Simplified "No Voltage Inputs" Design: Streamlines installation and integration into existing control circuits, reducing complexity and potential wiring errors.
• Broad Voltage Compatibility (24-48V AC / 12-48V DC): Ensures flexible operation across various power supplies, making it suitable for diverse global industrial environments.
• Robust General Purpose Industrial Design: Constructed for durability and reliability, guaranteeing consistent performance in challenging industrial automation applications.

Technical Specifications

• Model: 700-HR52TU24
• Relay Type: General Purpose Dial Timing Relay
• Number of Contacts: 2 Timed (DPDT)
• Timing Range: 0.05 seconds to 300 hours
• Operating Voltage: 24-48V AC 50/60Hz / 12-48V DC
• Timing Functions: 6 Multi-Mode Settings
• Input Type: No Voltage Inputs

Applications

• Precision Industrial Automation & Machine Control: Essential for orchestrating complex sequences and ensuring synchronized operations in automated machinery.
• Conveyor System Sequencing & Delay Timing: Optimizes material flow and prevents bottlenecks by precisely controlling the movement and timing of conveyor segments.
• Advanced Process Control in Manufacturing: Critical for managing batch processes, chemical reactions, and other time-sensitive manufacturing stages to maintain product quality.
• Motor Start & Stop Timing Applications: Safeguards motors and machinery by providing controlled ramp-up and cool-down periods, extending equipment lifespan.
• Lighting Control Systems: Automates the activation and deactivation of industrial lighting based on predefined schedules or operational events.
• Security System Delays: Implements time delays for alarms, access controls, or surveillance activation in industrial security setups.

Why Choose This Model?

• Unmatched Precision and Control: The extensive adjustable timing range liberates your applications from rigid constraints, offering unparalleled accuracy from milliseconds to months.
• Exceptional Versatility for Any Task: With six distinct timing functions, this single relay can adapt to a multitude of complex control scenarios, reducing the need for multiple specialized devices.
• Seamless Integration and Installation: Engineered with "no voltage inputs" and broad voltage compatibility, the 700-HR52TU24 simplifies wiring and reduces setup time, minimizing operational downtime.
• Built for Industrial Demands: As an Allen-Bradley product, it embodies robust construction and unwavering reliability, guaranteeing consistent performance even in the most challenging industrial environments.
• Optimize Operational Efficiency: By enabling precise and dependable timing control, this relay helps prevent errors, streamline processes, and ultimately enhance the overall efficiency of your automated systems.
• Future-Proof Your Automation: Its versatile design ensures it remains a vital component as your automation needs evolve, offering flexibility and scalability for future system expansions.

Order Now

Equip your industrial systems with the Allen-Bradley 700-HR52TU24 Multi-Function Dial Timing Relay and experience the pinnacle of precision and reliability. Enhance your automation capabilities and ensure seamless operational control. Contact us today to secure this essential component for your next project!
