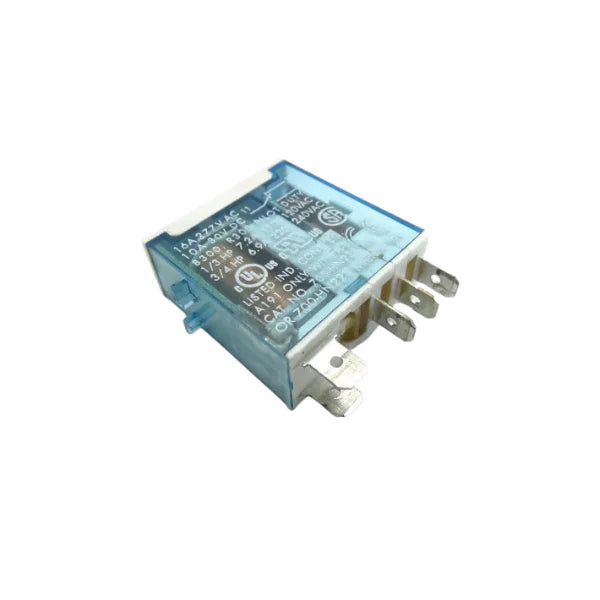

Allen-Bradley 700-HK36Z24-4

Overview

The Allen-Bradley 700-HK36Z24-4 General Purpose Slim Line Relay is engineered to deliver exceptional performance and reliability for diverse electrical control applications within industrial environments. This robust and versatile relay combines a powerful 16A standard contact with a Single Pole Double Throw (SPDT) configuration, ensuring flexible control for a wide array of tasks. Designed for low-voltage operations, its 24V DC coil enhances safety and energy efficiency. A distinctive feature is the integrated pilot light, which provides instant visual confirmation of the relay's operational status, significantly improving diagnostics and operational oversight. Its remarkably slim design is a major advantage, allowing for maximum space utilization in crowded control panels, making it the ideal solution for modern, compact automation systems where efficiency and footprint are critical considerations.

Key Features

• High-Capacity 16A SPDT Contact: Provides robust and reliable switching for a wide range of current levels and versatile control applications.
• Efficient 24V DC Coil: Ensures low-voltage operation for enhanced safety and energy efficiency in industrial setups.
• Integrated Pilot Light: Offers clear, real-time visual indication of the relay's operational status, simplifying troubleshooting and monitoring.
• Ultra-Slim Design: Maximizes space utilization within control panels, making it perfect for compact and high-density automation systems.
• Durable & Certified Construction: Built for long-lasting performance in demanding industrial conditions, backed by UL, CSA, and CE certifications for assured safety and compliance.
• Simplified Integration: Designed for standard mounting, facilitating quick and easy installation into existing or new control systems.
• Versatile General-Purpose Functionality: Ideal for a broad spectrum of industrial automation, motor control, and process control applications.

Technical Specifications

Model: 700-HK36Z24-4

Contact Configuration: SPDT (Single Pole Double Throw)

Rated Current: 16A

Coil Voltage: 24V DC

Pilot Light: Integrated for status indication

Type: General Purpose, Slim Line Relay

Mounting: Standard mounting options

Dimensions: Slim profile for space-saving installations

Certifications: UL, CSA, CE (and other relevant industry standards)

Enclosure: Open type (for compact and accessible design)

Applications

• Industrial Automation Systems: Essential for precise control of electrical circuits in advanced manufacturing and automated processes.
• Control Panel Optimization: Perfect for space-constrained control panels requiring reliable switching and visual status feedback.
• Motor Control Circuits: Effectively manages the operation of various motors and other high-load equipment.
• HVAC System Integration: Enhances the efficiency and reliability of heating, ventilation, and air conditioning control circuits.
• Process Control Operations: Provides dependable switching for critical functions within diverse industrial process control applications.
• Building Management Systems: Ideal for controlling lighting, security, and other integrated building functions.

Why Choose This Model?

• Unmatched Space Efficiency: Its slim design is specifically engineered for modern control panels, allowing you to maximize valuable space without compromising performance.
• Superior Reliability and Durability: As an Allen-Bradley product, the 700-HK36Z24-4 is built to withstand rigorous industrial conditions, ensuring consistent and long-lasting operation.
• Enhanced Operational Visibility: The integrated pilot light offers immediate visual feedback, significantly reducing diagnostic time and improving overall system monitoring.
• Versatile & Compliant: With its SPDT configuration, 16A rating, and multiple certifications, this relay provides a flexible, safe, and compliant solution for a vast array of industrial applications.
• Optimized for Efficiency: The 24V DC coil not only ensures safe low-voltage operation but also contributes to energy efficiency across your systems.

Order Now

Elevate the performance and efficiency of your industrial control systems with the Allen-Bradley 700-HK36Z24-4 General Purpose Slim Line Relay. Its robust design, space-saving profile, and integrated features make it an indispensable component for any demanding application. Invest in reliability, precision, and clear operational insight. Purchase your 700-HK36Z24-4 relay today and experience the Allen-Bradley difference!
