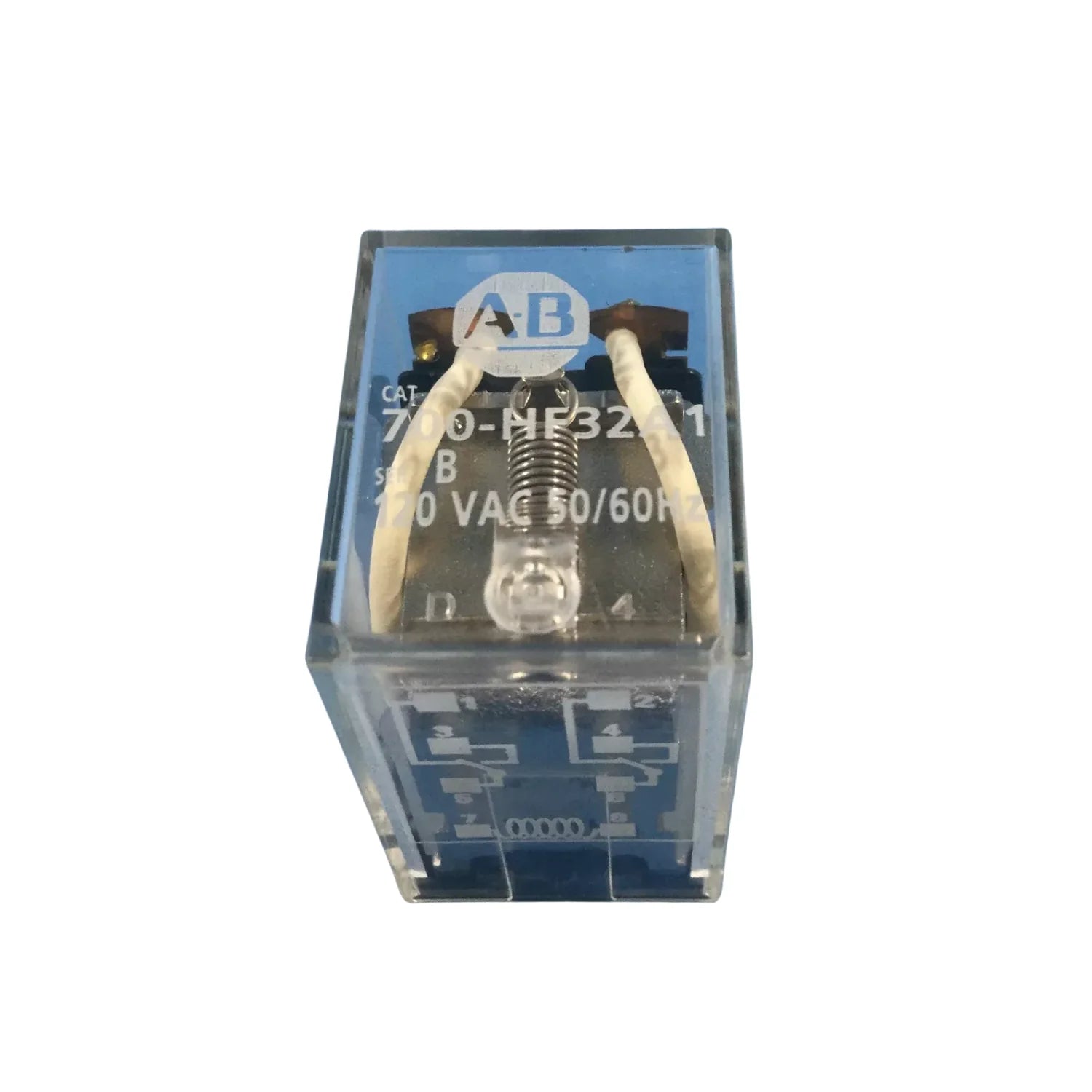

Allen-Bradley 700-HF32A1

Overview

The Allen-Bradley 700-HF32A1 is a high-performance general purpose miniature relay engineered for demanding industrial and commercial applications. This compact and robust electromechanical switching device provides exceptional reliability and versatility within control circuits. With its Double Pole Double Throw (DPDT) configuration and a substantial 10A contact rating, it's ideally suited for managing moderate power loads with precision. The integrated 120V AC 50/60Hz coil ensures seamless compatibility with standard power supplies, making integration straightforward into existing systems. Its space-saving miniature square base design facilitates quick and efficient installation within electrical panels, contributing to streamlined industrial automation and motor control systems. Experience dependable operation and superior control with this essential component from Allen-Bradley.

Key Features

• Robust 10A Contact Rating: Capable of reliably switching moderate electrical loads, enhancing system efficiency and safety.
• Versatile DPDT Configuration: Offers Double Pole Double Throw switching, providing flexible control options for complex circuits.
• Dependable 120V AC 50/60Hz Coil: Ensures consistent performance and broad compatibility with common industrial power sources.
• Compact Miniature Square Base: Designed for efficient use of space, allowing for easy installation and integration into crowded panels.
• Electromechanical Durability: Engineered for long operational life and consistent performance in challenging environments.
• Wide Application Suitability: Ideal for a diverse range of uses, from industrial automation to HVAC and lighting control.
• Genuine Allen-Bradley Quality: Benefit from the trusted reliability and superior engineering synonymous with the Allen-Bradley brand.

Technical Specifications

• Model: 700-HF32A1
• Relay Type: General Purpose Miniature Electromechanical Relay
• Contact Rating: 10 Amperes
• Contact Configuration: DPDT (Double Pole Double Throw)
• Coil Voltage: 120V AC, 50/60Hz
• Mounting Type: Square Base, Panel Mountable
• Brand: Allen-Bradley

Applications

• Industrial Automation Systems: Essential for logical control and switching functions in automated manufacturing and process control.
• Electrical Panels and Motor Control: Provides reliable switching for motors, contactors, and other control circuit components.
• General-Purpose Switching: Adaptable for a wide array of switching needs across various commercial and industrial setups.
• HVAC Systems: Used for controlling fan motors, compressors, and overall system sequencing.
• Lighting Control Systems: Facilitates efficient and automated control of lighting circuits in commercial buildings and industrial facilities.
• Security and Access Control: Integration into systems requiring reliable electrical isolation and switching for locks, alarms, and sensors.

Why Choose This Model?

• Unmatched Reliability: Built with Allen-Bradley's renowned quality, ensuring consistent and long-lasting performance in critical applications.
• Space-Saving Design: Its miniature square base allows for high-density installations, optimizing panel space and reducing overall footprint.
• Versatile Functionality: The DPDT configuration offers expansive control possibilities, making it adaptable to diverse circuit requirements.
• Ease of Integration: Standard coil voltage and compact form factor ensure straightforward incorporation into new or existing electrical systems.
• Industrial Durability: Constructed to withstand the rigors of industrial environments, providing a robust solution for continuous operation.
• Cost-Effective Solution: A durable and reliable component reduces maintenance frequency and overall operational costs over its lifespan.

Order Now

Enhance the reliability and efficiency of your control systems with the Allen-Bradley 700-HF32A1 Miniature General Purpose Relay. Experience the peace of mind that comes with using a high-quality, trusted industrial component. Add to cart today and optimize your operations!
