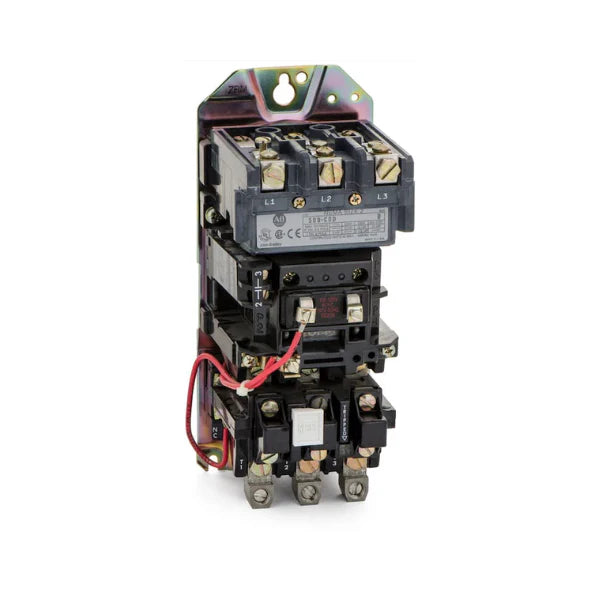

Allen-Bradley 509-COD

Overview

The Allen-Bradley 509-COD Full Voltage Non-Reversing Starter is engineered for robust and dependable motor control in a wide array of industrial applications. This NEMA Size 2 starter is specifically designed for 115-120V 60Hz systems, making it an ideal choice for operations requiring straightforward, full-voltage motor starting without reversing capabilities. Its open-type design offers unparalleled versatility, allowing for seamless integration into custom control panels or environments where a dedicated enclosure is not necessary. At its core, the 509-COD model incorporates a sophisticated Eutectic Alloy Overload Relay, providing superior thermal protection against motor overcurrents and ensuring the longevity and optimal performance of your valuable equipment. This starter represents a perfect blend of Allen-Bradley's renowned quality, durability, and precise motor protection, making it a cornerstone for efficient industrial processes.

Key Features

• Full Voltage Non-Reversing Control: Delivers reliable and simple operation for motors that do not require directional change, ensuring consistent performance.
• Advanced Eutectic Alloy Overload Relay: Provides precise and dependable thermal protection against overcurrent conditions, significantly extending motor life.
• NEMA Size 2 Rating: Adheres to industry standards for robust construction and performance, capable of handling demanding industrial loads.
• Versatile Open Type Design: Offers flexibility for integration into existing control systems or custom enclosures, adapting to diverse installation needs.
• Wide Voltage Compatibility (115-120V 60Hz): Ensures broad applicability across various electrical infrastructures and industrial setups.
• Enhanced Motor Protection: Safeguards motors from potential damage due to sustained overloads, reducing downtime and maintenance costs.
• Durable Allen-Bradley Construction: Built with high-quality components for long-term reliability and performance in harsh industrial environments.

Technical Specifications

• Product Type: Full Voltage Non-Reversing Starter
• Brand: Allen-Bradley
• Model: 509-COD
• NEMA Size: Size 2
• Voltage Rating: 115-120V AC, 60Hz
• Overload Protection: Eutectic Alloy Overload Relay
• Enclosure Type: Open Type (No Enclosure)
• Application Suitability: Standard motor control and protection
• Mounting Options: Designed for Panel or DIN Rail Mounting
• Operational Control: Non-reversing operation

Applications

• Industrial Motor Control: Ideal for starting and protecting motors in manufacturing plants, processing facilities, and general industrial machinery.
• HVAC System Integration: Effectively controls motors within heating, ventilation, and air conditioning systems, ensuring reliable operation.
• Pumping Systems: Provides essential control and overload protection for various pump applications in water treatment, irrigation, and fluid transfer.
• Conveyor Belt Systems: Ensures smooth and protected operation of conveyor motors in logistics, material handling, and assembly lines.
• Fan and Blower Operations: Manages and protects motors powering industrial fans and blowers for ventilation and air circulation.
• Machine Tooling: Suitable for integration into a wide range of machine tools requiring reliable motor starting and protection.

Why Choose This Model?

• Unmatched Motor Protection: The Eutectic Alloy Overload Relay provides precise and robust thermal protection, significantly extending the lifespan of your motors and reducing the risk of costly failures.
• Industrial Reliability: As an Allen-Bradley product, the 509-COD is built to NEMA Size 2 standards, ensuring exceptional durability and consistent performance even in the most demanding industrial settings.
• Flexibility in Installation: Its open-type design and versatile voltage compatibility allow for easy integration into custom control panels and a broad spectrum of industrial electrical systems, offering significant design freedom.
• Optimized for Efficiency: By providing reliable full voltage non-reversing control, this starter streamlines motor operations, contributing to overall system efficiency and reducing energy waste.
• Peace of Mind: Investing in the Allen-Bradley 509-COD means equipping your operations with a component renowned for its quality, backed by a legacy of industrial excellence, ensuring long-term operational stability.

Order Now

Elevate your motor control and protection systems with the Allen-Bradley 509-COD Full Voltage Non-Reversing Starter. Designed for superior reliability and performance, this essential component is ready to integrate seamlessly into your industrial applications. For more options and a complete range of Allen-Bradley industrial automation products, including controllers, drives, and accessories, explore our full collection. Ensure the enduring efficiency and safety of your operations by acquiring this robust starter today.
