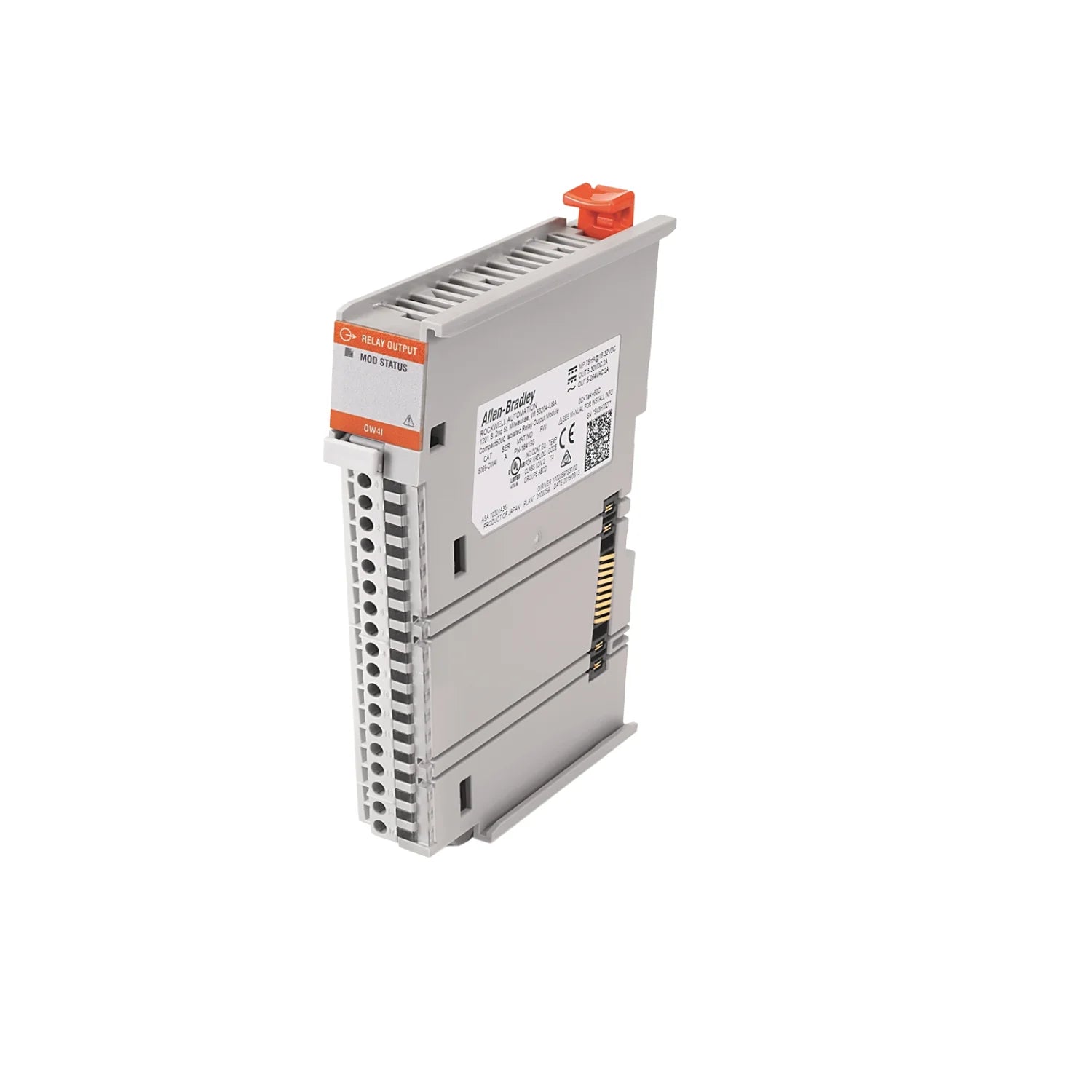

Allen-Bradley 5069-OW4I

Overview

Unlock superior control and flexibility in your industrial automation systems with the Allen-Bradley 5069-OW4I Compact 5000 Isolated Relay Output Module. Engineered for exceptional performance and reliability, this module is a core component within the Compact 5000 I/O family, delivering precise control over a wide array of applications. Its innovative design prioritizes individual channel isolation, ensuring enhanced system stability and adaptability across varying voltage demands, both AC and DC. Optimally suited for integration with CompactLogix™ and Compact GuardLogix® controllers, the 5069-OW4I is the intelligent choice for demanding industrial environments.

Key Features

• Four Individually Isolated Relay Outputs: Each of the four Form A (normally open) relay outputs operates independently, guaranteeing maximum operational flexibility and preventing crosstalk or interference between channels, crucial for critical control systems.
• Broad Voltage Compatibility: Offering unparalleled versatility, this module seamlessly supports a wide operating voltage range from 5 to 125V DC and 5 to 264V AC, making it adaptable to nearly any industrial control scenario.
• Space-Saving Compact Design: With an ultra-slim width of just 22mm, the 5069-OW4I facilitates high-density mounting within control panels, optimizing valuable enclosure space and enhancing overall system compactness.
• Rapid Backplane Communication: Experience lightning-fast data exchange facilitated by a high-speed backplane communication system, boasting an impressive packet transfer rate of just 4.4 µs. This ensures real-time responsiveness for critical control tasks.
• Enhanced Control Functionality: Beyond basic switching, this module integrates advanced features such as simple counting, sophisticated event handling, precise scheduled outputs, and accurate time stamping, empowering more intelligent and responsive automation strategies.
• Robust Current Handling: Each output channel is rated for a resistive current of up to 2 A, providing ample capacity for driving a variety of industrial loads securely and efficiently.

Technical Specifications

• Model: Allen-Bradley 5069-OW4I
• Output Channels: 4 (Form A, normally open)
• Voltage Range (DC): 5…125V DC
• Voltage Range (AC): 5…264V AC
• Current Rating: 2 A resistive per channel
• Maximum Power Dissipation: 2.3 W
• Maximum Thermal Dissipation: 7.85 BTU/hr
• Isolation Voltage: 250V (continuous), Basic Insulation Type
• Module Dimensions (Width): 22mm
• Module Dimensions (Height): 5.207 cm
• Module Dimensions (Length): 18.415 cm
• Weight: 0.243 kg

Applications

• Precision Industrial Automation: Execute exact control over diverse machinery, robotics, and complex processes, ensuring optimal operational efficiency and safety in manufacturing and production lines.
• Advanced Manufacturing Systems: Streamline and automate critical operations within assembly plants, production facilities, and material handling systems, leading to increased productivity and reduced downtime.
• Comprehensive Building Management: Integrate seamlessly into building automation systems to manage sophisticated HVAC systems, intelligent lighting controls, advanced security setups, and access control, enhancing comfort, safety, and energy efficiency.
• Efficient Energy Management: Deploy in power distribution networks, renewable energy installations, and smart grid applications to monitor, control, and optimize energy flow and consumption, contributing to sustainable operations.
• Process Control Systems: Ideal for applications requiring precise and reliable switching for valves, pumps, motors, and other actuators in various process industries.

Why Choose This Model?

• Unmatched Versatility: The ability to handle both AC and DC loads across a broad voltage spectrum makes the 5069-OW4I exceptionally adaptable, reducing inventory complexity and expanding application possibilities.
• Optimal Space Efficiency: Its slim 22mm profile is a significant advantage in compact control panels, allowing engineers to maximize component density without compromising performance or access.
• Guaranteed Reliability: Built with Allen-Bradley's renowned industrial-grade quality, this module ensures dependable operation and long-term stability even in the most challenging industrial environments, minimizing unexpected downtime.
• Seamless System Integration: Designed for effortless integration with Allen-Bradley's CompactLogix™ 5380, Compact GuardLogix® 5380, and CompactLogix 5480 controller systems, it simplifies setup and configuration, accelerating deployment times.
• Enhanced Control Capabilities: With advanced functionalities like event handling and scheduled outputs, this module provides more than just basic switching, enabling smarter, more responsive, and more efficient automation solutions.

Order Now

Enhance your control systems today with the Allen-Bradley 5069-OW4I Compact 5000 Isolated Relay Output Module. Explore its full potential and integrate it into your next industrial project for superior performance. Visit our CompactLogix Controllers main category to discover other complementary models and specifications. For a comprehensive overview of all Allen-Bradley industrial automation solutions, including controllers, drives, motors, HMIs, and accessories, browse our Allen-Bradley Industrial Automation Products master category.
