Allen-Bradley 5069-OF8

Overview

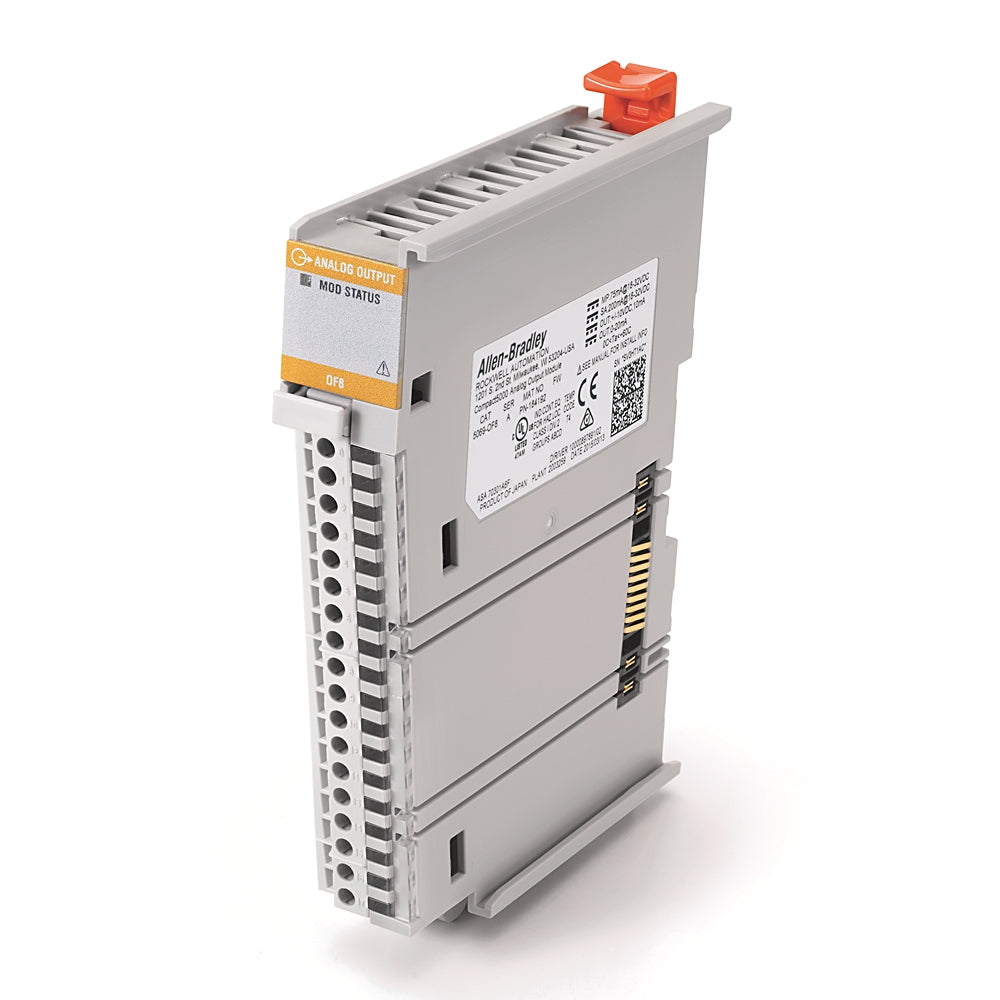

The Allen-Bradley 5069-OF8 is a high-performance 8-channel analog output module, meticulously engineered to provide precise and versatile control within your industrial automation infrastructure. As a core component of the CompactLogix 5380 and 5480 systems, this module delivers configurable voltage or current signals, making it an indispensable asset for applications demanding superior analog output capabilities. Its robust design, coupled with high resolution and advanced diagnostic features, ensures unwavering reliability and operational excellence even in the most challenging industrial environments.

Seamlessly integrating with CompactLogix controllers, the 5069-OF8 empowers engineers to achieve scalable and highly responsive analog output solutions. It's the ideal choice for elevating the precision and efficiency of machine control, sophisticated motion systems, and critical process automation applications worldwide.

Key Features

• 8 Independently Configurable Analog Output Channels: Offers ultimate flexibility with individual settings for current or voltage output.
• Broad Output Range Versatility: Supports multiple options including ±10V, 0–10V, 0–20 mA, and 4–20 mA to suit diverse control requirements.
• Exceptional Resolution & Accuracy: Ensures the generation of highly precise analog signals with a 15-bit resolution and ±0.1% of full scale (typical) accuracy.
• Integrated Diagnostic Capabilities: Continuously monitors channel status and promptly detects faults, enhancing system uptime and reliability.
• Compact & Scalable Design: Optimally designed for efficient space utilization within modern control panel layouts.
• Removable Terminal Block: Facilitates quicker and safer wiring, reducing maintenance time and improving operational efficiency.
• Full Compatibility: Engineered to integrate perfectly with CompactLogix 5380/5480 Systems for consistent performance.

Technical Specifications

• Catalog Number: 5069-OF8
• Number of Outputs: 8 (voltage or current)
• Output Ranges:
  • Voltage: ±10V, 0–10V
  • Current: 0–20 mA, 4–20 mA
• Resolution: 15 bits
• Accuracy: ±0.1% of full scale (typical)
• Update Rate: 1 ms per channel
• Isolation Voltage: 50V continuous (basic insulation)
• Backplane Current: 260 mA @ 3.3V DC, 50 mA @ 24V DC
• Operating Temperature: -20°C to +60°C
• Dimensions: 118 x 35 x 106 mm (H x W x D)
• Weight: Approximately 220 g
• Mounting Type: DIN rail

Applications

• Advanced Process Automation: Reliably controls actuators, variable frequency drives, and proportional valves for intricate industrial processes.
• Precision Motion Systems: Provides the critical analog signals required for sophisticated motion controllers in robotics and automated machinery.
• OEM & Industrial Equipment Integration: Offers a highly flexible analog output solution for a vast array of versatile OEM applications.
• High-Speed Machine Control: Ideal for applications demanding rapid and highly accurate analog output for optimal machine performance.
• Energy Management & HVAC Systems: Can be utilized for precise control of ventilation, heating, and cooling systems in industrial facilities.
• Test & Measurement Systems: Provides accurate analog outputs for simulation and calibration in various testing environments.

Why Choose This Model?

• Expanded Channel Capacity: Offers twice the output channels compared to the 5069-OF4, providing greater capacity without compromising reliability.
• Unmatched Flexibility: Supports a wide array of output types, catering to the diverse needs of various control systems and industrial setups.
• Robust Industrial Design: Built to withstand demanding industrial environments, ensuring long-term performance and durability.
• Seamless Integration: Designed for effortless compatibility with CompactLogix 5380/5480 systems, simplifying installation and configuration.
• Global Availability & Support: Ready for international shipping with comprehensive technical support and available accessories.
• Optimized for Analog-Intensive Environments: The perfect solution for operations requiring a high density of precise analog output signals.

Order Now

Elevate your industrial control systems with the Allen-Bradley 5069-OF8. This essential analog output module is currently in stock and available for immediate international shipping. Enhance your automation capabilities today with reliable performance and unparalleled precision. Browse our comprehensive range of accessories and take advantage of our expert technical support. For a full exploration of compatible models and specifications, return to our CompactLogix Controllers main category. Additionally, discover our complete portfolio of industrial automation solutions by visiting the Allen-Bradley Industrial Automation Products master category, featuring controllers, drives, motors, HMIs, and more.
