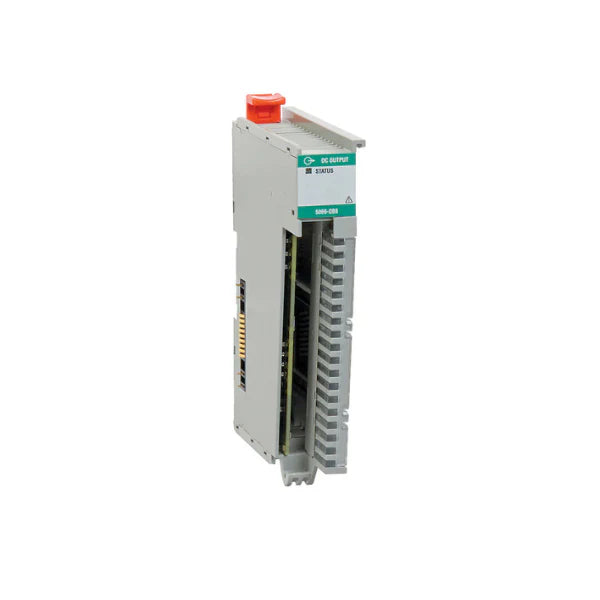

Allen-Bradley 5069-OB8

Overview

The Allen-Bradley 5069-OB8 is a high-performance 8-point compact digital output module meticulously engineered to seamlessly integrate with your CompactLogix 5380 and 5480 controllers. This robust module delivers precise and reliable control for a wide array of industrial automation applications. With its 8 sourcing (current-sourcing) outputs operating at 24V DC, the 5069-OB8 is an ideal choice for driving various industrial actuators, relays, and indicators with unparalleled efficiency and accuracy. Its compact design optimizes cabinet space while providing advanced features like rapid response times and comprehensive built-in diagnostics, ensuring optimal system performance and simplified troubleshooting. Experience enhanced productivity and streamlined operations with this essential component of the 5069 Compact I/O family.

Key Features

• 8 Sourcing Digital Output Channels: Provides reliable control for multiple devices with 24V DC sourcing outputs, ensuring compatibility with a broad range of industrial equipment.
• High-Speed Operation: Boasts an impressive response time of less than 0.1 milliseconds, making it perfectly suited for time-critical applications requiring immediate and accurate output transitions.
• Integrated Diagnostics: Equipped with built-in status LEDs and sophisticated fault detection capabilities, enabling quick identification and resolution of operational issues, thus minimizing downtime.
• Space-Saving Compact Design: Its optimized footprint of 118 x 22 x 106 mm (H x W x D) allows for efficient use of panel space, making it ideal for installations with limited room.
• Removable Terminal Block: Facilitates swift and hassle-free installation and maintenance, significantly reducing wiring time and simplifying component replacement.
• Robust Protection Mechanisms: Features advanced electronic short-circuit and overload protection for each output, safeguarding connected devices and the module itself from potential damage.
• Seamless CompactLogix Integration: Specifically designed for effortless integration with Allen-Bradley CompactLogix 5380 and 5480 controllers, ensuring consistent performance and simplified system architecture.

Technical Specifications

• Catalog Number: 5069-OB8
• Number of Outputs: 8 (sourcing type)
• Output Voltage Range: 10–30V DC (Nominal 24V DC)
• Output Current per Channel: Up to 2.0 A
• Total Output Current per Module: 8.0 A maximum
• Isolation Voltage: 50V (continuous), basic insulation
• Response Time: < 0.1 ms typical
• Backplane Current Draw: 190 mA @ 3.3V DC, 50 mA @ 24V DC
• Protection: Electronic protection for short-circuit and overload
• Operating Temperature: -20 to 60°C (-4 to 140°F)
• Dimensions: 118 x 22 x 106 mm (H x W x D)
• Mounting Type: DIN rail
• Weight: Approximately 200 g

Applications

• Advanced Motion Control Systems: Provides the fast-acting and precise output control necessary for complex motion sequences and robotic applications, ensuring smooth and accurate movements.
• High-Speed Packaging Equipment: Delivers reliable and rapid switching for actuators, solenoids, and other components in automated packaging lines, optimizing throughput and efficiency.
• Material Handling and Logistics: Essential for dependable output switching in conveyor systems, sorting machines, and automated storage and retrieval systems, enhancing operational reliability.
• Original Equipment Manufacturers (OEMs): An excellent choice for OEMs seeking a compact, high-performance, and reliable digital output solution for integration into their machinery and systems.
• Process Control and Discrete Manufacturing: Facilitates accurate control of various valves, indicators, and alarms in diverse manufacturing environments, contributing to consistent product quality.

Why Choose This Model?

• Unmatched Reliability: Built with Allen-Bradley's renowned quality and robust construction, ensuring long-term operational stability and minimal maintenance requirements in demanding industrial settings.
• Enhanced System Responsiveness: The ultra-fast response time significantly improves the overall performance of your automation system, crucial for applications where timing is critical.
• Simplified System Integration: Designed for seamless compatibility with CompactLogix 5380 and 5480 controllers, reducing configuration complexity and accelerating deployment.
• Optimized Space Utilization: Its compact form factor is perfect for control cabinets with limited space, allowing for more dense and efficient system designs.
• Comprehensive Protection: Integrated overload and short-circuit protection features provide peace of mind by safeguarding your investment in connected equipment and reducing the risk of system failures.
• Global Availability and Support: Backed by Allen-Bradley's extensive global network, ensuring access to technical support and resources whenever and wherever you need them.
